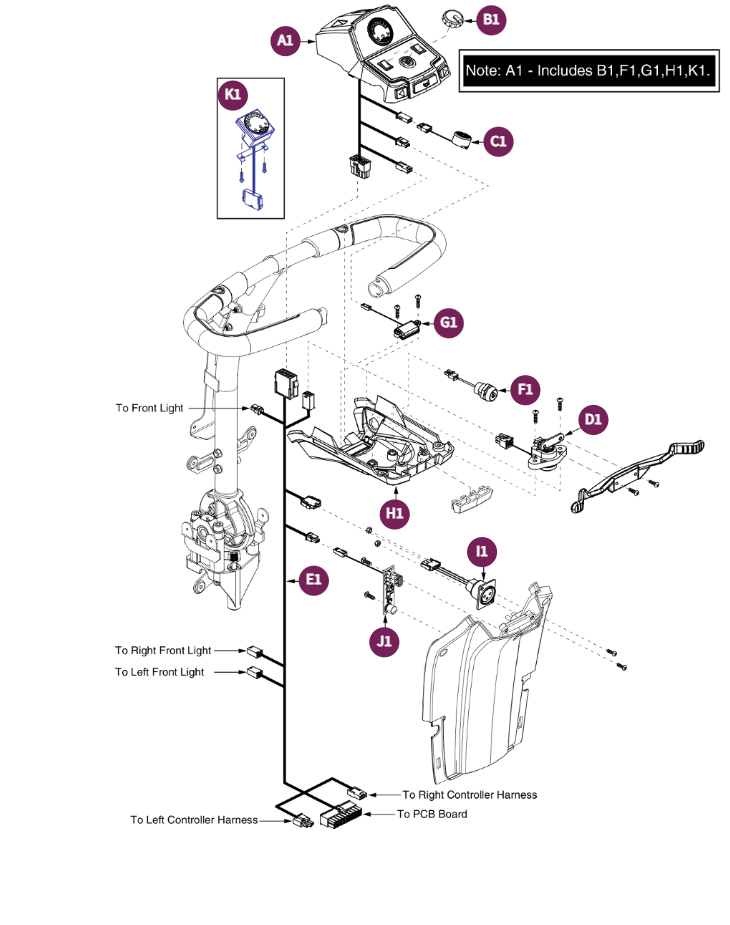

Console Assy

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # B1	Description SPEED KNOB ASSEMBLY-E	Part #: DGN1801905	Replaces:	Price Reg. Price: Starting At: $4.39
Ref # C1	Description ELECTRONIC,HARNESS, HORN,H-9555-018-AY	Part #: DWR9555H018	Replaces:	Price Reg. Price: Starting At: $6.35
Ref # H1	Description TILLER POD, BOTTOM	Part #: DGN1800887	Replaces:	Price Reg. Price: Starting At: $9.58
Ref # I1	Description ELECTRONIC,HARNESS,OFF-BOARD CHARGER,XLR CONNECTOR,H-9555-033-S	Part #: DWR9555H033	Replaces:	Price Reg. Price: Starting At: $17.11
Ref # G1	Description PUDDLE LIGHT,24V-G	Part #: ELE1801311	Replaces:	Price Reg. Price: Starting At: $23.35
Ref # F1	Description KEY SWITCH ASSEMBLY-C	Part #: ELE1703334	Replaces:	Price Reg. Price: Starting At: $29.18
Ref # K1	Description LED VOLTMETER-M	Part #: DGN142447	Replaces:	Price Reg. Price: Starting At: $50.98
Ref # E1	Description TILLER HARNESS,ZT-10	Part #: ELE1713903	Replaces:	Price Reg. Price: Starting At: $54.22
Ref # J1	Description ELECTRONIC ASSY SCOOTER CHARGING PORT W/HARNESSING-E	Part #: ELE146853	Replaces:	Price Reg. Price: Starting At: $72.13
Ref # D1	Description FRAME,ASSY,THROTTLE POT W/ CONTROL LEVER,VICTORY ZT 10	Part #: MEC1804173	Replaces:	Price Reg. Price: Starting At: $119.19
Ref # A1	Description CONSOLE,ASSY,TOP,VICTORY ZT 10	Part #: ELE1804172	Replaces:	Price Reg. Price: Starting At: $317.83
