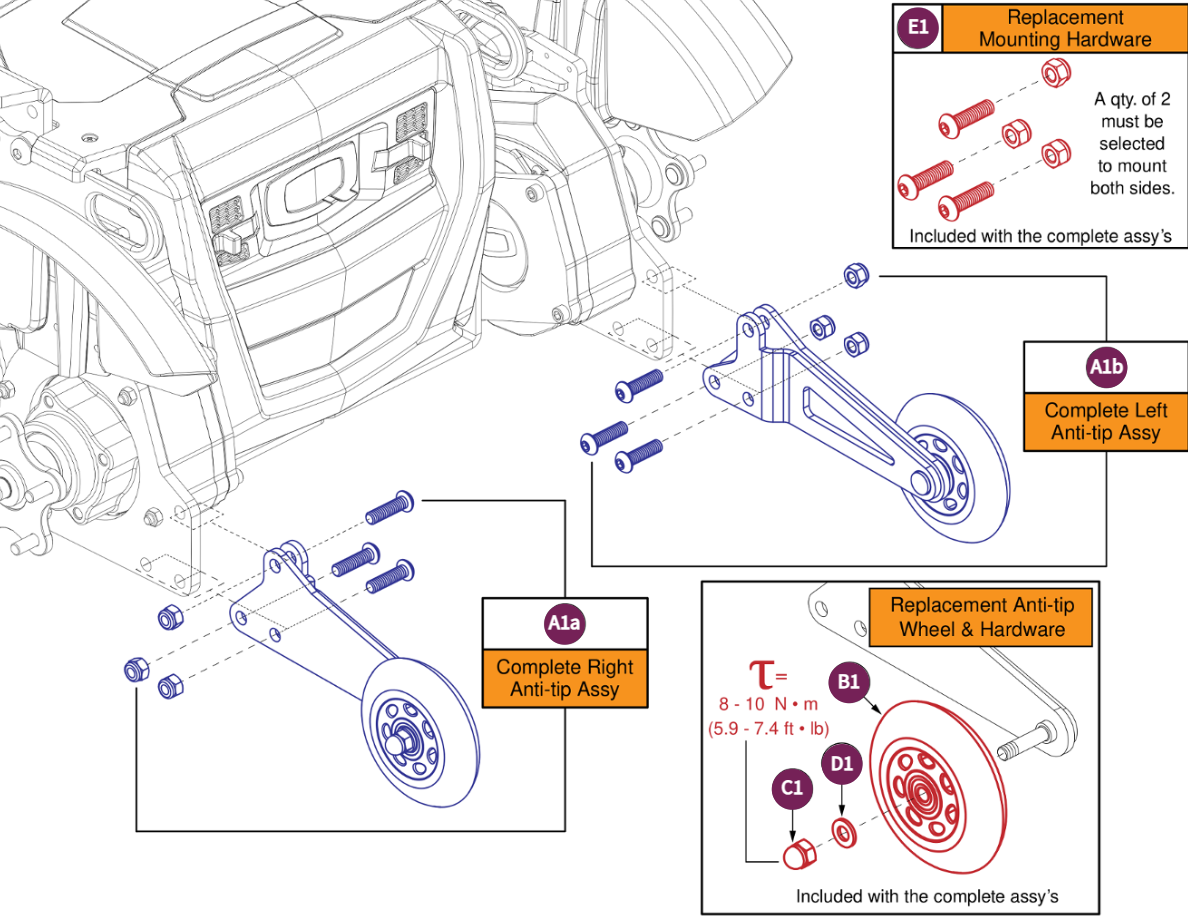

Anti-tip Assembly, 4Front2

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # C1	Description NUT, ACORN, M8X1.25, DIN 1587, CL 6, BZ	Part #: NUTACRN1012	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D1	Description WASHER, FLAT, 8.4 ID X 16 OD X 1.6 THK, ISO 7089-8-200 HV, BZ-D	Part #: HDW138262	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # B1	Description WHEEL,ASSY,ANTI-TIP,100MM OD X 23.76MM TH,W/BEARINGS & SPACER,C-1505-032	Part #: WHLASMB1523	Replaces:	Price Reg. Price: Starting At: $22.15
Ref # E1	Description HARDWARE,ASSY,ANTI-TIP SECUREMENT,QUANTUM 4FRONT	Part #: HDW1703666	Replaces:	Price Reg. Price: Starting At: $35.80
Ref # A1b	Description ANTI-TIP MOUNT ASSEMBLY, LEFT	Part #: MEC1705019	Replaces:	Price Reg. Price: Starting At: $60.91
Ref # A1a	Description ANTI-TIP MOUNT ASSEMBLY, RIGHT	Part #: MEC1705020	Replaces:	Price Reg. Price: Starting At: $60.91

gift guide

Quick & Easy Checkout

Anti-tip Assembly, 4Front2

NUT, ACORN, M8X1.25, DIN 1587, CL 6, BZ

WASHER, FLAT, 8.4 ID X 16 OD X 1.6 THK, ISO 7089-8-200 HV, BZ-D

WHEEL,ASSY,ANTI-TIP,100MM OD X 23.76MM TH,W/BEARINGS & SPACER,C-1505-032

HARDWARE,ASSY,ANTI-TIP SECUREMENT,QUANTUM 4FRONT

ANTI-TIP MOUNT ASSEMBLY, LEFT

ANTI-TIP MOUNT ASSEMBLY, RIGHT
