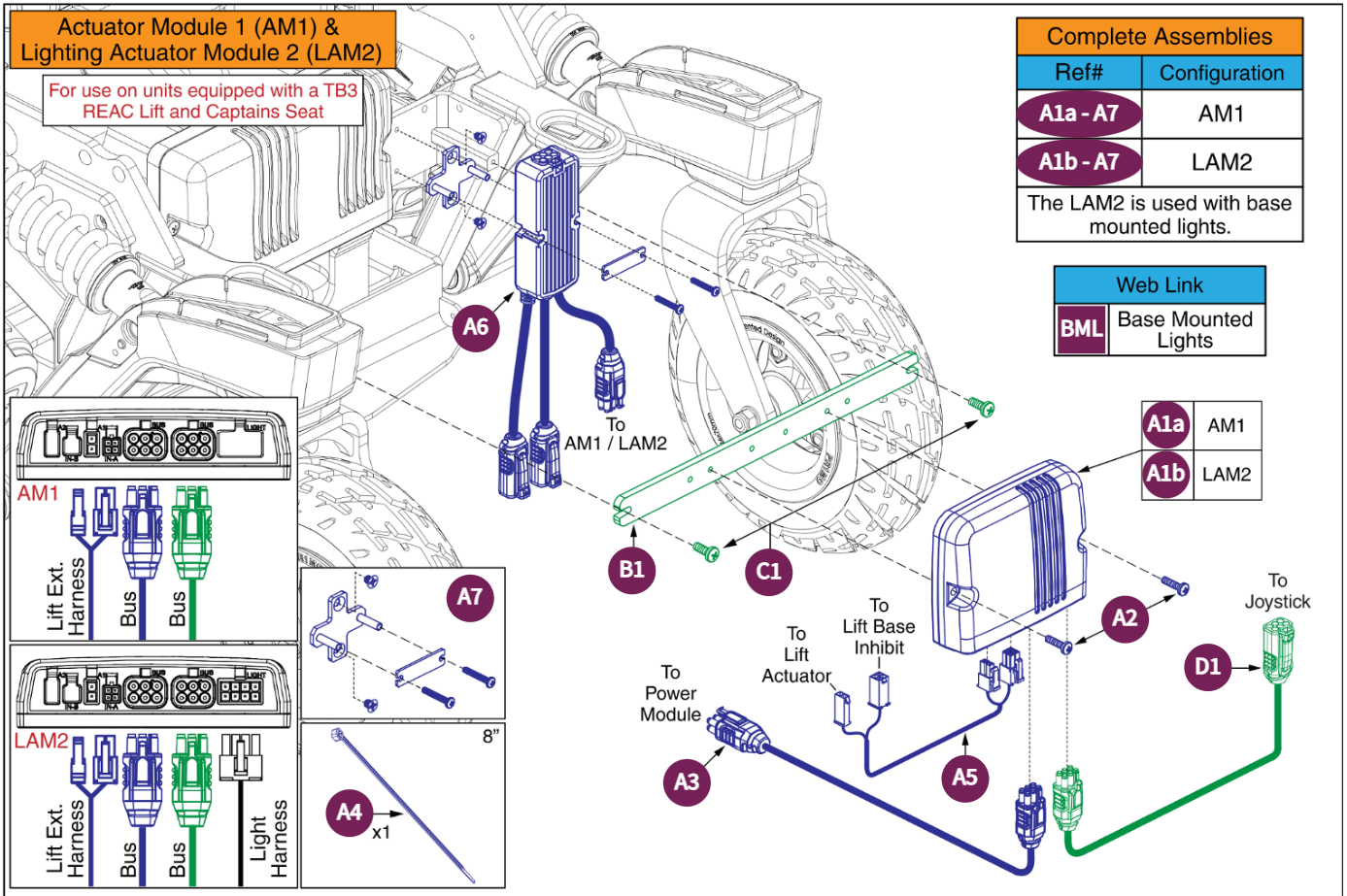

QL3 AM1/LAM2, Q-Captains w/REAC Lift,4Front 2

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # A2	Description SCREW, PAN HEAD, TYPE H, M4X0.7 X 20, FT, ISO 7045, CL 4.8, BZ	Part #: SCRPPH1153	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A4	Description TIEDOWN STRAP, 200 LG, PLASTIC, BLACK, SPEC NO. 2106329-2-50-175-V2-P	Part #: PLSTIE1004	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C1	Description SCREW, PAN HEAD, TYPE H, M4X0.7 X 12, FT, ISO 7045, CL 4.8, BZ-I	Part #: SCRPPH1044	Replaces:	Price Reg. Price: Starting At: $3.32
Ref # A5	Description ELECTRONIC,HARNESS,CURLY CABLE EXTENSION CABLE,FRONT MOUNTED,TRU-BALANCE 3 LIFT	Part #: ELE133304	Replaces:	Price Reg. Price: Starting At: $24.36
Ref # B1	Description LIGHT MODULE BRACKET-B	Part #: MEC167317	Replaces:	Price Reg. Price: Starting At: $33.37
Ref # A7	Description MULTIPLIER STUD MOUNT ASSEMBLY,PRIMARY-A	Part #: MEC1611656	Replaces:	Price Reg. Price: Starting At: $41.53
Ref # D1	Description HARNESS, BUS EXTENSION CABLE, Q-LOGIC 3, 0.410 METER, MALE/FEMALE-B	Part #: HAR144005	Replaces:	Price Reg. Price: Starting At: $105.28
Ref # A3	Description HARNESS, BUS EXTENSION CABLE, Q-LOGIC 3, 0.3 METER, FEMALE / FEMALE, (CURTIS: 17881361-01-02	Part #: HAR143994	Replaces:	Price Reg. Price: Starting At: $109.79
Ref # A6	Description HARNESS, BASE MULTIPLIER Q-LOGIC 3	Part #: HAR144004	Replaces:	Price Reg. Price: Starting At: $245.61
Ref # A1a	Description ACTUATOR MODULE, Q-LOGIC 3, AM1, 1 ACTUATOR, (CURTIS: 17963700-1009	Part #: CTL143983	Replaces:	Price Reg. Price: Starting At: $632.15
Ref # A1b	Description ACTUATOR MODULE, Q-LOGIC 3, LAM2, 2 ACTUATOR AND LIGHTS, (CURTIS: 17963700-2109	Part #: CTL143985	Replaces:	Price Reg. Price: Starting At: $680.66
Ref # A1a-A7	Description ELECTRONIC,ASSY,Q-LOGIC 3/AM1,LIFT,(CONFIGURATION # 04	Part #: ELE2009405	Replaces:	Price Reg. Price: Starting At: $797.51
Ref # A1b-A7	Description ELECTRONIC,ASSY,Q-LOGIC 3/LAM2,LIFT,(CONFIGURATION # 04	Part #: ELE2009407	Replaces:	Price Reg. Price: Starting At: $921.09

gift guide

Quick & Easy Checkout

QL3 AM1/LAM2, Q-Captains w/REAC Lift,4Front 2

SCREW, PAN HEAD, TYPE H, M4X0.7 X 20, FT, ISO 7045, CL 4.8, BZ

TIEDOWN STRAP, 200 LG, PLASTIC, BLACK, SPEC NO. 2106329-2-50-175-V2-P

SCREW, PAN HEAD, TYPE H, M4X0.7 X 12, FT, ISO 7045, CL 4.8, BZ-I

ELECTRONIC,HARNESS,CURLY CABLE EXTENSION CABLE,FRONT MOUNTED,TRU-BALANCE 3 LIFT

LIGHT MODULE BRACKET-B

MULTIPLIER STUD MOUNT ASSEMBLY,PRIMARY-A

HARNESS, BUS EXTENSION CABLE, Q-LOGIC 3, 0.410 METER, MALE/FEMALE-B

HARNESS, BUS EXTENSION CABLE, Q-LOGIC 3, 0.3 METER, FEMALE / FEMALE, (CURTIS: 17881361-01-02

HARNESS, BASE MULTIPLIER Q-LOGIC 3

ACTUATOR MODULE, Q-LOGIC 3, AM1, 1 ACTUATOR, (CURTIS: 17963700-1009

ACTUATOR MODULE, Q-LOGIC 3, LAM2, 2 ACTUATOR AND LIGHTS, (CURTIS: 17963700-2109

ELECTRONIC,ASSY,Q-LOGIC 3/AM1,LIFT,(CONFIGURATION # 04

ELECTRONIC,ASSY,Q-LOGIC 3/LAM2,LIFT,(CONFIGURATION # 04
