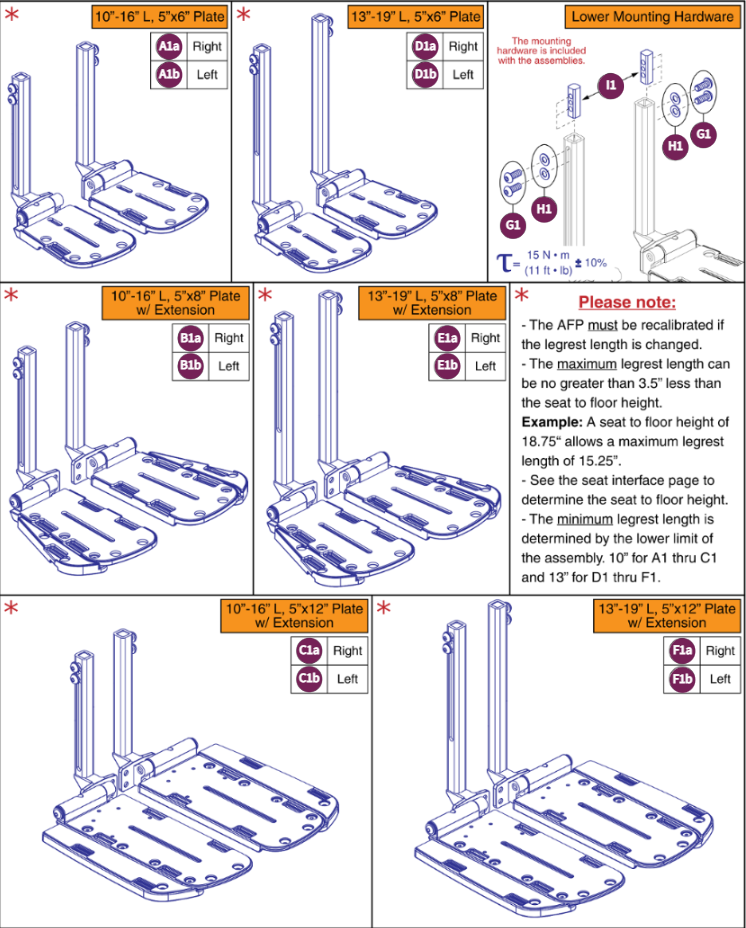

AFP Lower's & Footplates,4Front 2,TB 4,Tapered

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # G1	Description SCREW, BUTTON HEAD, M8X1.25 X 20, ISO 7380-1, CL 10.9, BZ, PVTP-D	Part #: SCRASBH1251	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # H1	Description WASHER, FLAT, 8.4 ID X 16 OD X 1.6 THK, ISO 7089-8-200 HV, BZ-O	Part #: HDW138262	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # I1	Description FLAT NUT, LOWER ADJUSTMENT-F	Part #: DWR1404B003	Replaces:	Price Reg. Price: Starting At: $8.95
Ref # A1a	Description FOOTPLATE,ASSY,5" X 6",CAST,10"-16" LENGTH,RIGHT-C	Part #: MEC141648	Replaces:	Price Reg. Price: Starting At: $183.80
Ref # D1b	Description FOOTPLATE,ASSY,5" X 6",CAST,13"-19" LENGTH,LEFT-B	Part #: MEC151365	Replaces:	Price Reg. Price: Starting At: $186.50
Ref # D1a	Description FOOTPLATE,ASSY,5" X 6",CAST,13"-19" LENGTH,RIGHT-B	Part #: MEC151472	Replaces:	Price Reg. Price: Starting At: $186.50
Ref # A1b	Description FOOTPLATE,ASSY,5" X 6",CAST,10"-16" LENGTH,LEFT-C	Part #: MEC141650	Replaces:	Price Reg. Price: Starting At: $187.48
Ref # B1b	Description FOOTPLATE ASSY,5" X 8",W/ WIDTH EXTENSION,10"-16" LENGTH,LEFT-A	Part #: MEC1707409	Replaces:	Price Reg. Price: Starting At: $221.18
Ref # B1a	Description FOOTPLATE ASSY,5" X 8",W/ WIDTH EXTENSION,10"-16" LENGTH,RIGHT-A	Part #: MEC1707403	Replaces:	Price Reg. Price: Starting At: $221.18
Ref # E1b	Description FOOTPLATE ASSY,5" X 8",W/ WIDTH EXTENSION,13"-19" LENGTH,LEFT-A	Part #: MEC1707428	Replaces:	Price Reg. Price: Starting At: $223.47
Ref # E1a	Description FOOTPLATE ASSY,5" X 8",W/ WIDTH EXTENSION,13"-19" LENGTH,RIGHT-A	Part #: MEC1707426	Replaces:	Price Reg. Price: Starting At: $223.47
Ref # C1b	Description FOOTPLATE ASSY,5" X 12",W/ WIDTH EXTENSION,10"-16" LENGTH,LEFT-A	Part #: MEC1707397	Replaces:	Price Reg. Price: Starting At: $246.28
Ref # C1a	Description FOOTPLATE ASSY,5" X 12",W/ WIDTH EXTENSION,10"-16" LENGTH,RIGHT-A	Part #: MEC1707399	Replaces:	Price Reg. Price: Starting At: $246.28
Ref # F1b	Description FOOTPLATE ASSY,5" X 12",W/ WIDTH EXTENSION,13"-19" LENGTH,LEFT-A	Part #: MEC1707401	Replaces:	Price Reg. Price: Starting At: $248.30
Ref # F1a	Description FOOTPLATE ASSY,5" X 12",W/ WIDTH EXTENSION,13"-19" LENGTH,RIGHT-A	Part #: MEC1707400	Replaces:	Price Reg. Price: Starting At: $248.30

gift guide

Quick & Easy Checkout

AFP Lower's & Footplates,4Front 2,TB 4,Tapered

SCREW, BUTTON HEAD, M8X1.25 X 20, ISO 7380-1, CL 10.9, BZ, PVTP-D

WASHER, FLAT, 8.4 ID X 16 OD X 1.6 THK, ISO 7089-8-200 HV, BZ-O

FLAT NUT, LOWER ADJUSTMENT-F

FOOTPLATE,ASSY,5" X 6",CAST,10"-16" LENGTH,RIGHT-C

FOOTPLATE,ASSY,5" X 6",CAST,13"-19" LENGTH,LEFT-B

FOOTPLATE,ASSY,5" X 6",CAST,13"-19" LENGTH,RIGHT-B

FOOTPLATE,ASSY,5" X 6",CAST,10"-16" LENGTH,LEFT-C

FOOTPLATE ASSY,5" X 8",W/ WIDTH EXTENSION,10"-16" LENGTH,LEFT-A

FOOTPLATE ASSY,5" X 8",W/ WIDTH EXTENSION,10"-16" LENGTH,RIGHT-A

FOOTPLATE ASSY,5" X 8",W/ WIDTH EXTENSION,13"-19" LENGTH,LEFT-A

FOOTPLATE ASSY,5" X 8",W/ WIDTH EXTENSION,13"-19" LENGTH,RIGHT-A

FOOTPLATE ASSY,5" X 12",W/ WIDTH EXTENSION,10"-16" LENGTH,LEFT-A

FOOTPLATE ASSY,5" X 12",W/ WIDTH EXTENSION,10"-16" LENGTH,RIGHT-A

FOOTPLATE ASSY,5" X 12",W/ WIDTH EXTENSION,13"-19" LENGTH,LEFT-A

FOOTPLATE ASSY,5" X 12",W/ WIDTH EXTENSION,13"-19" LENGTH,RIGHT-A
