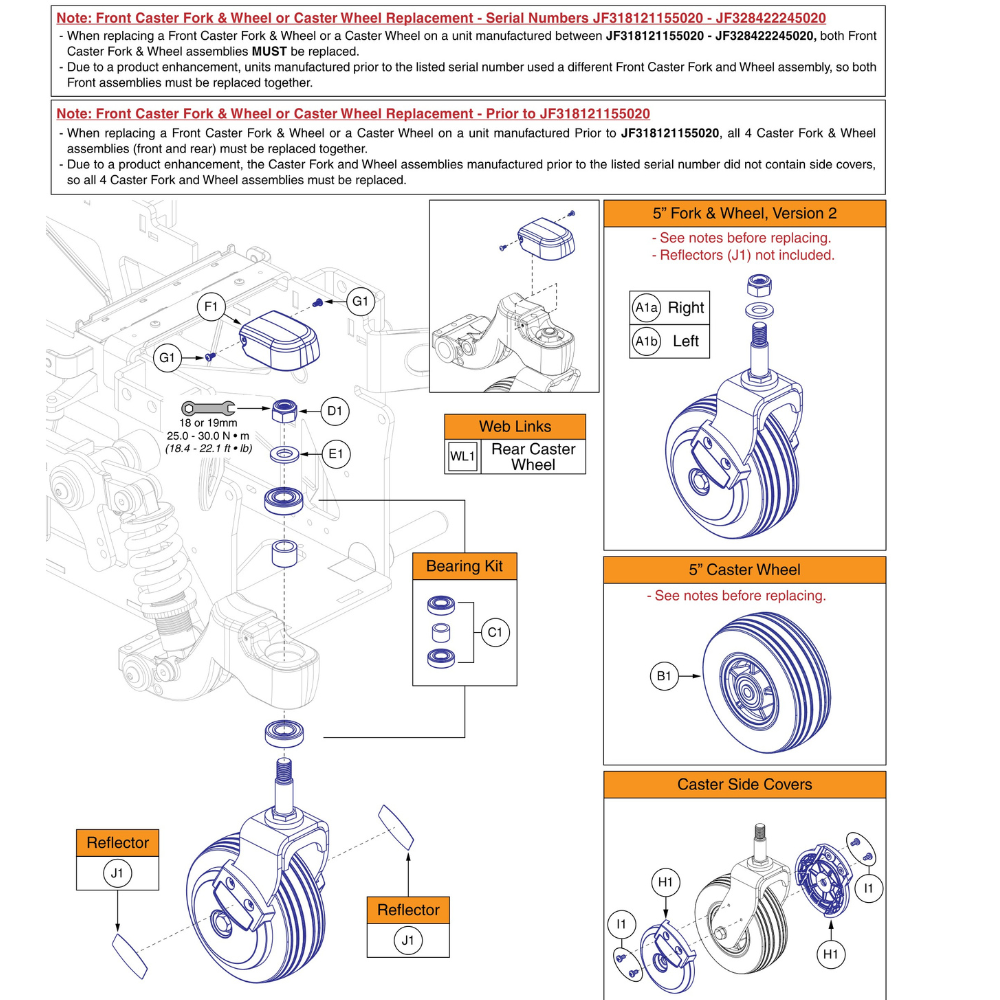

Front Caster Fork and Wheel Assembly, 5" Wheels

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # D1	Description NUT, LOCK, M12X1.75, 12 HIGH, 19 WIDE. ISO 898-2, CL 8, BZ, PVTP (SEE DRAWING	Part #: NUTNYLK1013	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # G1	Description SCREW, PAN HEAD, TYPE H, M3X0.5 X 6, ISO 7045, CL 4.8, BZ	Part #: HDW1803914	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # I1	Description SCREW, PAN HEAD, TYPE H, M4X0.7 X 8, FT, ISO 7045, CL 4.8, BZ-D	Part #: SCRPPH1036	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # E1	Description WASHER, FLAT, 13 ID X 24 OD X 2.5 THK, ISO 7089-12-200 HV, BLK	Part #: WASMETR1032	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # J1	Description REFLECTOR,AMBER,CASTER SPHERE,C-1202-027-A	Part #: DWR1202C027	Replaces:	Price Reg. Price: Starting At: $3.12
Ref # H1	Description CASTER SPHERE, 5-INCH, LOW PROFILE, 90MM	Part #: DGN2106246	Replaces:	Price Reg. Price: Starting At: $4.05
Ref # F1	Description PLASTIC CAP, CASTER ARM	Part #: DGN1808787	Replaces:	Price Reg. Price: Starting At: $4.59
Ref # B1	Description WHEEL,ASSY,CASTER,FLAT FREE,BLACK RIM/BLACK TIRE,5" X 1.75",W/BEARINGS & SPACER,E-1202-008	Part #: WHL140383	Replaces:	Price Reg. Price: Starting At: $39.00
Ref # C1	Description CASTER BEARING KIT	Part #: MEC122534	Replaces:	Price Reg. Price: Starting At: $90.51
Ref # A1b	Description 5IN CASTER, 33.5 TRAIL, ASSEMBLY, LEFT	Part #: MEC2105074	Replaces:	Price Reg. Price: Starting At: $91.10
Ref # A1a	Description 5IN CASTER, 33.5 TRAIL, ASSEMBLY, RIGHT	Part #: MEC2105075	Replaces:	Price Reg. Price: Starting At: $91.10

gift guide

Quick & Easy Checkout

Front Caster Fork and Wheel Assembly, 5" Wheels

NUT, LOCK, M12X1.75, 12 HIGH, 19 WIDE. ISO 898-2, CL 8, BZ, PVTP (SEE DRAWING

SCREW, PAN HEAD, TYPE H, M3X0.5 X 6, ISO 7045, CL 4.8, BZ

SCREW, PAN HEAD, TYPE H, M4X0.7 X 8, FT, ISO 7045, CL 4.8, BZ-D

WASHER, FLAT, 13 ID X 24 OD X 2.5 THK, ISO 7089-12-200 HV, BLK

REFLECTOR,AMBER,CASTER SPHERE,C-1202-027-A

CASTER SPHERE, 5-INCH, LOW PROFILE, 90MM

PLASTIC CAP, CASTER ARM

WHEEL,ASSY,CASTER,FLAT FREE,BLACK RIM/BLACK TIRE,5" X 1.75",W/BEARINGS & SPACER,E-1202-008

CASTER BEARING KIT

5IN CASTER, 33.5 TRAIL, ASSEMBLY, LEFT

5IN CASTER, 33.5 TRAIL, ASSEMBLY, RIGHT
