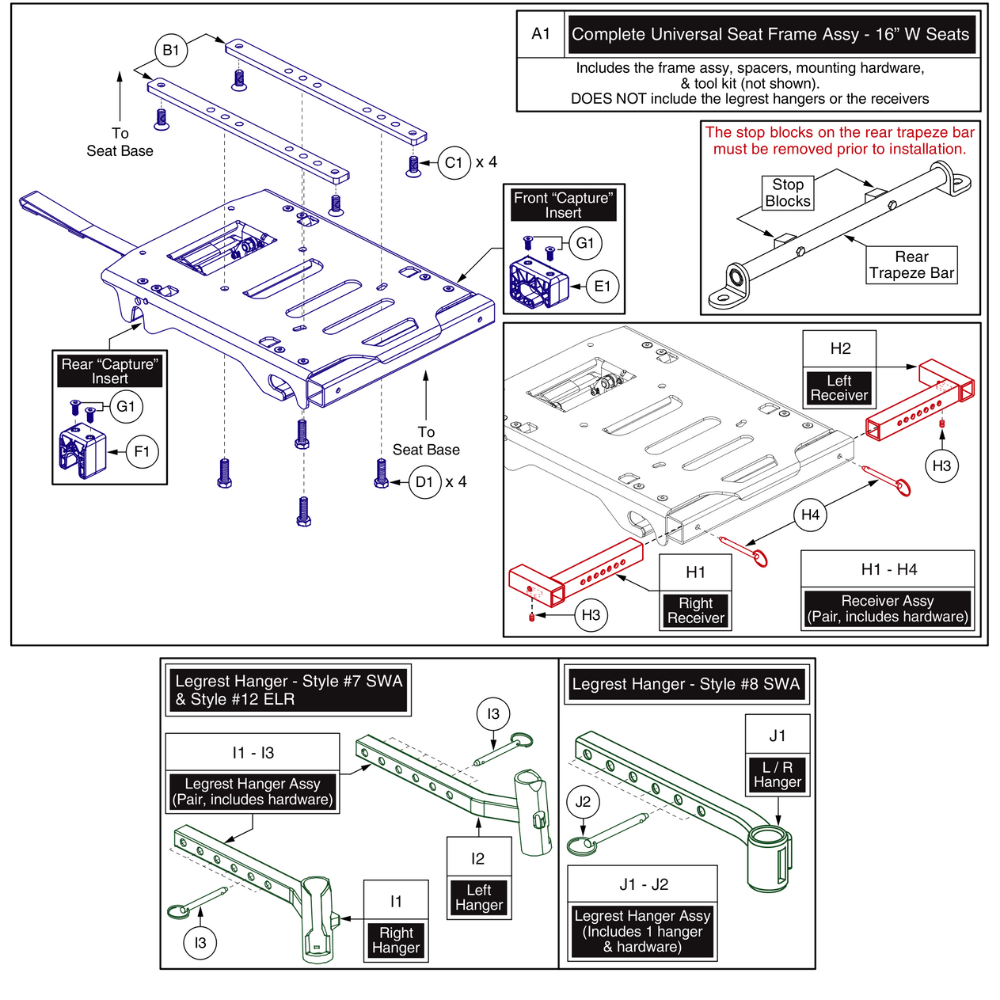

Quick Release(Rear Latch)Seat Frame-16" W Seats

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # C1	Description SCREW, FLAT HEAD, M8X1.25 X 20, ISO 10642, CL 10.9, BZ, PVTP	Part #: SCRSHFH1203	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D1	Description SCREW, HEX HEAD, M8X1.25 X 25, ISO 4017, CL 10.9, BZ, PVTP	Part #: SCRHHCS1296	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # H3	Description SCREW, SET, CUP POINT, M8X1.25 X 10, ISO 4029, STL, BZ-B	Part #: SCRSETS1056	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # H4	Description PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-C	Part #: PINCOTD1000	Replaces:	Price Reg. Price: Starting At: $5.92
Ref # I3	Description PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-D	Part #: PINCOTD1000	Replaces:	Price Reg. Price: Starting At: $5.92
Ref # J2	Description PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-E	Part #: PINCOTD1000	Replaces:	Price Reg. Price: Starting At: $5.92
Ref # B1	Description SPACER PLATE	Part #: MEC135832	Replaces:	Price Reg. Price: Starting At: $24.82
Ref # H2	Description LEGREST HANGER RECEIVER,7 POSITION WIDTH ADJ,LEFT,C-1107-013-A	Part #: DWG1107C130	Replaces:	Price Reg. Price: Starting At: $36.52
Ref # H1	Description LEGREST HANGER RECEIVER,7 POSITION WIDTH ADJ,RIGHT,C-1107-012-A	Part #: DWG1107C120	Replaces:	Price Reg. Price: Starting At: $36.52
Ref # I2	Description LEGREST HANGER WELDMENT,TAPER PIN,UNIVERSAL SEAT FRAME,OFFSET,LEFT,E-1000-140-A	Part #: DWR1000E140	Replaces:	Price Reg. Price: Starting At: $36.52
Ref # I1	Description LEGREST HANGER WELDMENT,TAPER PIN,UNIVERSAL SEAT FRAME,OFFSET,RIGHT,E-1000-141-A	Part #: DWR1000E141	Replaces:	Price Reg. Price: Starting At: $36.52
Ref # H1-H4	Description LEGREST HANGER RECEIVER,ELR/SA,CLOVER LEAF SEAT FRAME-A	Part #: FRMASMB12544	Replaces:	Price Reg. Price: Starting At: $75.22
Ref # I1-I3	Description LEGREST HANGER,ASSY,UNIVERSAL TAPER PIN,FOR CLOVER LEAF SEAT FRAME-A	Part #: FRMASMB12548	Replaces:	Price Reg. Price: Starting At: $99.54
Ref # J1	Description LEGREST HANGER WELDMENT,ELR/S/A # 8,UNIVERSAL SEAT FRAME,OFFSET,LEFT/RIGHT,D-1010-310-A	Part #: DWR1010D310	Replaces:	Price Reg. Price: Starting At: $101.52
Ref # J1-J2	Description LEGREST HANGER,ASSY,S/A #8,CLOVER LEAF SEAT FRAME-A	Part #: FRMASMB12549	Replaces:	Price Reg. Price: Starting At: $103.73
Ref # A1	Description SEAT FRAME,ASSY,UNIVERSAL JAZZY QUICK RELEASE,COMFORT SEAT,16"W	Part #: MEC136087	Replaces:	Price Reg. Price: Starting At: $345.19

gift guide

Quick & Easy Checkout

Quick Release(Rear Latch)Seat Frame-16" W Seats

SCREW, FLAT HEAD, M8X1.25 X 20, ISO 10642, CL 10.9, BZ, PVTP

SCREW, HEX HEAD, M8X1.25 X 25, ISO 4017, CL 10.9, BZ, PVTP

SCREW, SET, CUP POINT, M8X1.25 X 10, ISO 4029, STL, BZ-B

PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-C

PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-D

PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-E

SPACER PLATE

LEGREST HANGER RECEIVER,7 POSITION WIDTH ADJ,LEFT,C-1107-013-A

LEGREST HANGER RECEIVER,7 POSITION WIDTH ADJ,RIGHT,C-1107-012-A

LEGREST HANGER WELDMENT,TAPER PIN,UNIVERSAL SEAT FRAME,OFFSET,LEFT,E-1000-140-A

LEGREST HANGER WELDMENT,TAPER PIN,UNIVERSAL SEAT FRAME,OFFSET,RIGHT,E-1000-141-A

LEGREST HANGER RECEIVER,ELR/SA,CLOVER LEAF SEAT FRAME-A

LEGREST HANGER,ASSY,UNIVERSAL TAPER PIN,FOR CLOVER LEAF SEAT FRAME-A

LEGREST HANGER WELDMENT,ELR/S/A # 8,UNIVERSAL SEAT FRAME,OFFSET,LEFT/RIGHT,D-1010-310-A

LEGREST HANGER,ASSY,S/A #8,CLOVER LEAF SEAT FRAME-A

SEAT FRAME,ASSY,UNIVERSAL JAZZY QUICK RELEASE,COMFORT SEAT,16"W
