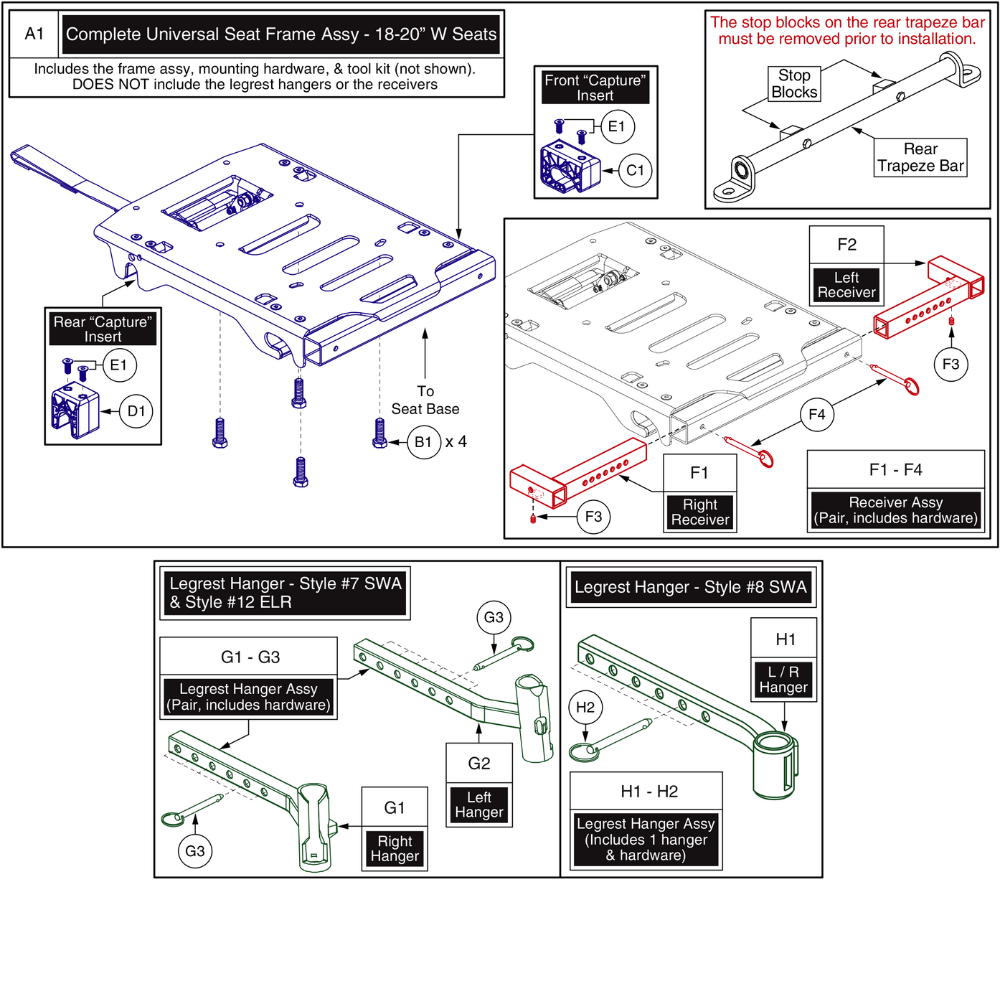

Quick Release(Rear Latch)Seat Frame-18-20"W Seats

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # B1	Description SCREW, HEX HEAD, M8X1.25 X 16, ISO 4014, CL 10.9, BZ, PVTP	Part #: SCRHHCS1412	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # F3	Description SCREW, SET, CUP POINT, M8X1.25 X 10, ISO 4029, STL, BZ-C	Part #: SCRSETS1056	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # F4	Description PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-F	Part #: PINCOTD1000	Replaces:	Price Reg. Price: Starting At: $5.92
Ref # G3	Description PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-G	Part #: PINCOTD1000	Replaces:	Price Reg. Price: Starting At: $5.92
Ref # H2	Description PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-H	Part #: Part Number: PINCOTD1000	Replaces:	Price Reg. Price: Starting At: $5.92
Ref # F2	Description LEGREST HANGER RECEIVER,7 POSITION WIDTH ADJ,LEFT,C-1107-013-B	Part #: DWG1107C130	Replaces:	Price Reg. Price: Starting At: $36.52
Ref # F1	Description LEGREST HANGER RECEIVER,7 POSITION WIDTH ADJ,RIGHT,C-1107-012-B	Part #: DWG1107C120	Replaces:	Price Reg. Price: Starting At: $36.52
Ref # G2	Description LEGREST HANGER WELDMENT,TAPER PIN,UNIVERSAL SEAT FRAME,OFFSET,LEFT,E-1000-140-B	Part #: DWR1000E140	Replaces:	Price Reg. Price: Starting At: $36.52
Ref # G1	Description LEGREST HANGER WELDMENT,TAPER PIN,UNIVERSAL SEAT FRAME,OFFSET,RIGHT,E-1000-141-B	Part #: DWR1000E141	Replaces:	Price Reg. Price: Starting At: $36.52
Ref # F1-F4	Description LEGREST HANGER RECEIVER,ELR/SA,CLOVER LEAF SEAT FRAME-B	Part #: FRMASMB12544	Replaces:	Price Reg. Price: Starting At: $75.22
Ref # G1-G3	Description LEGREST HANGER,ASSY,UNIVERSAL TAPER PIN,FOR CLOVER LEAF SEAT FRAME-B	Part #: FRMASMB12548	Replaces:	Price Reg. Price: Starting At: $99.54
Ref # H1	Description LEGREST HANGER WELDMENT,ELR/S/A # 8,UNIVERSAL SEAT FRAME,OFFSET,LEFT/RIGHT,D-1010-310-B	Part #: DWR1010D310	Replaces:	Price Reg. Price: Starting At: $101.52
Ref # H1-H2	Description LEGREST HANGER,ASSY,S/A #8,CLOVER LEAF SEAT FRAME-B	Part #: FRMASMB12549	Replaces:	Price Reg. Price: Starting At: $103.73
Ref # A1	Description SEAT FRAME,ASSY,UNIVERSAL JAZZY QUICK RELEASE,COMFORT SEAT	Part #: MEC132398	Replaces:	Price Reg. Price: Starting At: $321.43

gift guide

Quick & Easy Checkout

Quick Release(Rear Latch)Seat Frame-18-20"W Seats

SCREW, HEX HEAD, M8X1.25 X 16, ISO 4014, CL 10.9, BZ, PVTP

SCREW, SET, CUP POINT, M8X1.25 X 10, ISO 4029, STL, BZ-C

PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-F

PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-G

PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-H

LEGREST HANGER RECEIVER,7 POSITION WIDTH ADJ,LEFT,C-1107-013-B

LEGREST HANGER RECEIVER,7 POSITION WIDTH ADJ,RIGHT,C-1107-012-B

LEGREST HANGER WELDMENT,TAPER PIN,UNIVERSAL SEAT FRAME,OFFSET,LEFT,E-1000-140-B

LEGREST HANGER WELDMENT,TAPER PIN,UNIVERSAL SEAT FRAME,OFFSET,RIGHT,E-1000-141-B

LEGREST HANGER RECEIVER,ELR/SA,CLOVER LEAF SEAT FRAME-B

LEGREST HANGER,ASSY,UNIVERSAL TAPER PIN,FOR CLOVER LEAF SEAT FRAME-B

LEGREST HANGER WELDMENT,ELR/S/A # 8,UNIVERSAL SEAT FRAME,OFFSET,LEFT/RIGHT,D-1010-310-B

LEGREST HANGER,ASSY,S/A #8,CLOVER LEAF SEAT FRAME-B

SEAT FRAME,ASSY,UNIVERSAL JAZZY QUICK RELEASE,COMFORT SEAT
