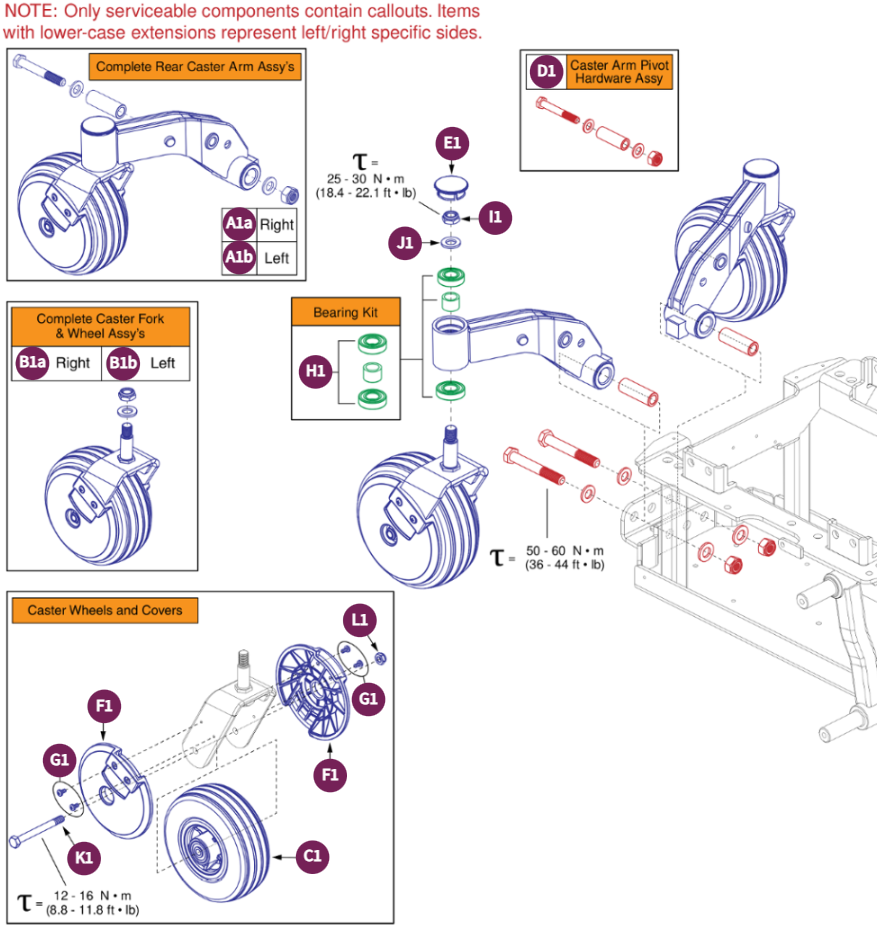

Rear Caster Arms, Q6 Edge 3

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # L1	Description NUT, HEX, JAM, PVTP, M8X1.25, ISO 10511, CL 04, BZ (DWG NUTNJAM1020)-D	Part #: NUTNJAM1020	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # I1	Description NUT, LOCK, M12X1.75, 12 HIGH, 19 WIDE. ISO 898-2, CL 8, BZ, PVTP (SEE DRAWING)-C	Part #: NUTNYLK1013	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # G1	Description SCREW, PAN HEAD, TYPE H, M4X0.7 X 8, FT, ISO 7045, CL 4.8, BZ-AO	Part #: SCRPPH1036	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # J1	Description WASHER, FLAT, 13 ID X 24 OD X 2.5 THK, ISO 7089-12-200 HV, BLK-C	Part #: WASMETR1032	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # K1	Description SCREW, HEX HEAD, M8X1.25 X 80, ISO 4014, CL 10.9, BZ-A	Part #: SCRHHCS1254	Replaces:	Price Reg. Price: Starting At: $6.89
Ref # E1	Description CASTER CAP, 42MM BARREL-J	Part #: DGN140932	Replaces:	Price Reg. Price: Starting At: $7.23
Ref # F1	Description COVER,CASTER SPHERE,BLACK,6" WHEEL,THIN,LOW PROFILE,D-1202-044-E	Part #: DWR1202D044	Replaces:	Price Reg. Price: Starting At: $16.29
Ref # D1	Description PIVOT HARDWARE SUB-ASSEMBLY-A	Part #: MEC1709568	Replaces:	Price Reg. Price: Starting At: $21.04
Ref # H1	Description CASTER BEARING KIT-E	Part #: MEC122534	Replaces:	Price Reg. Price: Starting At: $94.13
Ref # C1	Description WHEEL,ASSY,LOW IMPACT,BLACK RIM/BLACK TIRE,6" X 2",W/BEARINGS & SPACER,E-1202-039-B	Part #: WHLASMB7110039	Replaces:	Price Reg. Price: Starting At: $106.08
Ref # B1b	Description CASTER ASSEMBLY, 6", BLACK RIM / BLACK TIRE, LEFT (DWG 151499)-B	Part #: MEC151499-B	Replaces:	Price Reg. Price: Starting At: $133.12
Ref # B1a	Description CASTER ASSEMBLY, 6", BLACK RIM / BLACK TIRE, RIGHT (DWG 151501)-B	Part #: MEC151501-B	Replaces:	Price Reg. Price: Starting At: $133.12
Ref # A1b	Description CASTER ARM ASSEMBLY, 6", REAR LEFT, BLACK RIM/BLACK TIRE, BLACK CASTER ARM	Part #: MEC1708419-B	Replaces:	Price Reg. Price: Starting At: $205.95
Ref # A1a	Description CASTER ARM ASSEMBLY, 6", REAR RIGHT, BLACK RIM/BLACK TIRE, BLACK CASTER ARM	Part #: MEC1708422-B	Replaces:	Price Reg. Price: Starting At: $210.07

gift guide

Quick & Easy Checkout

Rear Caster Arms, Q6 Edge 3

NUT, HEX, JAM, PVTP, M8X1.25, ISO 10511, CL 04, BZ (DWG NUTNJAM1020)-D

NUT, LOCK, M12X1.75, 12 HIGH, 19 WIDE. ISO 898-2, CL 8, BZ, PVTP (SEE DRAWING)-C

SCREW, PAN HEAD, TYPE H, M4X0.7 X 8, FT, ISO 7045, CL 4.8, BZ-AO

WASHER, FLAT, 13 ID X 24 OD X 2.5 THK, ISO 7089-12-200 HV, BLK-C

SCREW, HEX HEAD, M8X1.25 X 80, ISO 4014, CL 10.9, BZ-A

CASTER CAP, 42MM BARREL-J

COVER,CASTER SPHERE,BLACK,6" WHEEL,THIN,LOW PROFILE,D-1202-044-E

PIVOT HARDWARE SUB-ASSEMBLY-A

CASTER BEARING KIT-E

WHEEL,ASSY,LOW IMPACT,BLACK RIM/BLACK TIRE,6" X 2",W/BEARINGS & SPACER,E-1202-039-B

CASTER ASSEMBLY, 6", BLACK RIM / BLACK TIRE, LEFT (DWG 151499)-B

CASTER ASSEMBLY, 6", BLACK RIM / BLACK TIRE, RIGHT (DWG 151501)-B

CASTER ARM ASSEMBLY, 6", REAR LEFT, BLACK RIM/BLACK TIRE, BLACK CASTER ARM

CASTER ARM ASSEMBLY, 6", REAR RIGHT, BLACK RIM/BLACK TIRE, BLACK CASTER ARM
