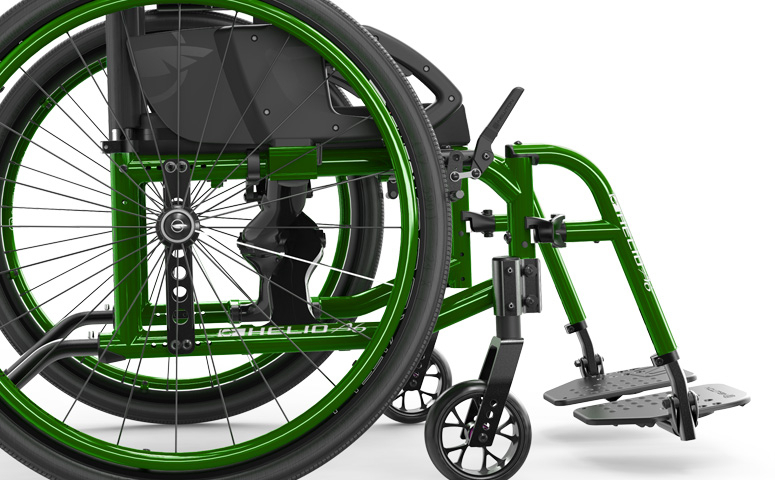

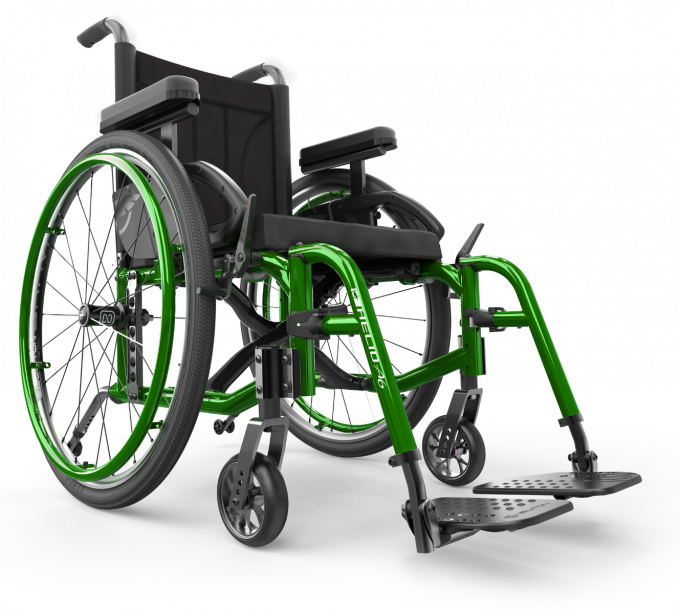

The HELIO A6 aims for efficiency and mobility at an affordable price. Durable components like our symmetrical cross brace ensure remarkable mobility and ease of propulsion while the lightweight design guarantees comfortable and agile handling.

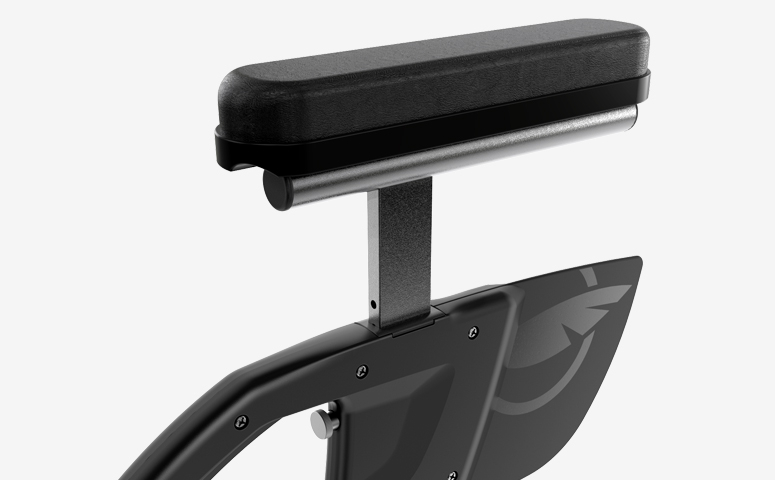

Solid manufacturing and reliable components that give you more, plus optional accessories that include height-adjustable T-armrests, integrated push handles and Newton One spoke wheels. Also, one-piece side frames for greater strength and maneuverability. In short, the HELIO A6 wheelchair offers exceptional durability, to serve you for many years to come.
Features

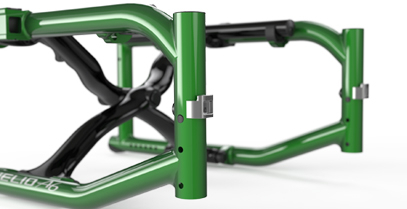

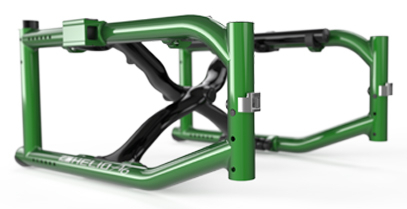

Unibody Frame

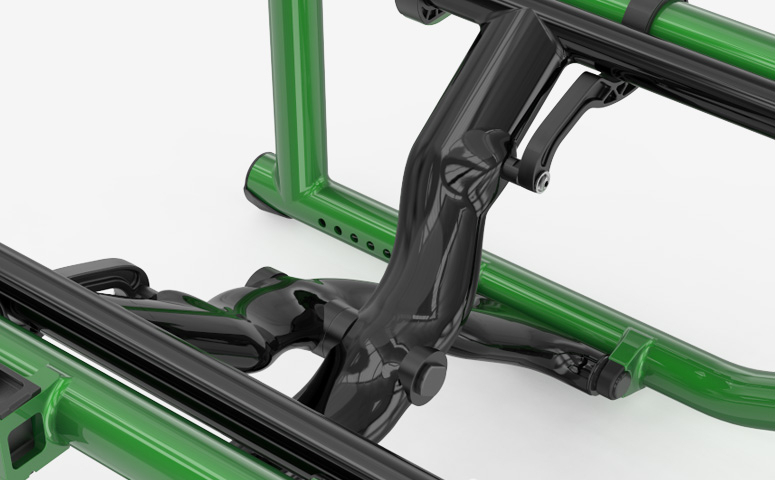

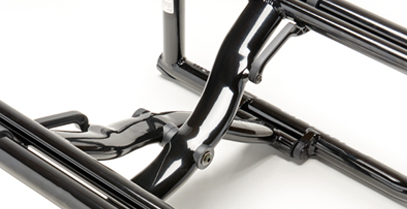

Symmetrical Hydroformed Cross Brace 3D
Ultrarigid Folding System

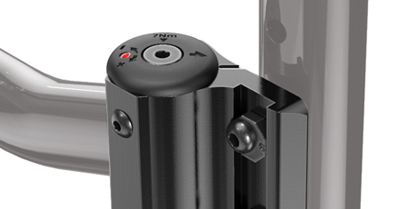

Anti-Flutter Caster
Motion Composites
Who we are: passionate innovators pushing the boundaries of what is possible. What we do: combine leading-edge engineering with innovative materials to create movement. What makes us proud: having our ultralight wheelchairs echo the love of life their use
Measure from the most posterior point of the body to the inside of the knee, minus at least two inches.
Some prefer more leg overhang to make room for their hand when lifting their leg.
B-
Back Height
Measured from the seat base to the top of the wheelchair back. Depends on how much upper back
support is needed, and also affects freedom for the upper body to rotate.
c-
Rear Seat to Floor
Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this
determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
D-
Hanger Angle
Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle
allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend
towards the perpendicular
E-
Seat Width
Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move.
Consider bulk of clothing, particularly a heavy winter coat, if relevant.
F-
Wheel Camber
Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits
ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
G-
Front Seat to Floor
Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the
cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add
the footrest clearance if the wheelchair will be foot-propelled.
H-
Footrest Width
Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.
H-
Footrest Width
Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.
I-
Center of Gravity
Measure from the front of the seat back post to the center of the rear axle.
J-
Seat to Footrest Length
Measure from the edge of the seat upholstery to the top rear of the footrest.
K-
Backrest Angle
Measure the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to
approximate the angle from the back post to the seat, subtract two degrees from measurement for every
.5" of dump
A. CARBON FRAME – LIMITED LIFETIME Motion Composites warrants the carbon wheelchair frame against defects in materials and workmanship for life. This warranty is limited to the carbon fiber frame and is limited to the first user and is not transferable. B. CARBON CROSS-BRACE – LIMITED LIFETIME Motion Composites warrants the carbon wheelchair cross-brace against defects in materials and workmanship for life. This warranty is limited to the carbon fiber cross-brace and is limited to the first user and is not transferable. C. ALUMINUM FRAME – LIMITED 5 YEARS Motion Composites warrants the Aluminum wheelchair frame against defects in materials and workmanship for five years from the date of purchase. This warranty is limited to the Aluminum frame and is limited to the first user and is not transferable. D. ALUMINUM CROSS-BRACE – LIMITED 5 YEARS Motion Composites warrants the Aluminum wheelchair cross-brace against defects in materials and workmanship for five years from the date of purchase. This warranty is limited to the Aluminum Cross-brace and is limited to the first user and is not transferable. of these warranties remain subject to this warranty for its remaining term. However, components replaced or repaired under warranty within ninety (90) days of its expiration are guaranteed ninety (90) days, except those replaced or repaired under application of the thirty (30) days warranty within the thirty (30) days of its expiry, which shall then be guaranteed for thirty (30) days.
1.2 COMPONENTS – 1 YEAR
Motion Composites warrants all Motion Composites-made compo- nents, including the adjustable tension back upholstery, against defects in materials and workmanship for limited one (1) year from the date of purchase, except for parts listed below.
Motion Composites covers the following items for 30 days: tires and tubes for front or rear wheels, cushions, seat slings, seat upholstery, standard back upholstery, armrest, push-handle grips;
This warranty does not cover: damage arising from normal wear and tear or from other circumstances beyond Motion Composites’ control.
The foregoing warranty shall not apply if:
The original Motion Composites serial number tag has been removed, altered or defaced;
Or the wheelchair has been subjected to negligence, accident, improper maintenance, storage or operation as required by your Motion Composites Owner’s Manual, commercial or institutional use, misuse or abuse, including, but not limited to, exceeding the maximum weight capacity of 265 pounds (120 kg), or 350 pounds (159 kg) if equipped with HD Kit;
Or the wheelchair has been damaged by improper repairs or repairs made to any component without the express written consent of Motion Composites;
Or the wheelchair has been modified without Motion Composites’ express written consent, including, but not limited to, modification using unauthorized parts or attachments;
Or the wheelchair has been used as a weight training apparatus;
Or the wheelchair’s Transit Tie-Down System (TTDS) has been misused; if TTDS is not attached to the four tarpaulin bows dentified and installed by Motion Composites.
The shelf life or use life of the wheelchairs and their components could vary pending on the, practice, treatment, handling and frequen- cy of use. Exposure to sun, heat, and water could affect the life of the wheelchair. Maintaining the wheelchair clean and storing it in a cool, dry area and away from the sunlight, will increase the duration of the wheelchair;
This warranty is extended only to the original consumer purchasers of Motion Composites’ product.
Devices and components subject to replacement or repair under one of these warranties remain subject to this warranty for its remaining term. However, components replaced or repaired under warranty within ninety (90) days of its expiration are guaranteed ninety (90) days, except those replaced or repaired under application of the thirty (30) days warranty within the thirty (30) days of its expiry, which shall then be guaranteed for thirty (30) days.
1.3 IMPORTANT NOTICE REGARDING CONSUMERS RIGHTS.
The benefits we give in this manufacturer’s warranty are additional to, and do not detract from, any rights and remedies that you may have under local consumer protection laws.
This manufacturer’s warranty is governed by the laws of the country, province, state or territory in which you purchased your Motion Composites product.
In many countries, consumers have statutory rights under local consumer laws. Those consumer rights may differ between countries, territories, states or provinces, and often cannot be excluded.
This Manufacturer’s warranty is not intended to:
change or exclude any statutory consumer rights that cannot be lawfully changed or excluded; or
limit or exclude any right you have against the person who sold the Motion composites product to you if that person has breached their sales contract with you.
1.4 OUR RESPONSIBILITY
Motion Composites’ sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.
1.5 WARRANTY SERVICE
If your wheelchair requires warranty service, please contact an authorized Motion Composites Dealer in Canada or an authorized international distributor. In the event of a defect in mate- rial or workmanship, the Dealer or Distributor must obtain a return authorization (RA) number from Motion Composites. Motion Composites issues RA numbers only to authorized Motion Composites Dealers and Distributors. If you do not receive satisfactory warranty service, please write directly to Motion Composites Customer Service at
Do not return products to our factory without our prior consent.
1.6 CONSUMER NOTICE
The foregoing warranty is exclusive, and in lieu of all other express warranties, whether written or oral, express or implied. Motion Composites shall not be liable for any consequential or inciden- tal damages whatsoever. By registering your Motion Composites wheelchair, you will be deemed to agree with all provisions of this warranty.
It is forbidden to alter or extend the foregoing express warranty or to waive any of the limitations or exclusions.
