Quickie Iris SE

(No reviews yet) Write a Review

SKU: SUIris

Quickie Iris SE

(No reviews yet) Write a Review

SKU: SUIris

Package Includes: Quickie Iris SE, standard frame and seat frame, frame color (user choice), 0 to 55 degree tilt function with foot release, standard seat pan, 17 1/2" front seat height, 5" polyurethane casters, 7” caster fork, rear mag wheel (size of rear wheel-user choice), quick release axles, push to lock wheel locks, brake extension handles, footrests (footrest style-user choice), footplates (footplate style-user choice), non-folding backrest, standard type push handle, armrests (armrest style-user choice), rear anti-tippers. Optional Upgrades: seat cushion, back cushion and headrest are optional upgrades.

Description

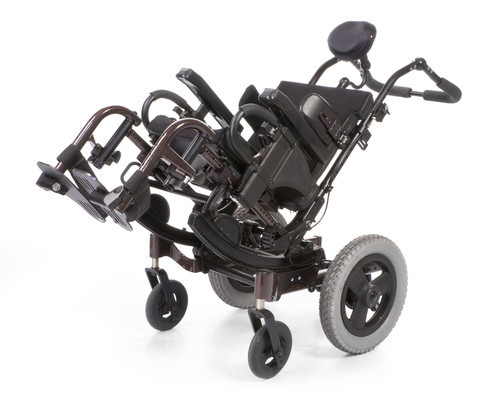

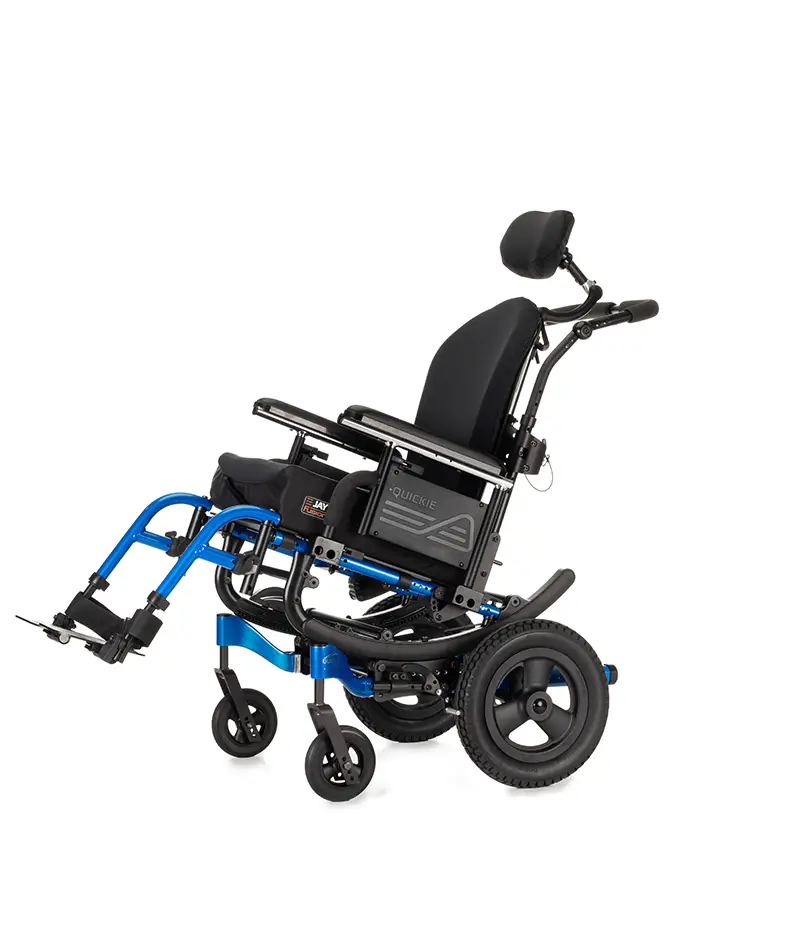

The ultimate tilt-in-space wheelchair, the Quickie IRIS® Manual Tilt Wheelchair features up to 55° of Intelligent Rotation in Space Technology, the broadest range of positioning and caregiver options, numerous adjustments, and it's one of the lightest tilt-in-space wheelchairs available today.

Features
- Tilt-in-space
- 40 degree or 50 degree of intelligent rotation
- Intuitive Hanger Designs
Sunrise Medical

Sunrise Medical is a world leader in the development, design, manufacture and distribution of manual and powered wheelchairs, mobility scooters and both standard and customized seating and positioning systems.
Specs
- Tilt-in-space
- Aluminum
- 39 lb. product weight
- Seat Width 14" to 22"
- Seat Depth 14" to 22"
- Front Seat to Floor Height 12.5" to 19"
- Rear Seat to Floor Height 12.5" to 19"
- Weight Limit: Standard- 300 lbs./ Heavy Duty- 400 lbs.
Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.

c-
Rear Seat to Floor

Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.

D-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular

E-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

F-
Wheel Camber

Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.

G-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

I-
Center of Gravity

Measure from the front of the seat back post to the center of the rear axle.

J-
Seat to Footrest Length

Measure from the edge of the seat upholstery to the top rear of the footrest.

K-
Backrest Angle

Measure the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurement for every .5" of dump
Warranty Information
A. FOR LIFETIME
Frame and cross-brace (if applicable) warranty:
1. Although the anticipated useful service time of this wheel- chair is five years, Sunrise guarantees the frame and cross brace against defects in material and workmanship for life or for as long as the original purchaser owns the chair.
2. This warranty does not apply if:
  1. The chair is subject to abuse
  2. The chair is not maintained as recommended in the owner's manual
  3. The chair is transferred to a different person from the original owner
B. FOR ONE (1) YEAR
We warrant all Sunrise-made parts and components of this wheel- chair against defects in materials and workmanship for one year from the date of first consumer purchase.
Backrest Tension Adjustable
Each Backrest Tension Adjustable is carefully inspected and tested to provide peak performance. Every Backrest Tension Adjustable is guaranteed to be free from defects in materials and workmanship for a period of twelve months from the date of purchase, provided normal use. Should a defect in materials or workmanship occur within twelve months from the original date of purchase, Sunrise Medical will, at its option repair or replace it without charge. This warranty does not apply to puncture, tears or burns.
Claims and repairs should be processed though the nearest authorized supplier. Except for express warranties made herein, all other warranties including implied warranties of merchantability and warranties of fitness for particular purpose are excluded. There are not warranties which extend beyond the description of the face hereof. Remedies for breach of express warranties herein are limited to repair or replacement of the goods. In no event shall damages for breach of any warranty included any consequential damages or exceed to the cost of non-conforming goods sold.

C. LIMITATIONS
1. We do not warrant:
  1. Tires and tubes, upholstery, pads and push-handle grips.
  2. Damage from neglect, accident, misuse, or from improper installation or repair.
  3. Products modified without Sunrise Medicals express written consent.
  4. Damage from exceeding the weight limit.
2. This warranty is VOID if the original chair serial number tag is removed or altered.
3. This warranty applies in the USA only. Check with your supplier to find out if international warranties apply.
4. This warranty is not transferable and only applies to the first consumer purchase of this wheelchair through an authorized Sunrise medical dealer.
D. WHAT WE WILL DO
Our sole liability is to repair or replace covered parts. This is the exclusive remedy for consequential damages.
E. WHAT YOU MUST DO
1. Obtain from us, while this warranty is in effect, prior approval for return or repair of covered parts.
2. Return the wheelchair or part(s), freight pre-paid, to Sunrise Medical at: 2842 Business Park Avenue, Fresno, CA 93727-1328.
3. Pay the cost of labor to repair, remove or install parts.
F. NOTICE TO CONSUMER
1. If allowed by law, this warranty is in place of any other warranty (written or oral, express or implied, including a warranty of merchantability, or fitness for a particular purpose).
2. This warranty gives you certain legal rights. You may also have other rights that vary from state to state.
