Jazzy Elite ES

(No reviews yet) Write a Review

SKU: PRJazzy Elite ES

Jazzy Elite ES

(No reviews yet) Write a Review

SKU: PRJazzy Elite ES

Description

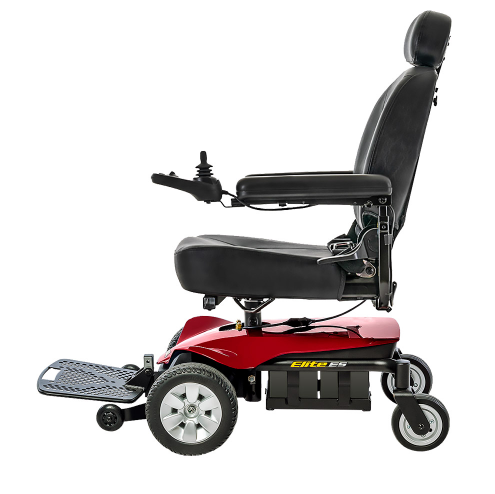

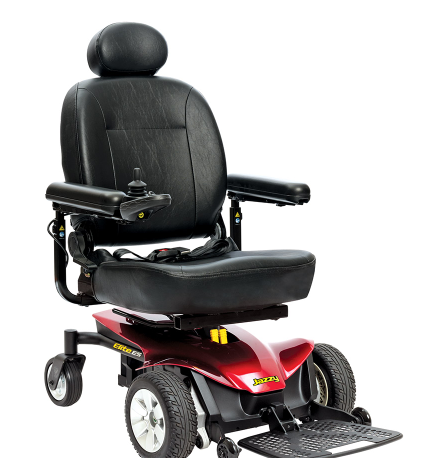

JAZZY ELITE ES

An experience so superior, it can only be elite. The Jazzy® Elite ES features large, front-drive wheels to absorb the bumps and uneven surfaces of everyday life. The comfortable, high-back seat gives you the support you need all day, every day.

Pride Mobility

It's more than an electric wheelchair. Jazzy Power Chairs are built to meet the needs of everyday people in the real world. From extremely portable power wheelchairs, to rugged models with suspension components, to bariatric power chairs, there is a Jazzy Power Chair for every person and lifestyle. Discover why the Jazzy Power Chair is America's #1 power wheelchair.

OVERVIEW

The Jazzy® Elite ES delivers a reliable blend of power, performance and style for your active lifestyle.

The in-line, front-wheel drive technology provides tight turns around corners for optimal indoor maneuverability in small spaces and large front wheels for extra absorption over obstacles.

With superb climbing capabilities combined with front anti-tip wheels for transitioning over grade changes easily, the Jazzy Elite ES handles various terrains with ease.

In-line, front-wheel drive technology
40 amp, PG GC 3 controller
Simple main frame design for easy serviceability
Comfort high-back seat with headrest
Jazzy® Armor® controller guard to protect from daily wear and tear
Basic Jazzy Armor shroud decals

* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.*

FEATURES

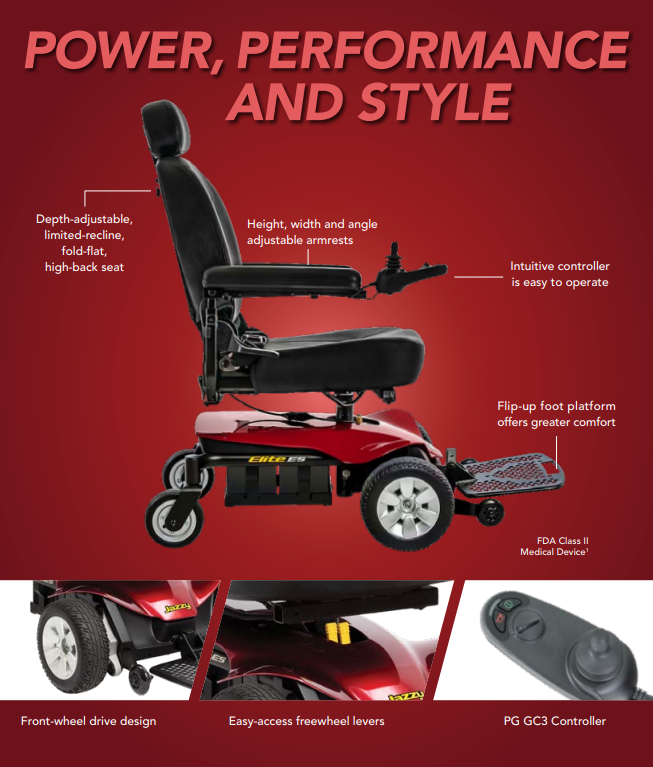

Depth-adjustable, limited-recline, fold-flat, high-back seat
Universal, fixed, in-line joystick mount
Flip-up foot platform

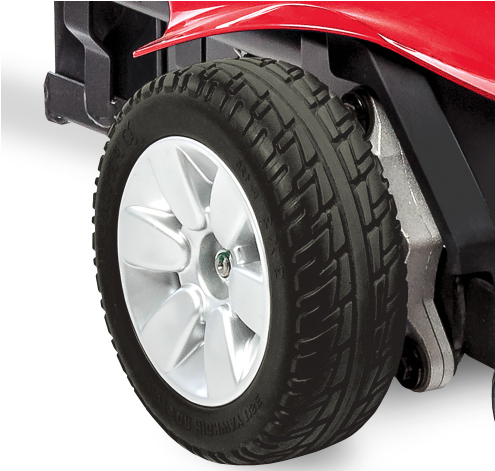

Black, flat-free, non-marking tires
Easy-access free-wheel lever
60" lap belt

COLOR

Candy Apple Red

SPECIFICATIONS

Model	Jazzy® Elite ES
Weight Capacity	300 lbs.
Turning Radius¹	24.75"
Width¹	22.75"
Length¹^,²	34.75"/41" (with footplate)
Maximum Speed³	Up to 4 mph
Ground Clearance¹	1.85" at motors
Front Wheels	3" solid anti-tips
Drive Wheels	9" solid
Rear Wheels	6" solid casters
Drivetrain	Two-motor, in-line, front-wheel drive
Braking System	Regenerative and electro-mechanical
Suspension Type	Limited
High-Back Seat (max. size)	20"W x 20"D
High-Back Seat-to-Floor Range	21.5" - 23.5"
Standard Electronics	40A, PG GC3
Battery Size (2 required)	12 volt, U-1
Standard Battery Charger	3.5A, off-board
Per-Charge Range³^,⁶	Up to 15 miles
Battery Weight⁵	25 lbs. each
Weight of Heaviest Piece⁴	69 lbs.
Standard Seat Weight	50.2 lbs. (comfort, high-back)
Standard Seat Size	16"x16"-18"; 18"x18"-20"; 20"x18"-20"
Medicare Code Coverage	Group 2: Standard (K0822/K0823)
Warranty	5-year limited warranty on frame; 13-month limited warranty on electronics; 13-month limited warranty on drive motors; 13-month limited on batteries
Notes: ¹ Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. ² Without front riggings. ³ Varies with user weight, terrain, battery type, battery condition and tire pressure. ⁴ Does not include seat or battery weights. ⁵ Battery weight may vary based on manufacturer. ⁶ Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.

Service Contracts

1-Year In-Home Service- (INCLUDED)

Build My Wheelchair In-Home Service Contracts

Our In-Home Service Contracts cover labor costs for repairing your Power Wheelchair using replacement parts that fall under the manufacturer’s warranty. For warranty details, please refer to the Warranty Tab. If you encounter an issue, contact us for assistance. After diagnosing the problem, if we cannot resolve it over the phone, we will order the necessary warranty parts and dispatch a certified technician to your home if needed.

Important: Service contracts do not extend the warranty on replacement parts. They also do not cover maintenance, adjustments, calibrations, return services, or repairs for parts not covered by the manufacturer’s warranty, except for electronic controllers, motors, gearboxes, and battery replacements. If you have a service agreement and need to purchase any of these components, your In-Home Service Contract will cover the labor costs.

2-Year In-Home Service- (OPTIONAL UPGRADE)

Build My Wheelchair In-Home Service Contracts

Our In-Home Service Contracts cover labor costs for Power Wheelchair repairs using replacement parts covered by the manufacturer’s warranty. For warranty specifics, please check the Warranty Tab. If you have an issue, reach out to us for support. If we can’t resolve it over the phone, we will order the required warranty parts and send a certified technician to your home as necessary.

Important: Service contracts do not extend the warranty on replacement parts and do not include maintenance, adjustments, calibrations, return services, or repairs for non-warranty parts—except for electronic controllers, motors, gearboxes, and battery replacements. If you need to purchase these parts, your service agreement will cover the labor for installation.

3-Year In-Home Service- (OPTIONAL UPGRADE)

Build My Wheelchair In-Home Service Contracts

Our In-Home Service Contracts include labor costs for repairing your Power Wheelchair with manufacturer-covered replacement parts. For warranty information, please refer to the Warranty Tab. If you encounter any issues, contact us for assistance. If we can’t fix the problem over the phone, we’ll order the necessary parts and, if needed, send a certified technician to your home.

Note: Service contracts do not extend the warranty for replacement parts and do not cover maintenance, adjustments, calibrations, returns, or repairs for parts not under warranty—except for electronic controllers, motors, gearboxes, and battery replacements. If you need to purchase these parts, your contract will cover the labor for installation.

Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration.

C-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.

D-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

E-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never footpropelled by the user - so excluding the additional two-inch footrest height for propelling is very rare.
Warranty Information
Warranty
- 5-Year limited warranty on frame
- 13-month limited warranty on electronics
- 13-month limited warranty on drive motors
- 13-month limited warranty on batteries
Download Warranty Insert
