Description

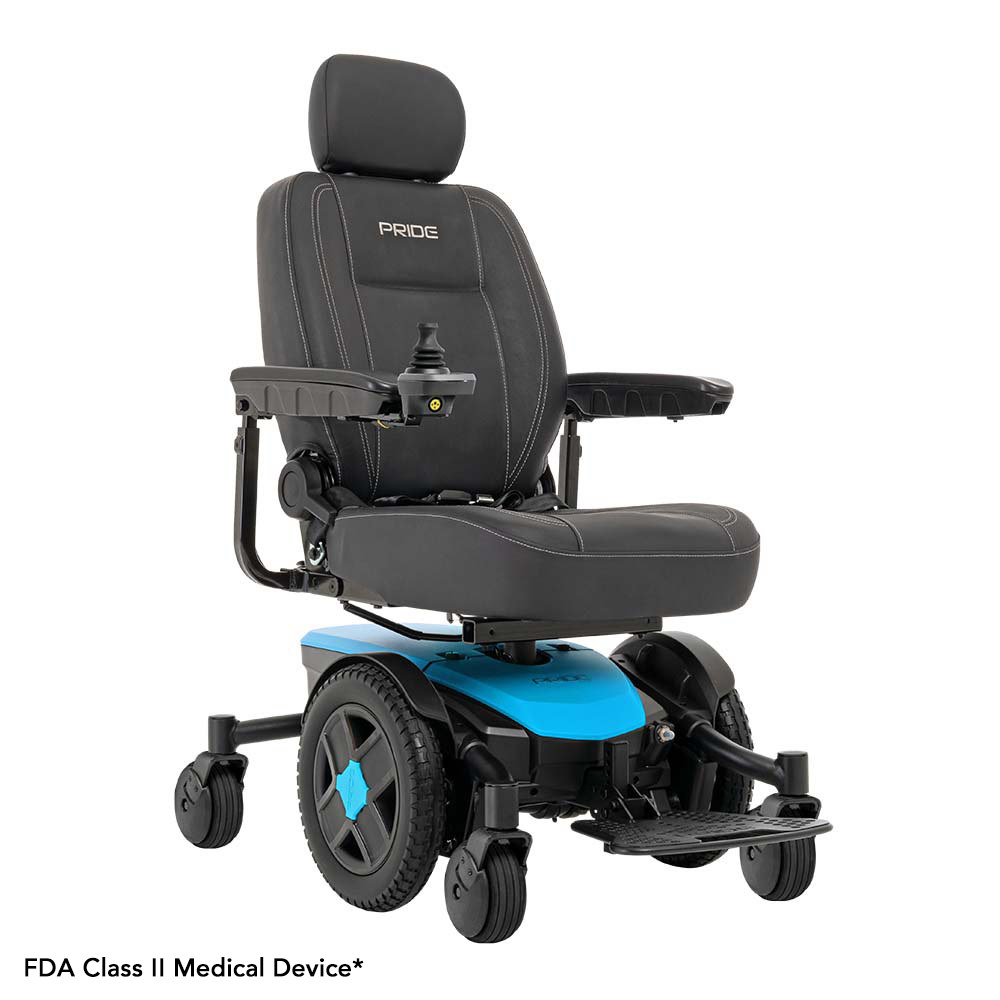

Breaking down barriers with the Jazzy EVO 613 Power Chair series
The Jazzy® EVO 613 and Jazzy® EVO 613Li measure in at an impressive 22 inches wide at the base and offer a 22-inch turning radius. Not only is it one of the most powerful power wheelchairs on the market, but it’s also one of the narrowest and most maneuverable.
The Jazzy EVO 613 series gives you all the best that Pride has to offer with patented Active-Trac Suspension and exclusive Mid-Wheel 6® Technology that provide you with a smoother, stable ride.
And it does all that while pushing the limits of mileage and speed capabilities. A single charge can carry you up to 21 miles with the lithium battery, and top speeds up to 5.1 mph.
The Jazzy EVO 613 series of power wheelchairs with lithium batteries represent a philosophy we share here at Pride Mobility. If you’re not constantly improving, ever innovating, and pushing boundaries, you might as well fall behind.
The Jazzy EVO 613 stands on the shoulders of the industry-defining designs of its forebearers. Powerful lithium batteries last longer, charge faster and weigh less. The Jazzy EVO 613 has a futuristic design, with edgy lines and sharp colorways, giving you extra confidence.
It’s not just a mobility device – the Jazzy EVO 613 power wheelchair becomes a personal statement. Like us at Pride, you also believe that the pursuit of progress is a way of life.
Comfort and convenience with the Jazzy EVO Series
Adjust your seat depth, swivel, recline and set the armrests to the ideal position. Choose from three available seat sizes in 16-inch, 18-inch, and 20-inch widths with memory foam.
Jazzy Evo 613 Li Features:
- 300 lb. weight capacity
- Narrow base width of only 22"
- Maximum speed up to 5.1 mph
- 3" Ground clearance for
- 13" solid drive tires
- Per charge range up to 17 miles with U1 SLA batteries and up to 21 miles with lithium ion (200 lbs.)
- Mid-wheel 6® Technology offers tight turning radius around doorways and corners
- Pride's patented Active-Trac (ATX) Suspension ensures a smooth ride experience over uneven surfaces
- Memory foam high-back seat with single seat post allows the user to swivel
- Available depth-adjustable seat sizes: 16" W x16"-18" D, 18" W x 18"-20" D, 20" W x 18"-20"
- Height, width, and angle adjustable armrests
- Flip-up, height, angle, and depth adjustable foot platform
- Removable matte-finish color-through shrouds
- HCPCS Code: Group 2: Standard (K0822/K0823)
Specifications
Jazzy® Evo 613 Li SpecificationsFDA Class II Medical Device*
CATEGORY SPECIFICATION Model Jazzy® EVO 613/ Jazzy® EVO 613 LiWeight Capacity 300 lbs. Turning Radius3 22" Width3 22" Length3 41" w/footplate 35" w/o footplate Maximum Speed2 Up to 5.1 mph Ground Clearance3 3" at motor bracket Front Wheels 5" solid Drive Wheels 13" solid Rear Wheels 5" casters Drivetrain Two motor, in-line, mid-wheel drive Braking System Regenerative and electro-mechanical Suspension Type Active-Trac® (ATX) Standard Seat Sizes High-back
Black vinyl
16"x16"-18", 18"x18"-20", 20"x18"-20"Seat-to-Floor Range 19.75"-21.25" Seat Weight(s)3 46 lbs. (16"), 48 lbs (18"), 50 lbs. (20") Maximum Seat Size 20"-20" Power Elevating Seat NA Standard Electronics 40A, PG GC3 Battery Size(s)4 (2) 12 volt, U-1 or (1) 25V Lithium-iron phosphate Battery Weight6 (2) U1-23.5 lbs. each; (1)Lithium - 18.5 lbs. Battery Charger 3.5A, off-board Per Charge Range2,3,5 SLA- up to 14 miles (300 lbs.), up to 17.1 miles (200lbs,); Lithium up to 17.6 miles ( 300 lbs.), up to 21 miles (200lbs.) Weight of Heaviest Piece7 94 lbs. (base) Total Weight 189 lbs. . (SLA); 160.5 (Lithium) HCPCS Code Group 2: Standard (K0822/K0823) Warranty Frame: 5-year limited; Drivetrain: 13-month limited; Electronics: 13-month limited; Batteries: 13-month limited (SLA); 3-year limited (Lithium) Colors Black (matte), White (matte), Red (matte), Iceberg Blue (matte), Robin's Egg Blue (matte), Sugar Plum (matte)
Notes:
1Jazzy Power Chairs are FDA class II Medical Devices designed to aid individuals with mobility impairments
2Varies with user weight, terrain type, battery amp-hour(AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%).
3Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+/* 3%).
4AGM or gel cell type required.
5Tested in accordance with ANSI/RESNA, WC Vol2, section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
6Battery weight may vary based on manufacturer.
7Weight includes base, seat and batteries.HCPCS codes provided should not be considered as legal advice and do not guarantee reimbursement. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement
The information contained herein is correct at time of publication; we reserve the right to alter specifications without prior notice.
NOTE: All specifications subject to change without notice. The information contained herein is correct at the time of publication, we reserve the right to alter specifications without prior notice.
Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or 3-%.
Special order seats or non-standard dimensions will not be fold-flat and depth-adjustable. -
Size Chart / measuring guide
- Videos
-
Warranty Information
Jazzy® Evo 613 Li Testing Standards & Warranty FDA Class II Medical Device* Meeting and Exceeding High Standards for your Peace of Mind. Your Pride product has undergone thorough product testing to ensure safety, durability and performance. Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use. The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA). The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team. All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride. Some of the items our testing criteria include are: Product Stability & Brakes Effectiveness Tests Fatigue & Impact Strength Verification Tests Overall Product Performance Verification Dimensional Requirement Compliance Product Durability & Reliability Testing Material Protective Coating Testing Verification Misuse and Abuse Testing Ergonomic Verification Environmental Testing for Adverse Weather Operation Conditions Electronic Systems Performance and Durability Chemical and Bio-Contamination Analysis Testing for Toxicity Verification Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components UL94VO Flammability Testing for Compliance of Plastic Components Electromagnetic Compatibility (EMC) Warranty 5-Year limited warranty on frame 13-month limited warranty on electronics 13-month limited warranty on drive motors 13-month limited warranty on batteries Download Warranty Insert
