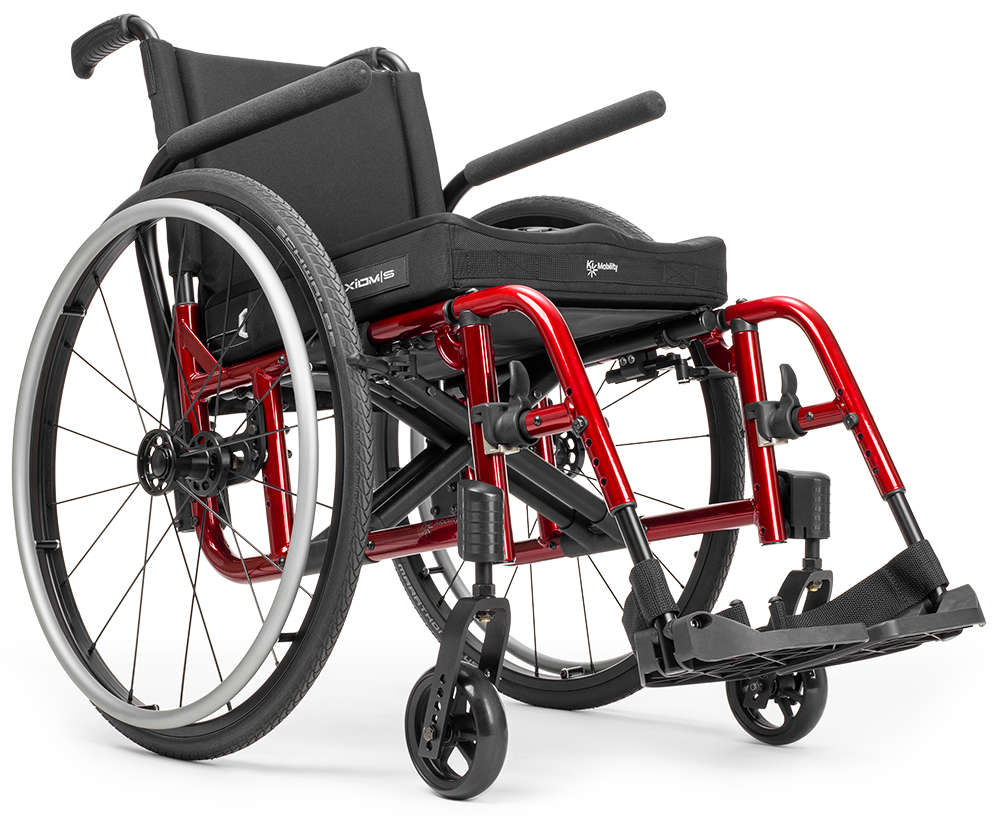

Ki Mobolity's flagship product, the Catalyst 5 has since redifined the ultra-lightweight folding market by raising the bar in weight, performance, durability and functionality. Weighing in at 20.8 lbs. and constructed from ultra-lightweight 7000 series aluminum, the Catalyst 5 is arguably the best choice in high-performance folding wheelchairs. With our largest selection of options to help you customize and configure your chair, the Catalyst 5 makes daily life easier, no matter what the day brings.
While every model in the Catalyst family has a different axle plate with adjustment capabilities unique to each, they all take advantage of the same innovative design features that set them apart from other frames in the market. From the patented frame design constructed from 7000 aluminum to the dual interlocking cross braces with a power x-hinge, there truly is a "Catalyst Difference".
THERE IS A CATALYST DIFFERENCE
While every model in the Catalyst family has a different axle plate with adjustment capabilities unique to each, they all take advantage of the same innovative design features that set them apart from other frames in the market. From the patented frame design constructed from 7000 series aluminum to the dual interlocking cross braces with a power x-hinge, there truly is a "Catalyst Difference".

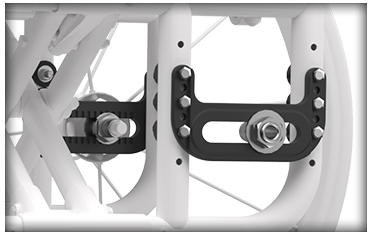

UNIVERSAL AXLE PLATE
The Universal Axle Plate does it all. Achieve seat-to-floor heights in 1/2" increments and adjust CG over a 3" range. With a more rigid design than its competitors, Catalyst 5 offers the best performing ride in its class.
300 LBS STANDARD WEIGHT CAPACITY
Light is great but lighter AND stronger is better. Catalyst 5 has a mere transport weight of 12.8 lbs*and a standard weight of 20.8 lbs. Did we mention it has a 300 lbs standard weight capacity? That makes Catalyst 5 the lightest AND strongest folding wheelchair in the K0005 category.
FRONT FRAME STYLES
The lightweight easy-to-use patented hangers now offer multiple hanger release options to further optimize chair setup for the client or caregiver. Did we mention, it's the ONLY hanger with a lifetime warranty!

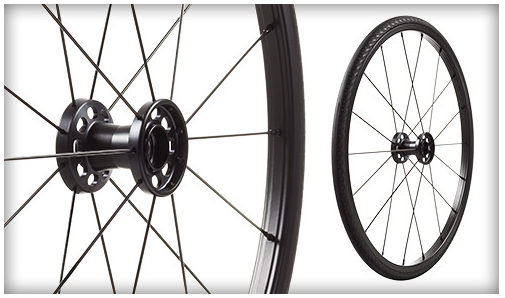

MAXX SPOKE
Maxx is our new spoke wheel that offers performance and style without a high price tag. It features eighteen radial spokes and a high flange hub that result in increased rigidity for a more responsive, better performing wheel. The heightened level of responsiveness combined with a lightweight design give the rider the most from every push. Constructed with a 6061 series aluminum rim and straight steel spokes with a durable black satin finish for a look and feel that is anything but standard.
Mag
Made of a high-quality magnesium alloy, our Maxx Mag wheel design is not only lighter and more rigid than other mag wheels on the market, it is also available in 21 colors!
Save up to one inch of overall chair width creating better maneuverability in doorways and tight spaces.

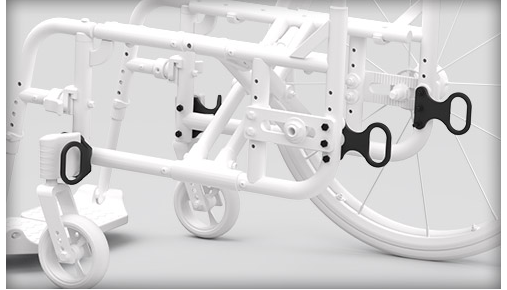

TRANSIT APPROVED
Transit Tested and approved. User weight capacity up to 300 lbs.

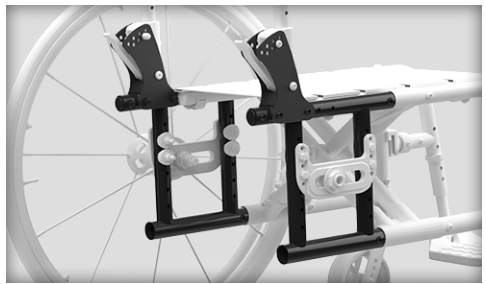

Depth Adjustable Frame
This rear frame option includes depth adjustability, a fold-down back and up to 32° of angle adjustability.
Features
Folding Frame
Innovative Frame Design
Universal Axle Plate
Swing Away Hangers
Maxx Performance Spoke
KI Mobility
Better by Design is a simple statment that expresses what's behind our approach to all of our products and services. Throughout our history we have focused on providing the assistive technology professional with products and services that makes their job easier. It just didn't happen. We designed it this way.
Folding Frame
7000 series aluminum
12.8 lb. transport weight
Seat Width 14"-22"
Seat Depth 14"-20"
Front Seat to Floor Height 13.5"to 21"
Rear Seat to Floor Height 11" to 20"
Weight Limit: Standard- 300 lbs./ Heavy Duty- 350 lbs.
Measure from the most posterior point of the body to the inside of the knee, minus at least two inches.
Some prefer more leg overhang to make room for their hand when lifting their leg.
B-
Back Height
Measured from the seat base to the top of the wheelchair back. Depends on how much upper back
support is needed, and also affects freedom for the upper body to rotate.
c-
Rear Seat to Floor
Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this
determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
D-
Hanger Angle
Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle
allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend
towards the perpendicular
E-
Seat Width
Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move.
Consider bulk of clothing, particularly a heavy winter coat, if relevant.
F-
Wheel Camber
Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits
ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
G-
Front Seat to Floor
Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the
cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add
the footrest clearance if the wheelchair will be foot-propelled.
H-
Footrest Width
Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.
H-
Footrest Width
Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.
I-
Center of Gravity
Measure from the front of the seat back post to the center of the rear axle.
J-
Seat to Footrest Length
Measure from the edge of the seat upholstery to the top rear of the footrest.
K-
Backrest Angle
Measure the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to
approximate the angle from the back post to the seat, subtract two degrees from measurement for every
.5" of dump
Ki Mobility warrants the frame and quick-release axles of this wheelchair against defects in materials and workmanship for the life of the original purchaser. All other Ki Mobility-made parts and components of this wheelchair are warranted against defects in materials and workmanship for one year from the date of first consumer purchase.
