Description

POWER IN EVERY DIRECTION

Twist redefines power-assist mobility—not simply to go farther, but as a system that understands how you want to move. By blending natural user input with precision-engineered assistance, Twist delivers a power experience unlike anything else. Whether mounted in the front or rear, it unlocks a new standard of versatility, confidence, and control—making it the first compact, multi-function power assist accessory built to move with you, not just for you.

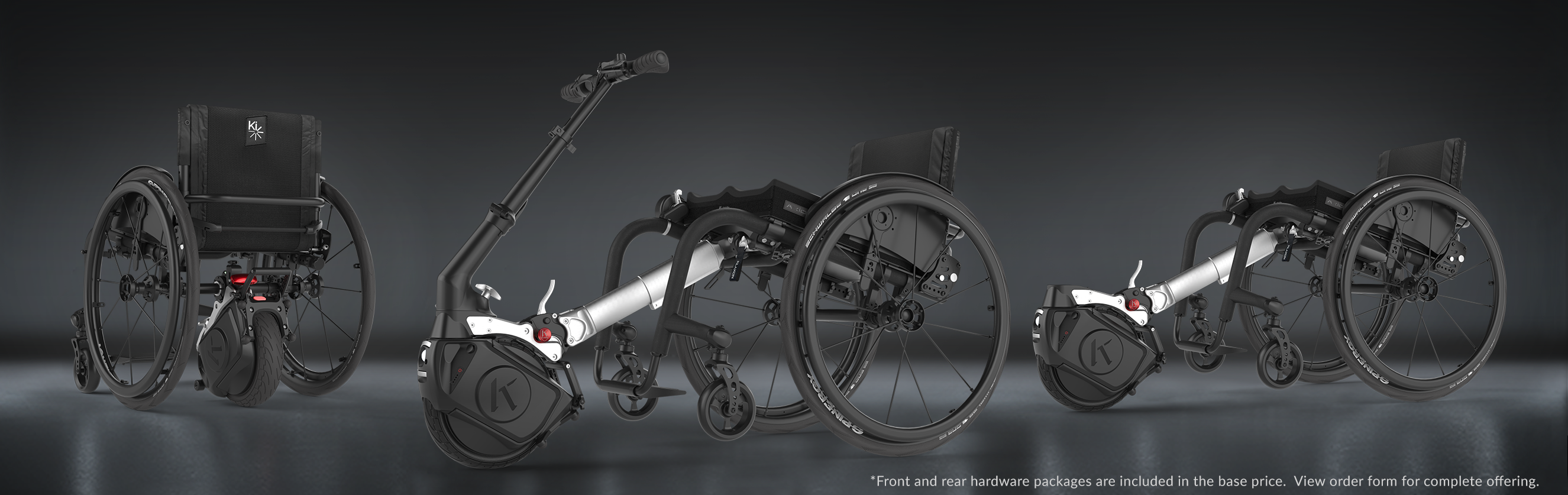

VERSATILITY THAT CHANGES YOUR WORLD

Twist transitions between rear (push) and front (pull) configurations entirely at ground level—no lifting required. The rear position offers compact, low-speed maneuverability for indoor settings. Front positions increase ground clearance, enable consistent downhill speed control, and introduce motor braking for stopping via the side button on the Multi-Function Controller (comes standard). An optional foldable handlebar adds steering stability, increases speed capacity to 9 mph, and integrates a mechanical disc brake. Simply move Twist from rear to front and attach the optional handlebar.* As a power assist accessory (E0986), Twist promotes the reduction of stress and fatigue on your body and shoulders.

PRECISION IN TIGHT SPACES

When rear mounted, Twist is a compact package. Ideal for offices, restaurants, public transportation, schools, and in-home. Smart Speed Behavior enhances the ride experience. Simply set a desired speed, and Twist responds with the power to match. When resistance is applied at the rims—whether to steer, slow, or stop—Twist reduces motor output. As that resistance eases, the system re-accelerates smoothly back to the set speed. Acceleration, top speed, and motor sensitivity are fully programmable.

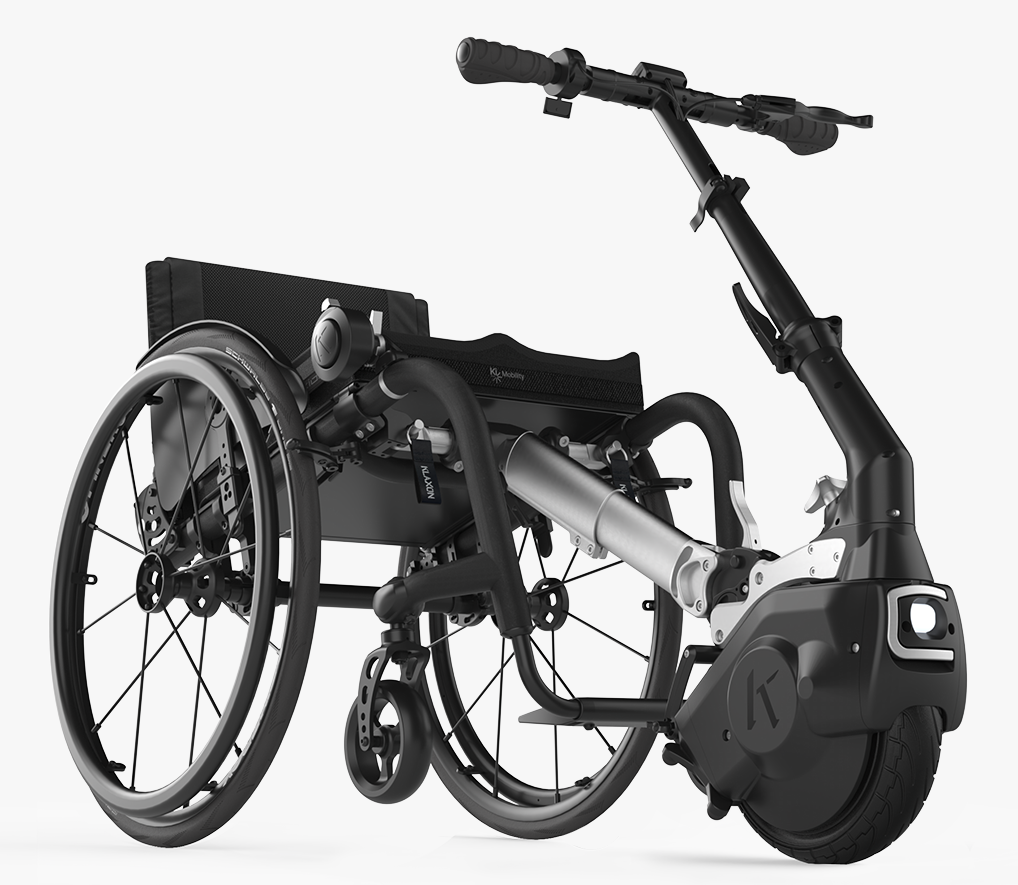

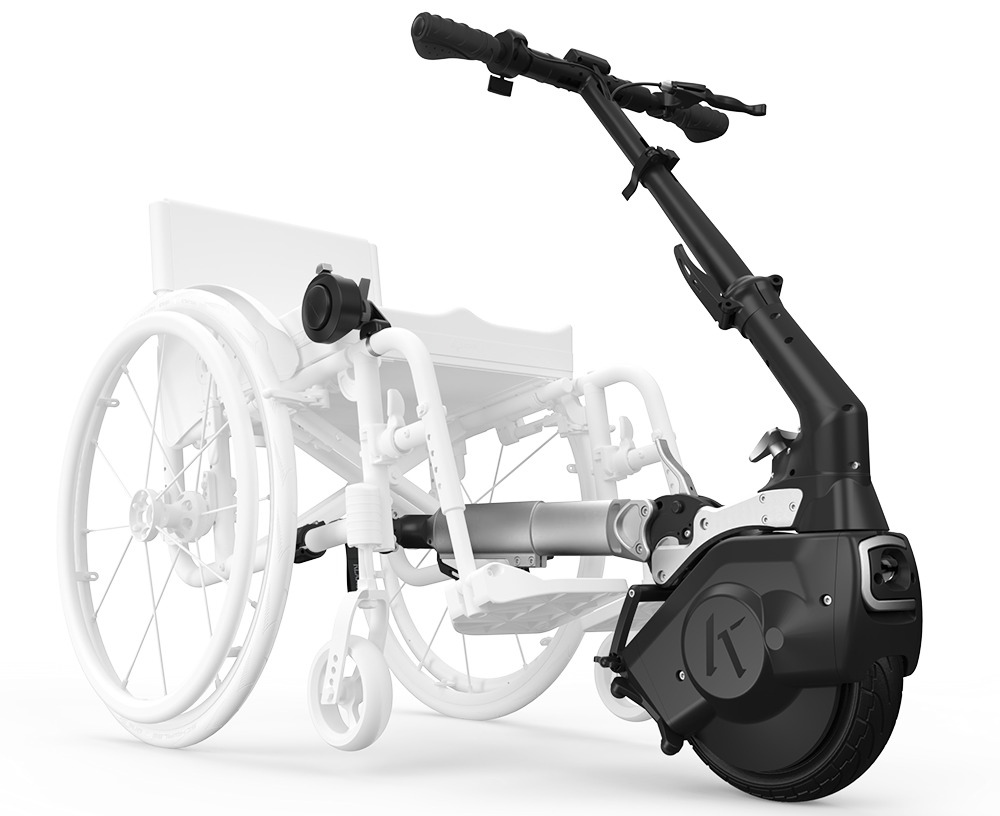

FRONT MOUNT VERSATILITY

Twist can switch between pushing from the back and pulling from the front—no lifting required. Engineered for outdoor performance, the front setup lifts the casters off the ground, delivering a smooth, stable ride—giving you the freedom to take on distance, terrain and improve obstacle clearance. For easier steering, going longer distances, and a mechanical disk brake for strong safe stops, add the optional foldable handlebar to your Twist.

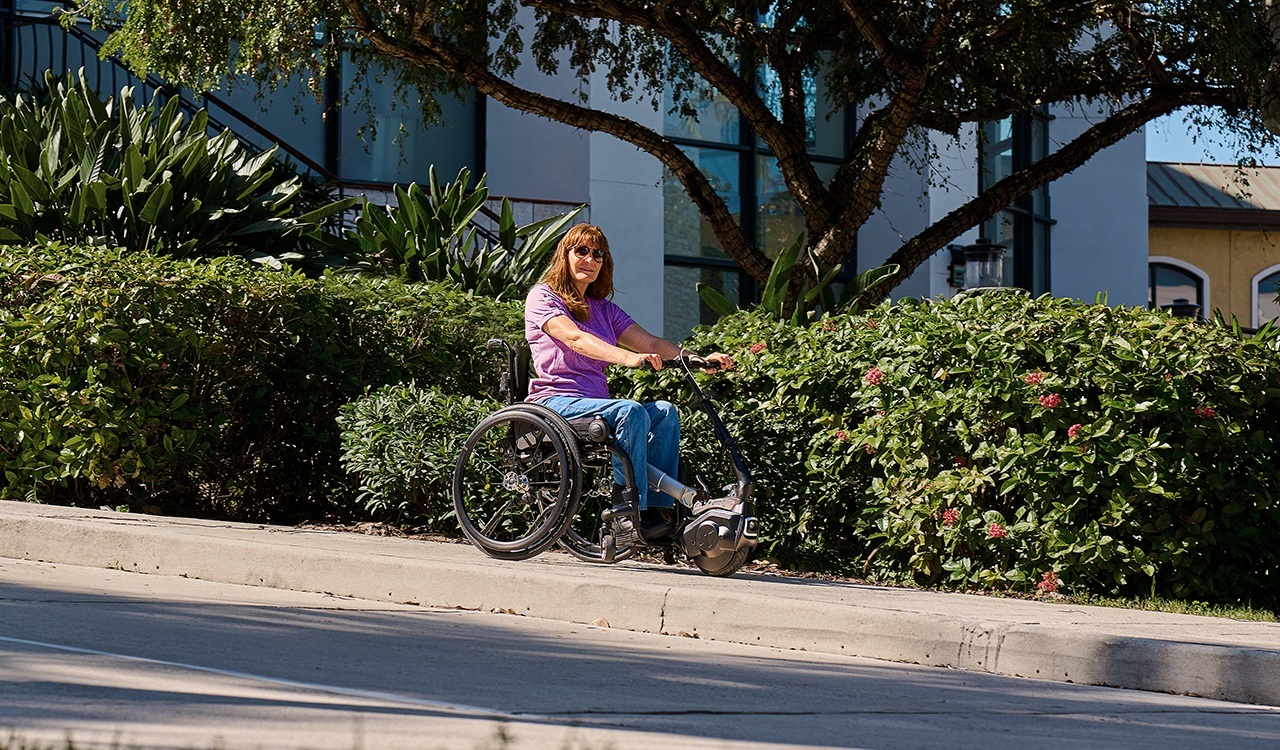

SPEED CONTROL: UP AND DOWN

When going up an incline, Climb Assist Mode provides consistent drive experience, easily re-engage adaptive speed behavior with a single button tap on the Multi-Function Controller.

FOLD, STOW AND GO

Innovation that creates everyday ease is what you will experience with Twist’s ingeniously designed Folding Handlebar. Engineered for real-world convenience, it attaches effortlessly, folds down in seconds, and stows neatly—no tools, no hassle. Lightweight yet durable, the handlebar enhances control and maneuverability on longer rides or varied terrain. When not in use, the handlebar fits easily into the carry bag – making it the perfect travel companion for riders on the go.

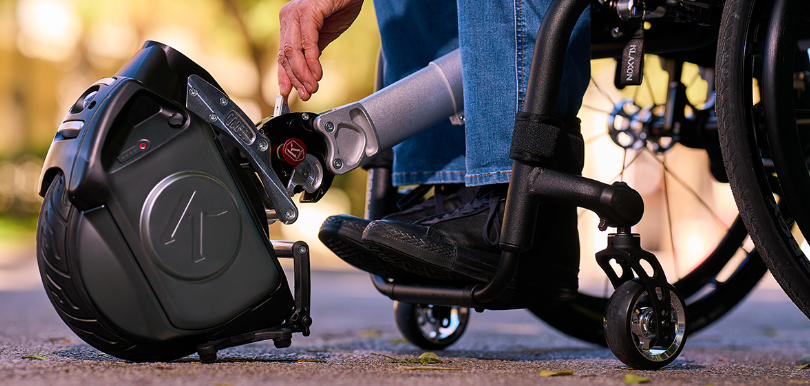

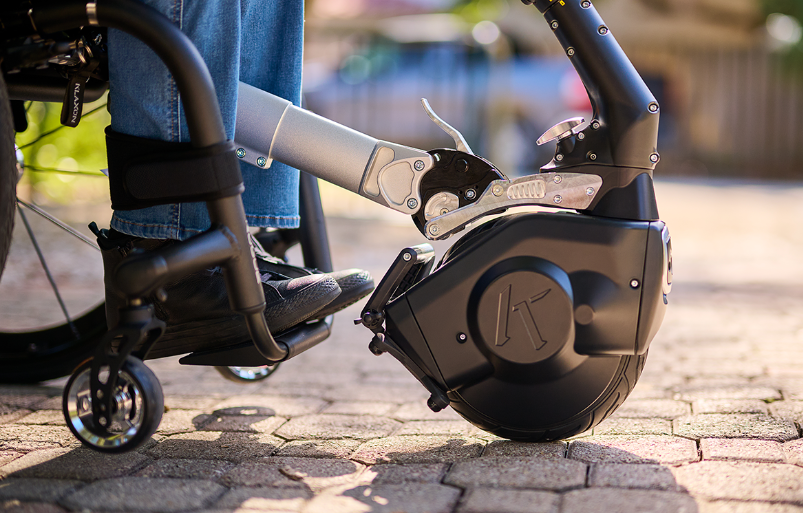

EFFORTLESS AND RELIABLE CONNECTION

Twist connects to all types of manual wheelchairs, both rigid and folding, using the patented Linking System Klaxon®. The innovative, high-quality design of the linking system provides easy front and rear attachment. The audible latch acknowledgement ensures you know when you are ready to go.

CONTROL AT YOUR FINGERTIPS Whether as rider or cargiver, control is right in front of you

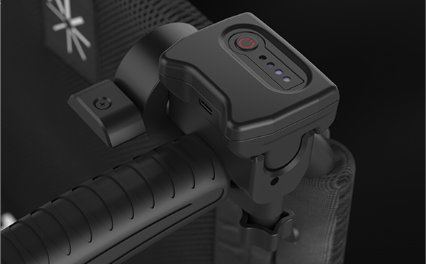

BLUETOOTH CARGIVER CONTROL

Attendant Controller offers toolless mounting and a user-friendly design: a simple push on the accelerator activates the motor, and releasing instantly stops the motor thrust for a natural decrease in speed. A great addition to your Twist for full or part-time caregiver assistance. Easily define and differentiate Caregiver control settings int the Klaxon app.

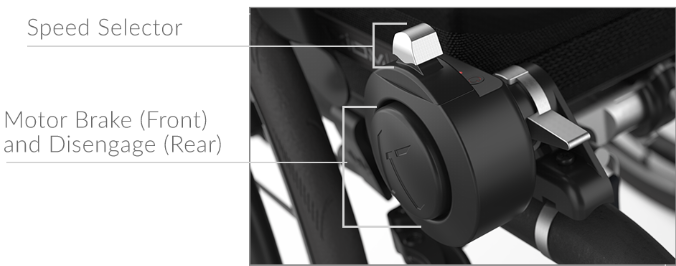

BLUETOOTH CONTROLLER

Twist's Multi-Function Controller features a natural-motion toggle: forward to accelerate, backward to slow or stop. Power modulation scales motor output in real time based on resistance at the rims, enabling natural steering and braking. All performance parameters - including acceleration, top speed, and responsiveness - are programmable to match individual needs. Climb Assist Mode provides steady, uninterrupted propulsion for inclines and ramps, reverting to adaptive control with a single tap. LED display and audible feedback enhancements create an informed and intuitive experience.

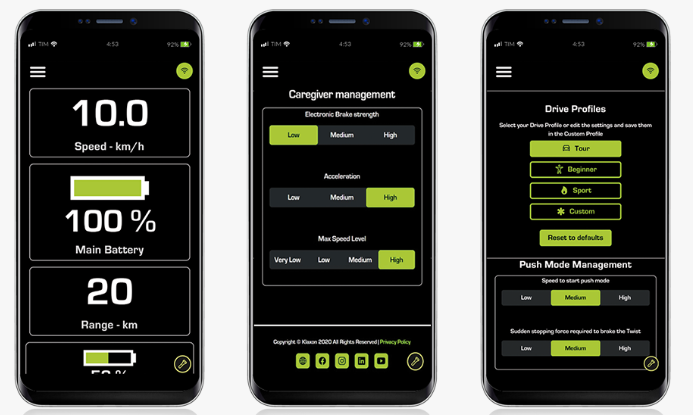

SMART, PERSONALIZED CONTROL - KLAXON® APP

The Klaxon app puts customization at your fingertips—offering intuitive control over speed, braking, and power settings. View real-time usage stats, monitor battery performance, and fine-tune the driving experience to match personal preferences, abilities, or environmental needs.

For added convenience, Twist can be pre-programmed prior to delivery—so it is ready to go out of the box, based on pre-selected settings you choose at time of quote or order.

WHERE SAFETY AND QUALITY COME FIRST

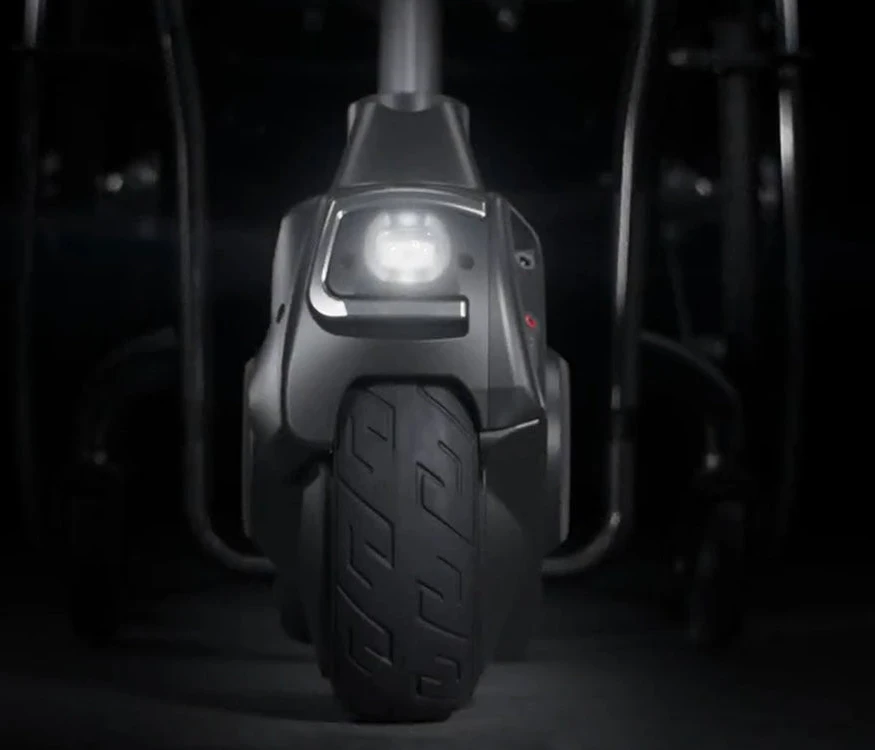

Designed and built in Austria, with the highest of quality standards and premium materials, Klaxon always puts your safety first. From the integrated LED lights, patented attachment system, and highly trained US based technical and service support staff– quality carries through the product, programming, and our support services to ensure you have the best experience possible and support when you need it most.

COMPATIBILITY

The universal mounting design for both front and rear applications work with most folding and rigid wheelchairs. When ordered with a Ki chair, you can indicate what hardware you would like pre-installed, as well as settings customized per your predefined specifications.

*Folding hardware can be easily removed to allow for folding.

OPTIONS

Twist Power Assist Base/ The Twist comes with both front and rear mounting systems, carry bag, removable Li-ion battery and Multi-function Toggle Controller.

SPECIFICATIONS

Possible Setups	Rear, Front, Front with Handlebar
Removable Battery	Lithium-ion 36V/144Wh/4Ah
Motor Power	700W
Wheel	10" Solid Tire (replaceable)
Connectivity	Bluetooth/WiFi
Transport weight of Hub	18.5 lbs/8.5 kgs**
Folding Handlebar Weight	5.3 lbs/2.4 kgs
Front Mounting Hardware Average Weight	6.6 lbs/3 kgs
Rear Mounting Hardware Average Weight	2.6 lbs/ 1.2 kgs
Maximum Speed - Front and Rear Mount	6 mph 10 km/h
Maximum Speed - Front Mount with Handlebar	6 mph - Standard 10 km/h 9 mph - Requires app opt-in 14 km/h
Maximum Reverse Speed - Front Mount with Handlebar	3 mph 5 km/h
Braking	Electronic and mechanical, dependent on attachment position. View User Instruction for more information
Maximum Travel Range	12mi/20km*
Twist Hub Dimensions	11.4" x 14" x 6.1" 290 x 355 x 155 mm
Maximum Negotiable Slope	Rear Mount: 15% (8.5º)* front Mount: 10% (5.7º)*
User Weight - Front Mount	265 lbs/120 kgs
User Weight - Rear Mount	309 lbs/140 kgs
Warranty	2 Years***
Chair width compatibility	12-20"
Chair depth compatibility	No Restrictions
Rear Wheel Size Compatibility	22", 24", 25", 26"****
Folding Wheelchairs	Yes
Rigid Wheelchairs	Yes
Indoor Use	Yes
Outdoor Use	Yes
HCPCS	E0986

*Performance measurements will vary based on user and chair characteristics, driving and battery condition(s).
**With battery removed.
***For traction device, linking system and hardware.
****Compatibility may vary by specific configuration of tire and rear seat height in combination with camber.
Klaxon Twist has been tested and conforms to all applicable requirements of ANSI/RESNA Standards for Wheelchairs - Volume 1 and Volume 2 and EN 12184.
For complete listing of specifications reference user instruction.
NOTE: Always remember that a wheelchairs configuration and specifications may be slightly affected by the addition of a power assist device, such as Twist. Please refer to your wheelchair User Instruction and the Twist User Instruction for more detailed setup, operation and care instructions for both products.

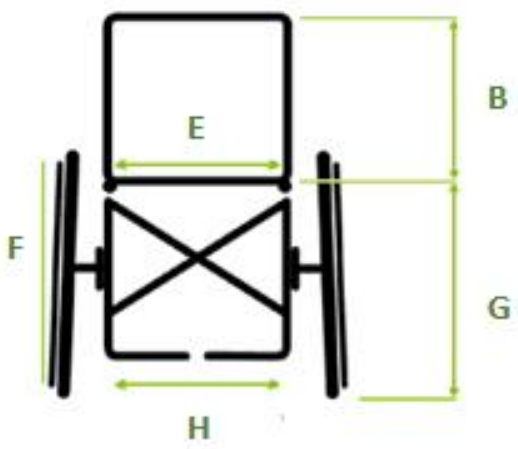

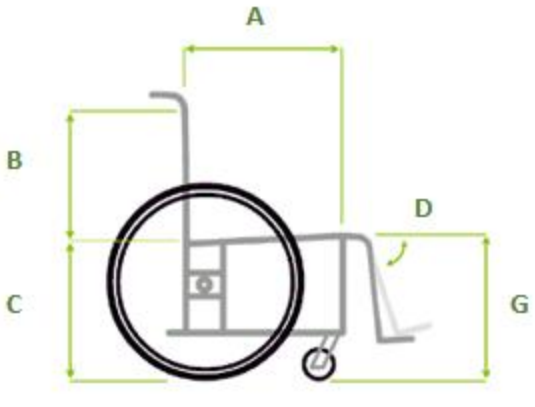

Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.

c-
Rear Seat to Floor

Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.

D-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular

E-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

F-
Wheel Camber

Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.

G-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

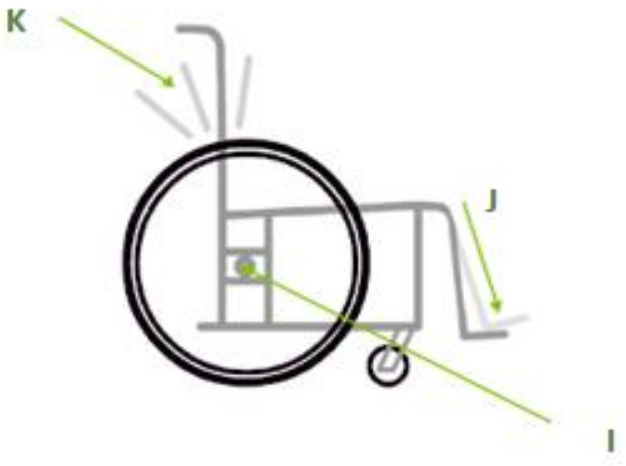

I-
Center of Gravity

Measure from the front of the seat back post to the center of the rear axle.

J-
Seat to Footrest Length

Measure from the edge of the seat upholstery to the top rear of the footrest.

K-
Backrest Angle

Measure the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurement for every .5" of dump
