Ki Mobility Little Wave Flip

(No reviews yet) Write a Review

SKU: KI - Little Wave Flip

Ki Mobility Little Wave Flip

(No reviews yet) Write a Review

SKU: KI - Little Wave Flip

Ki Mobility Little Wave Flip Package Includes: standard frame and seat frame (user choice), frame color (user choice), transit option included, 0 to 45 degree tilt function with foot release, standard growing seat pan, standard front seat height, 6" x 2” polyurethane casters, caster fork, rear mag wheel (size of rear wheel-user choice), quick release axles, dual-attendant foot lock wheel locks, footrests (footrest style-user choice), footplates (footplate style-user choice), standard folding stroller type push handle, armrests (armrest style-user choice), 1.5” auto buckle seat belt, rear anti-tippers. Optional Upgrades: seat cushion, back cushion and headrest are optional upgrades.

Description

FLIP THE SCRIPT ON ORDINARY

Designed to be as unique as your child.

When a child’s adaptive stroller no longer fits their unique seating and positioning requirements, Little Wave Flip is the answer. A pediatric tilt-in-space solution designed to look like a stroller but provide the technology of a wheelchair.

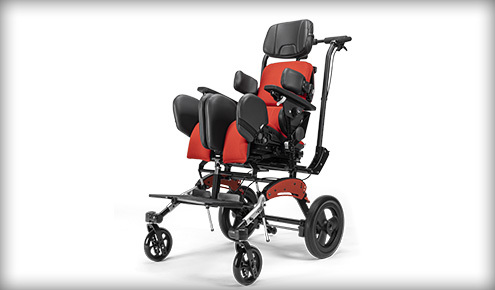

Expand Children's Horizons

The R82 x:panda shape pediatric seating system is designed to change shape as your child develops. Paired with the Little Wave Flip base, the combination promotes independence and active participation to fully embrace life's adventures. The LW Flip base offers the same benefits as LW flip with the added adaptor plate that makes adding and removing the x:panda shape seating, simple. Both units provide growth and adjustments, making the combination the perfect pair for your growing child. (To learn more about the x:panda shape visit etac.com).

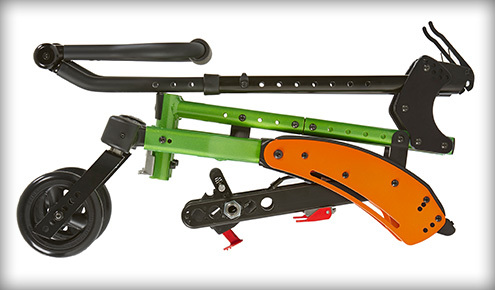

Put a flip to your fold

The Little Wave Flip integrates design elements from strollers into the durability of a wheelchair. Just because it is a wheelchair, does not mean it needs to look like one. From its flat folding design to its use of TAPER LOK technology, the Flip is simply the most advanced pediatric tilt in space available today.

Don't struggle with growth. Embrace it.

The Flip offers a paradigm in adjustability. Seat height, seat depth, and seat width have never been so easy to change, with fewer parts than any other chair.

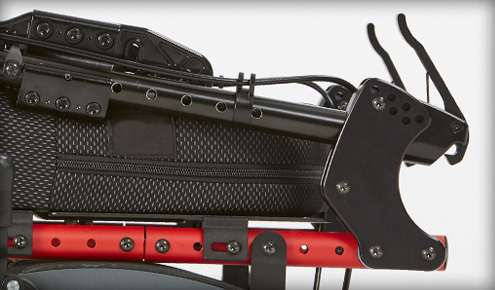

High Pivot Folding Back

By raising pivot point on the folding back, we’ve created the possibilities to leave more seating on the chair while folded.

Specifications

	Little Wave Flip	Flip for x:panda

Transport Weight	21 lbs* (9.5 kg)	32 lbs* (14.5 kg)
Seat Width	10" - 18" (25.4 - 45.7 cm)	16" (40.6 cm)
Seat Depth	12" - 20" (30.5 - 50.8 cm)	4" - 14" (11 - 36.3 cm)
Frame Width	NA	18"* (45.7 cm)
Frame Height	NA	18"* (45.7 cm)
Tubing Size	1" (2.54 cm)	NA
Tilt Range	0° - 45°	0° - 45°
Weight Capacity	165 lbs (74.8 kg)	129 lbs* (58.5 kg)
Transit Approved	Yes	Yes

* 14" x 14" Frame with Attendant Wheel Locks. Armrests, Rear Wheels and Footrests removed

** 16" frame width for x:panda with Attendant footlock, Rear wheels removed, no seating

*** x:panda seating will result in 3.5" greater seat height than frame height

**** Weight Capacities determined by Seating System

Colors

Gloss

(Frames and Accents)

Gloss Black

Champagne

Ruby Red**

Deep
Sapphire Blue**

Yellow

Opalescent Violet

Dark Pink

Glacier Blue

Electric Green

Radiant Orange

Purple Plum

Blue Steel

Light Pink

Rich Teal

Matte

(Frames and Accents)

Shadow Black

Tactical Green

Dry Earth Tan

White

Bright Red

Platinum**

Iridescent Navy

Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.

c-
Rear Seat to Floor

Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.

D-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular

E-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

F-
Wheel Camber

Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.

G-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

I-
Center of Gravity

Measure from the front of the seat back post to the center of the rear axle.

J-
Seat to Footrest Length

Measure from the edge of the seat upholstery to the top rear of the footrest.

K-
Backrest Angle

Measure the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurement for every .5" of dump
