Motion Composites Helio C2

(No reviews yet) Write a Review

SKU: MO-HELIOC2

Motion Composites Helio C2

(No reviews yet) Write a Review

SKU: MO-HELIOC2

Description

Carbon folding wheelchair

HELIO C2 Carbon folding wheelchair

Helio C2 Image 1

EXPERIENCE THE PERFORMANCE

This flagship model is one of the lightest, most technologically advanced wheelchairs in its category. The HELIO C2 is the result of a series of innovations, it features revolutionary components, an impeccable finish and all the advantages carbon fiber offers.

BENEFITS

Reactive handling and easy transportation

Our vision for the HELIO C2 was significantly reduced weight and greater freedom of movement. Each component was carefully selected and carbon fiber was used for strength and lightness. The result is greater mobility as well as reduced chronic shoulder and joint injuries.

Reactive handling and easy transportation

Save your energy to go further

The symmetrical cross brace and rigid unibody frame distribute forces equally throughout the frame for superior energy transfer and propulsion. Our unique Ultrarigid Folding system (UFS) maximizes the chair’s overall stability, while the vertical axle plates increase rear wheel stiffness for optimal energy efficiency.

Save your energy to go further

Optimal seat-to-floor height

The frame’s innovative design allows you to achieve a super-low 12-inch (30.5-cm) front seat-to-floor height. In addition to easier contact with the floor, this feature provides better foot propulsion. Or, move it beyond 20 inches (50.8 cm) to meet your most challenging needs.

Optimal seat-to-floor height

Uncompromising reliability

Because carbon fiber is both very strong and very light, it is an ideal material for making wheelchairs. It also has superior fatigue resistance and can withstand extreme temperatures. This ensures exceptional durability, for a chair that will serve you for many years to come.

Uncompromising reliability

Carbon seat rail

Fully molded with integrated seat slider for better seat sling support.

Carbon seat rail

Ultrarigid folding system

High-precision tolerances and oversized pivot axles for best-in-class propulsion efficiency.

Ultrarigid folding system

Hybrid frame design

Eliminates the need for both hemi and standard frame, while providing a complete range of seat-to-floor heights.

Hybrid frame design

Footrest anchor

Bracket is inset with an integrated friction plate to protect the carbon fiber.

Footrest anchor

Reinforced back cane support

For added stability and comfort.

Reinforced back cane support

Rigid unibody frame

A unibody frame is much stronger and requires less maintenance than a standard two-part frame. It also reduces weight while maximizing propulsion efficiency.

Rigid unibody frame

Anti-flutter caster

Minimize flutter with a simple twist of a screw. Provides a smooth, more efficient ride.

Anti-flutter caster

Evolve caster housing

Integrated into the frame for rock-solid durability, the Evolve caster housing offers easy and precise infinite adjustments.

Evolve caster housing

Specifications
Dimensions		Performance/Weights
Seat Width:	14" - 22"	Frame Material:	High-tensile strenght T700 carbon fiber
Seat Depth:	14" - 20"	Transport wieght:	9.5 lb (16x16 without rear wheels, wheel locks, armrest, cushion,antitippers and footrest). Lightest configuration: 19.4 lb (with wheel locks and wheels)
Front Seat-to-Floor Height:	13" - 21 1/2"	Weight Limit:	265 lb. \| 120 kg — 350 lb. \| 159 kg - HD Kit
Rear Seat-to-Floor Height:	12 1/2" - 20 1/4"
Back Height:	9" - 21"
Armrest Height:	6" - 14"
Frame Angle:	60°, 70°, 80°, 90°
Back Angle:	85° to 110°
Wheel camber:	0°, 3°, 6°

Center of Gravity (COG) Adjustment:	1" - 4"
Overall width:	20 3/4" min - 33 1/2" max

Colors

Frame

Carbon, Sunkissed Orange, Sapphire Blue, Burgandy, Monster Gren, Charcoal, Fuchsia, Steel Blue, Ferrari Red, Acid Green, Electric Purple, Carribean Blue, White, Pink Pearl, Plum Purple, Sky Blue, Black Cherry, Khaki Green (Matte), Desert Sand (Matte)

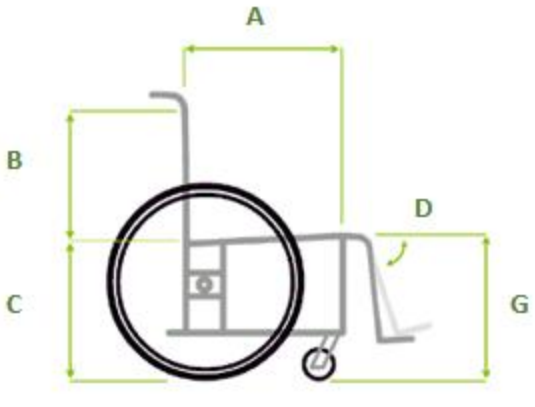

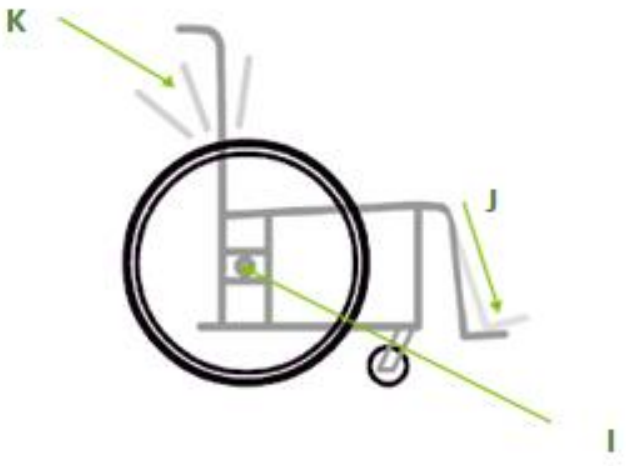

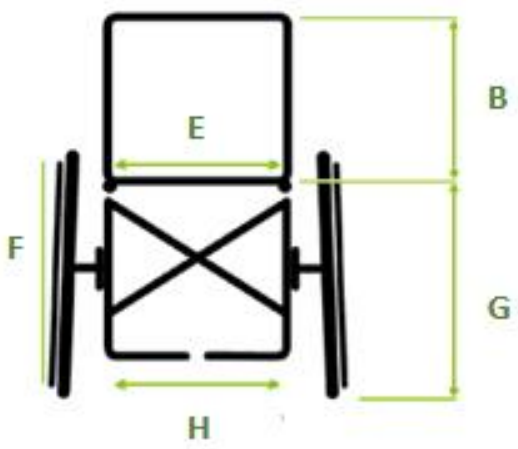

Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.

c-
Rear Seat to Floor

Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.

D-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular

E-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

F-
Wheel Camber

Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.

G-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

I-
Center of Gravity

Measure from the front of the seat back post to the center of the rear axle.

J-
Seat to Footrest Length

Measure from the edge of the seat upholstery to the top rear of the footrest.

K-
Backrest Angle

Measure the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurement for every .5" of dump
Warranty Information
LIMITED WARRANTY – USA
1.1 MOTION COMPOSITES LIMITED WARRANTY – USA
A. CARBON FRAME – LIMITED LIFETIME
Motion Composites warrants the carbon wheelchair frame against defects in materials and workmanship for life. This warranty is limited to the carbon fiber frame and is limited to the first user and is not transferable.
B. CARBON CROSS-BRACE – LIMITED LIFETIME
Motion Composites warrants the carbon wheelchair cross-brace against defects in materials and workmanship for life. This warranty is limited to the carbon fiber cross-brace and is limited to the first user and is not transferable.
C. ALUMINUM FRAME – LIMITED 5 YEARS
Motion Composites warrants the Aluminum wheelchair frame against defects in materials and workmanship for five years from the date of purchase. This warranty is limited to the Aluminum frame and is limited to the first user and is not transferable.
D. ALUMINUM CROSS-BRACE – LIMITED 5 YEARS
Motion Composites warrants the Aluminum wheelchair cross-brace against defects in materials and workmanship for five years from the date of purchase. This warranty is limited to the Aluminum Cross-brace and is limited to the first user and is not transferable.
of these warranties remain subject to this warranty for its remaining term. However, components replaced or repaired under warranty within ninety (90) days of its expiration are guaranteed ninety (90) days, except those replaced or repaired under application of the thirty (30) days warranty within the thirty (30) days of its expiry, which shall then be guaranteed for thirty (30) days.
1.2 COMPONENTS – 1 YEAR
1. 1. Motion Composites warrants all Motion Composites-made compo-
    nents, including the adjustable tension back upholstery, against defects in materials and workmanship for limited one (1) year from the date of purchase, except for parts listed below.
  2. Motion Composites covers the following items for 30 days: tires and tubes for front or rear wheels, cushions, seat slings, seat upholstery, standard back upholstery, armrest, push-handle grips;
  3. This warranty does not cover: damage arising from normal wear and tear or from other circumstances beyond Motion Composites’ control.
  4. The foregoing warranty shall not apply if:
    1. The original Motion Composites serial number tag has been removed, altered or defaced;
    2. Or the wheelchair has been subjected to negligence, accident, improper maintenance, storage or operation as required by your Motion Composites Owner’s Manual, commercial or institutional use, misuse or abuse, including, but not limited to, exceeding the maximum weight capacity of 265 pounds (120 kg), or 350 pounds (159 kg) if equipped with HD Kit;
    3. Or the wheelchair has been damaged by improper repairs or repairs made to any component without the express written consent of Motion Composites;
    4. Or the wheelchair has been modified without Motion Composites’ express written consent, including, but not limited to, modification using unauthorized parts or attachments;
    5. Or the wheelchair has been used as a weight training apparatus;
    6. Or the wheelchair’s Transit Tie-Down System (TTDS) has been misused; if TTDS is not attached to the four tarpaulin bows dentified and installed by Motion Composites.
  5. The shelf life or use life of the wheelchairs and their components could vary pending on the, practice, treatment, handling and frequen- cy of use. Exposure to sun, heat, and water could affect the life of the wheelchair. Maintaining the wheelchair clean and storing it in a cool, dry area and away from the sunlight, will increase the duration of the wheelchair;
  6. This warranty is extended only to the original consumer purchasers of Motion Composites’ product.
  7. Devices and components subject to replacement or repair under one of these warranties remain subject to this warranty for its remaining term. However, components replaced or repaired under warranty within ninety (90) days of its expiration are guaranteed ninety (90) days, except those replaced or repaired under application of the thirty (30) days warranty within the thirty (30) days of its expiry, which shall then be guaranteed for thirty (30) days.
1.3 IMPORTANT NOTICE REGARDING CONSUMERS RIGHTS.
The benefits we give in this manufacturer’s warranty are additional to, and do not detract from, any rights and remedies that you may have under local consumer protection laws.
This manufacturer’s warranty is governed by the laws of the country, province, state or territory in which you purchased your Motion Composites product.
In many countries, consumers have statutory rights under local consumer laws. Those consumer rights may differ between countries, territories, states or provinces, and often cannot be excluded.
This Manufacturer’s warranty is not intended to:
1. 1. change or exclude any statutory consumer rights that cannot be lawfully changed or excluded; or
  2. limit or exclude any right you have against the person who sold the Motion composites product to you if that person has breached their sales contract with you.
1.4 OUR RESPONSIBILITY
Motion Composites’ sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.
1.5 WARRANTY SERVICE
If your wheelchair requires warranty service, please contact
an authorized Motion Composites Dealer in Canada or an authorized international distributor. In the event of a defect in mate- rial or workmanship, the Dealer or Distributor must obtain a return authorization (RA) number from Motion Composites. Motion Composites issues RA numbers only to authorized Motion Composites Dealers and Distributors. If you do not receive satisfactory warranty service, please write directly to Motion Composites Customer Service at
160 Armand Majeau Sud,
Saint-Roch-de-l’Achigan (Quebec) J0K 3H0 Canada
Phone: 1-866-650-6555
Fax: 1-888-966-6555
or send an email at: service@motioncomposites.com
Do not return products to our factory without our prior consent.
1.6 CONSUMER NOTICE
1. 1. The foregoing warranty is exclusive, and in lieu of all other express
    warranties, whether written or oral, express or implied. Motion Composites shall not be liable for any consequential or inciden- tal damages whatsoever. By registering your Motion Composites wheelchair, you will be deemed to agree with all provisions of this warranty.
  2. It is forbidden to alter or extend the foregoing express warranty or to waive any of the limitations or exclusions.
