Quantum Rehab Q6 Edge 3.0

The design of the Edge® 3 is for the most advanced power chair experience ever! Upgraded SRS (Smooth Ride Suspension) provides a smooth, comfortable ride and advanced stability. Optional iLevel® is available at 4.5 mph with up to 12" of power adjustable seat height. Standard features include front and rear LED fender lights, a USB charger, and drive wheel color accents. The Edge® 3 is available in a total of 17 color options.
Edge® 3 Features
- Upgraded SRS (Smooth Ride Suspension)
- Optional 4.5 mph iLevel®
- Optional iLevel's patented Extra Stability Technology® enhances safety while performing transfers, reach, and numerous other activities of daily living
- iLevel is retrofittable on the Edge® 3
- Fender lights, USB charger, and drive wheel color accents included
- 7 bold colors and a total of 17 color options
- Made in America of foreign and domestic parts
- Available with WC19 crash-test approved occupied transit kit option with captain’s seating, Synergy® seating, and TRU-Balance® 3 seating configurations.
- Available with Accu-Trac Advanced Tracking Technology
EDGE 3 Colors






Edge® 3 Compatible Seating

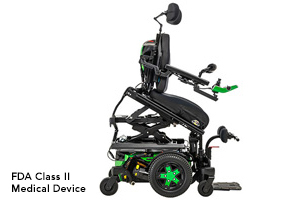

TRU Balance® 4 Power Positioning Systems is now available with more power seat configurations and provides a choice of 10, 20, or 30 degrees of power anterior tilt. Other features include up to eight customizable memory seating positions and an articulating foot platform that lowers to assist with transfers. TRU Balance 4 requires the selection of iLevel® power adjustable seat height, power anterior tilt, power posterior tilt, power recline, and a power articulating foot platform.
TRU Balance 4 is available on the Edge 3 Stretto®, Edge® 3, and 4Front® 2 power chairs.

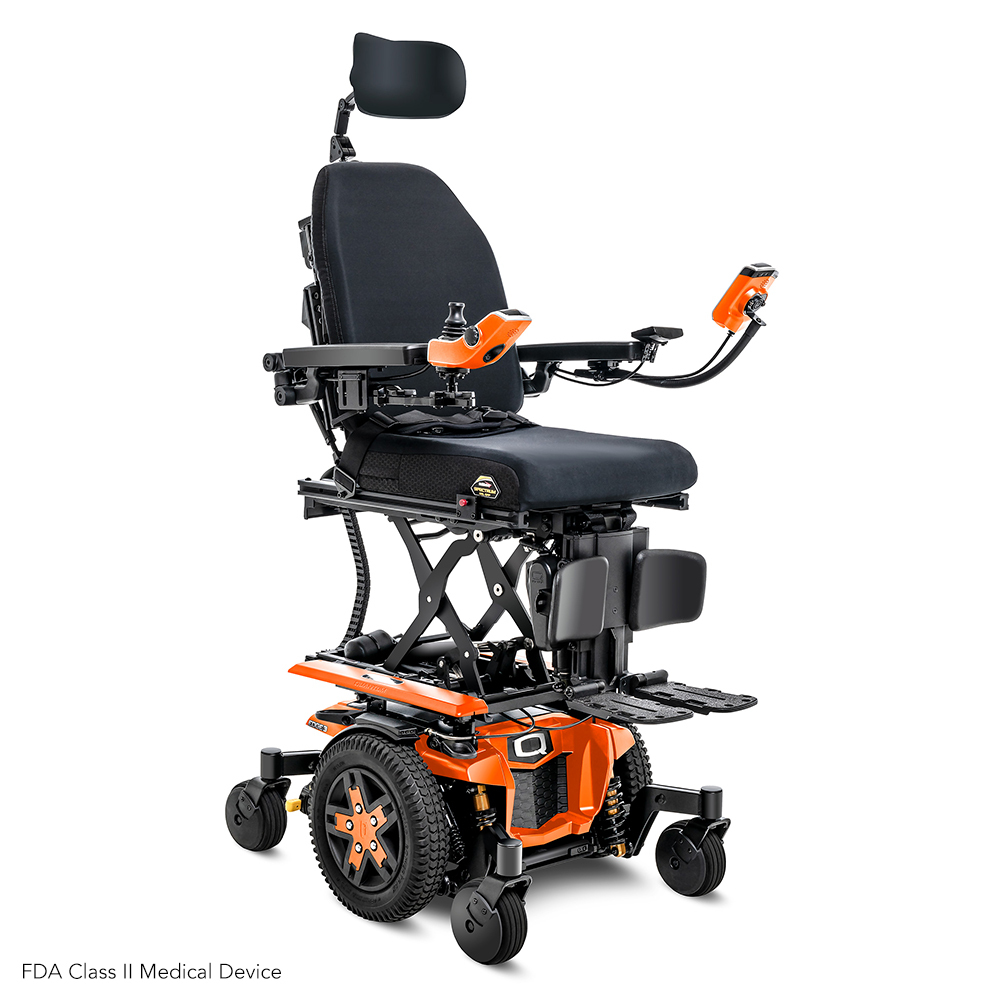

Power Adjustable Seat Lift with iLevel®
iLevel improves access to one's environment and enhances social interaction by allowing operation of the power chair with the seat fully elevated while at walking speed (at 4.5 mph).

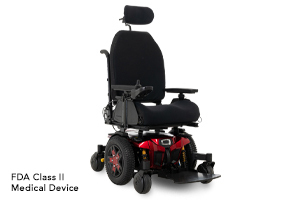

TRU-Balance® Flex Seating
TRU-Balance® Flex Seating is the no-charge static seat option available on the Edge® 3, Q6 Edge® 2.0, and the Rival® power chairs.

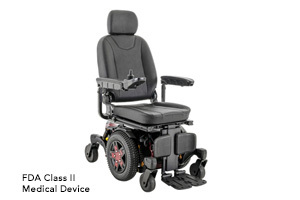

Captain Seating is a standard option on Quantum Rehab® power chairs and features a black vinyl height-adjustable seat back, with options including a solid seat pan, a removable standard seat cushion, limited recline, and depth adjustability.
Edge® 3 Compatible Electronics
The Q-Logic NES is the latest generation of non-expandable power wheelchair electronics. It is user-friendly, customizable and offers up to 2-actuator functions

The Q-Logic 3 Advanced Drive Control System from Quantum Rehab® is like no other power wheelchair electronics system. Designed from clinician and consumer feedback, Q-Logic 3 is user-friendly and highly customizable. This adaptable, expandable control system can increase and maximize independence.

The NE+ is a non-expandable rehab electronic controller that offers 2-actuator control for TRU-Balance® Power Positioning Systems and a standard 1/8" auxiliary port for adaptive switches.

The NE is a non-expandable rehab electronic controller that delivers simplicity without limiting features, and is for use with power chairs without power seating options.

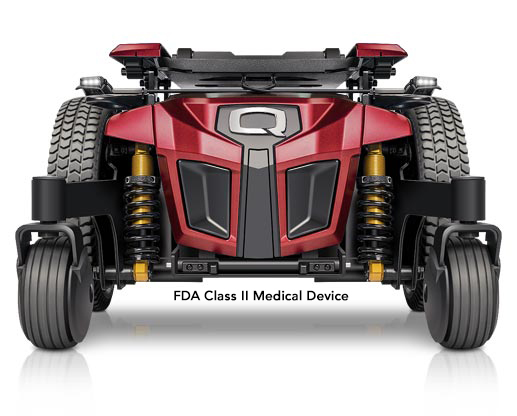

Edge® 3 SRS Suspension

There's Only One...SRS
SRS (Smooth Ride Suspension) is a superior automotive-grade power chair suspension developed after two years of research and consumer feedback.
On the Edge® 3 Motorized Wheelchair, SRS consists of three coil-over, gas-charged shocks that provide an ultra-smooth and quiet ride. The geometry in which the shocks are built into the base of the power chair allows for independent caster and wheel travel.With unprecedented comfort and ride quality, SRS delivers exceptional driving performance over multiple terrains. Additionally, SRS adds stability to optional iLevel® Power Adjustable Seat Height on the Edge® 3 Motorized Wheelchair.
When you want a smooth, comfortable ride, unmatched performance and advanced stability, there’s only one choice: SRS.
Edge® 3 Specifications
Model Q6 Edge® 3 Drive Configuration Mid-wheel drive Drive Wheels 14" solid
Optional: 14" pneumatic
Optional: 14" knobbyCaster Wheels Front: 6" solid
Rear: 6" solidMaximum Speed4 Up to 7 mph17
Up to 4.5 mph with iLevel activatedGround Clearance 2.7" (battery tray) Turning Radius5 20.5" Overall Length11 32.23" without front riggings Base Width 24.4" Seating Sizes Synergy®/Static: W: 10-22"; D: 10-22"
TRU-Balance® 3 Power Tilt: W: 12-22"; D: 12-22"
TRU-Balance® 3 Tilt and iLevel®: W: 12-22"; D: 12-22"
TRU-Balance® Flex Seating: W: 15-22” D: 15-20”Seat-to-Floor Heights16,17 Synergy®: 15.875-20.875”; Static: 16.5-18.5”
TRU-Balance® 3 Power Tilt8: 17.5-19.5"
TRU-Balance® 3 Tilt and iLevel®8: 17.5-19.5"
TRU-Balance® Flex Seating8: 16.5-18.25"Battery Size6 NF-22 (2) Battery Weight14 38 lbs. each Available Electronics12 120A Q-Logic 3 EX
120A Q-Logic 3e
75A Q-Logic NE
75A Q-Logic NE+
75A Q-Logic NES
90A Q-Logic NESBattery Charger 8A off-board Motor Packages Standard: 2-Pole, Mid-Wheel® 6
Optional: 4-pole, Mid-Wheel® 6Weight Capacity7 300 lbs. Base Weight 138.6 lbs. Medicare Code Coverage Group 3:
Standard (K0848/K0849)
Single Power (K0856/K0857)
Multiple Power (K0861)Notes:
4 Speed varies with user weight, terrain type, battery charge, battery condition and tire pressure.
5 Without front riggings
6 Battery capacity may change when adding power positioning systems.
7 Weight capacity is dictated by the selection of seating.
8 All measurements +/- 1/8" with 18" x 18" seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8" with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for details. Listed measurements are in the lowest position; does not include elevating system unless specified.
11 Without foot riggings.
12 All Quantum Rehab® units can be ordered with specialty controls
13 6.25 mph speed available only with Q-Logic 3.
14 Battery weight may vary +/- 3 lbs. based on manufacturer.
16 Seat-to-floor heights are measured with the unit unloaded.
17 7 mph can only be achieved with optional 4-pole motors and Q-Logic 3 or Q-Logic 3e. Maximum speed without 4-pole motors is 6.25 mph with Q-Logic 3.The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
S
-
Size Chart / measuring guide
A-Seat DepthMeasure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.B-Back HeightMeasured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration.C-Hanger AngleDetermines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.D-Seat WidthDetermined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.E-Front Seat to FloorMeasure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never footpropelled by the user - so excluding the additional two-inch footrest height for propelling is very rare. - Videos
-
Warranty Information
LIFETIME LIMITED WARRANTY
For the lifetime of your power chair from the date of purchase, Quantum will repair or replace at our
option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
Structural frame components, including:
- Main frame • Fixed-position seat post
TWO-YEAR LIMITED WARRANTY
For two (2) years from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
Electronic components, including:
- Charger assembly
- Controller
- Joystick
Main frame assemblies, including:
- Metal seat framing
Other components, including:
- Electrical harnesses
18-MONTH LIMITED WARRANTY
For eighteen (18) months from the date of purchase, Quantum will repair or replace at our option to the
original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Motor/gearbox assembly • Power seat actuator
ONE-YEAR LIMITED WARRANTY
For one (1) year from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Accessories
- Anti-tip forks
- Front riggings
- Caster forks
- Brakes (electronic function ONLY)
- Front rigging mounting brackets
- Caster beam
SIX-MONTH LIMITED WARRANTY
For six (6) months from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Bearings and bushings
BATTERIES
The batteries are covered by a twelve (12) month (1 year) warranty from the original manufacturer.
NOTE: Gradual deterioration in performance due to being left in a discharged state, left in cold conditions for long periods of time, or worn out through heavy use is not covered.
RECONDITIONED UNITS WARRANTY
All reconditioned units are covered by a six-month warranty from Quantum effective from the date of purchase.
WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
- ABS plastic shrouds
- Brake pads
- Motor brushes
- Tires and tubes
- Upholstery and seating
- Fuses/bulbs
- Circumstances beyond the control of Quantum
- Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Quantum
- Repairs and/or modifications made to any part without specific consent from Quantum
Exclusions also include components with damage caused by:
- Contamination
- Abuse, misuse, accident, or negligence
- Battery fluid spillage or leakage
- Commercial use or use other than normal
- Improper operation, maintenance, or storage
SERVICE CHECKS AND WARRANTY SERVICE
Warranty service must be performed by a Quantum Rehab Provider. Do not return faulty parts to Quantum without prior written authorization. All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the purchaser.
Failure to follow the instructions, warnings, and notes in the owner’s manual and those located on your Quantum product can result in personal injury or product damage and will void Quantum’s product warranty.
There is no other express warranty.
IMPLIED WARRANTIES
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of purchase and to the extent permitted by law. Any and all other implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded.
