TACTILUS Seat Pressure Mapping System

(No reviews yet) Write a Review
SKU: Blue Chip-TACTILUS

Regular Price: $6,895.00
Sale: $5,995.00
(You save $900.00 )

TACTILUS Seat Pressure Mapping System

(No reviews yet) Write a Review
SKU: Blue Chip-TACTILUS

Regular Price: $6,895.00
Sale: $5,995.00
(You save $900.00 )
Availability:
Estimated 60 day Lead Time
Regular Price: $6,895.00
Sale: $5,995.00
Regular Price: $6,895.00
Sale: $5,995.00
(You save $900.00 )
#1 Rated Mobility Provider

  • Description

    TACTILUS® Seat Pressure Mapping Sensor System

    Tactilus® by Blue Chip is the perfect solution to create the optimal therapeutic seating surface for patients in hospitals, clinics, long-term care facilities, and homecare.

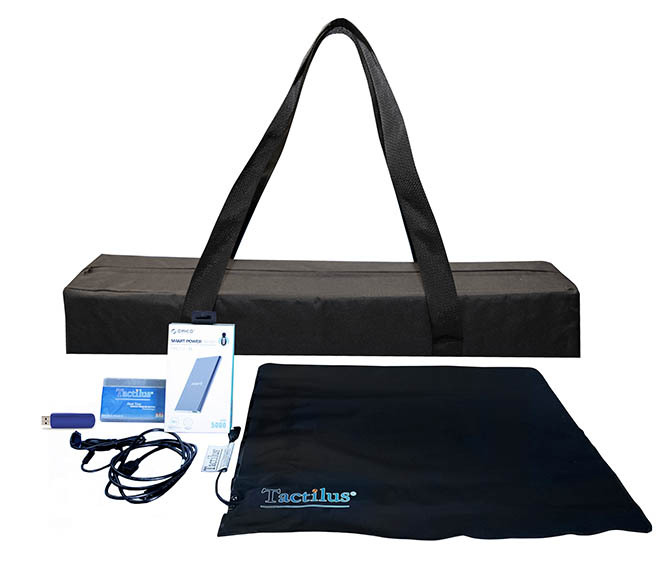

    System Includes:

    • Sensing Pad
    • Battery Pack
    • Cables
    • Memory Stick

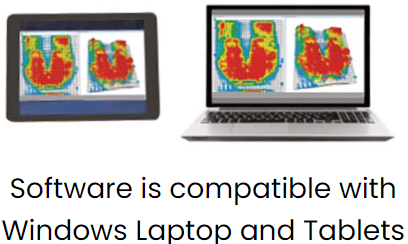

    • Windows Based Software
    • Hard Shell Case with Strap



    Benefits:

    • Prevent costly tissue injuries
    • Create an optimal seating environment
    • Simple & Easy to Use
    • Monitor patient comfort and safety
    • Use evidence-based data for reporting & treatment
    • High-resolution imaging
    • Store and export patient information
    • Improve communication with patients through pictures and visuals







    Specifications:

    TECHNOLOGY: PIEZORESISTIVE
    PRESSURE RANGE: 0 – 200 mmHg
    MAP SIZE: 20″ x 20″
    TOTAL SENSING AREA: 18.3″ X 18.3″
    SCAN SPEED: 10 sec per min.
    THICKNESS: .098 in. (2.5 mm)
    TRANSMISSION MODE: Wireless



    Features:

    • Easy to use interface

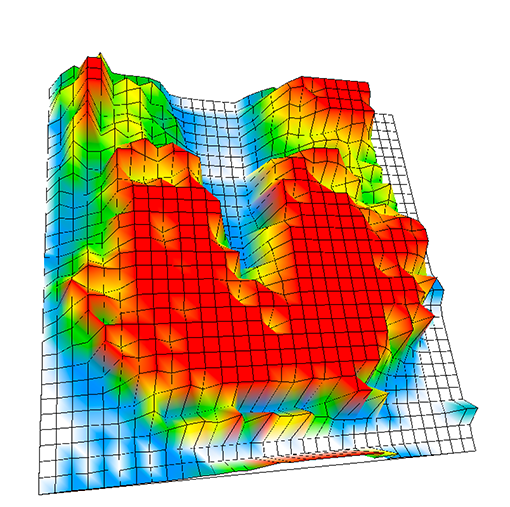

    • 2D and 3D views
    • Record & save sessions
    • Center of gravity indicator
    • Average pressure graphs
    • Exportable to video
    • Exportable PDF sharing
    • High definition
    • ROI Region of Interest Masking
    • Quadrant monitoring
    • Notes field
    • Up to 3 cushion comparison



    What it does

    Tactilus® allows the user to capture and record pressure conditions occurring in between any two contacting or impacting surfaces in real time. The paper-thin Tactilus® sensor is actually placed at the contact interface where it records and assimilates both pressure distribution and pressure magnitude on your Windows® based computer.



    Tactilus® is a matrix-based tactile surface sensor — essentially an "electronic skin" that records and interprets pressure distribution and magnitude between any two contacting or mating surfaces and assimilates the collected data into a powerful Windows® based tool kit. Each Tactilus® sensor is carefully assembled to exacting tolerances and is individually calibrated and serialized.

    • Tactilus S-1024 is the top of the line seat pressure mapping sensor available in the Tactilus family of surface pressure mapping sensors - the standard for surface pressure mapping sensor systems for 29 years
    • Tactilus Seat pressure mapping sensors are manufactured using patented smart fabric that is stretchable, durable and highly conformable – providing high degrees of precision
    • Highly accurate body pressure mapping that provides pressure magnitude and distribution data in real time through 2D and 3D visual displays
    • Includes an advanced software solution that provides pinpoint tactile pressure analysis with video capabilities, data exports to CSV, and an API for integration to other software solutions
    • Connects using either a USB cable or via WiFi with no cables required

     Software Features

    Tactilus® is a tool kit that consists of an electronic sensor element ("skin"), signal conditioning electronics and software. The sensor skin is a thin flexible or rigid sheet that is densely packed with sensing points or pixels. These sensing points can be spaced as close as 2 mm (0.08") apart and can collect data as rapidly as 1,000 readings per second.

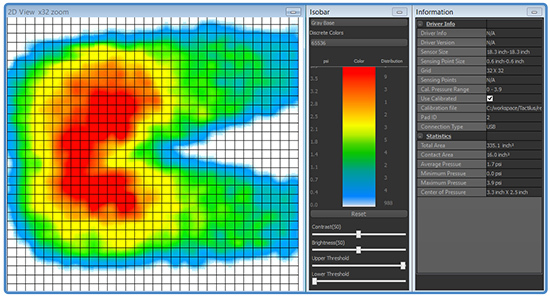

    • 2D, 3D and 360 degree image rendering with extensive user control
    • Complete software library
    • Force integration and average pressure
    • Highly programmable report generator
    • Local point and region-of-interest (ROI) analysis
    • Max, minimum and average values
    • Pressure vs. time graph and pressure histogram
    • Sophisticated calibration control
    • Easily exportable data to Excel, ASCII or Access formats
