Description

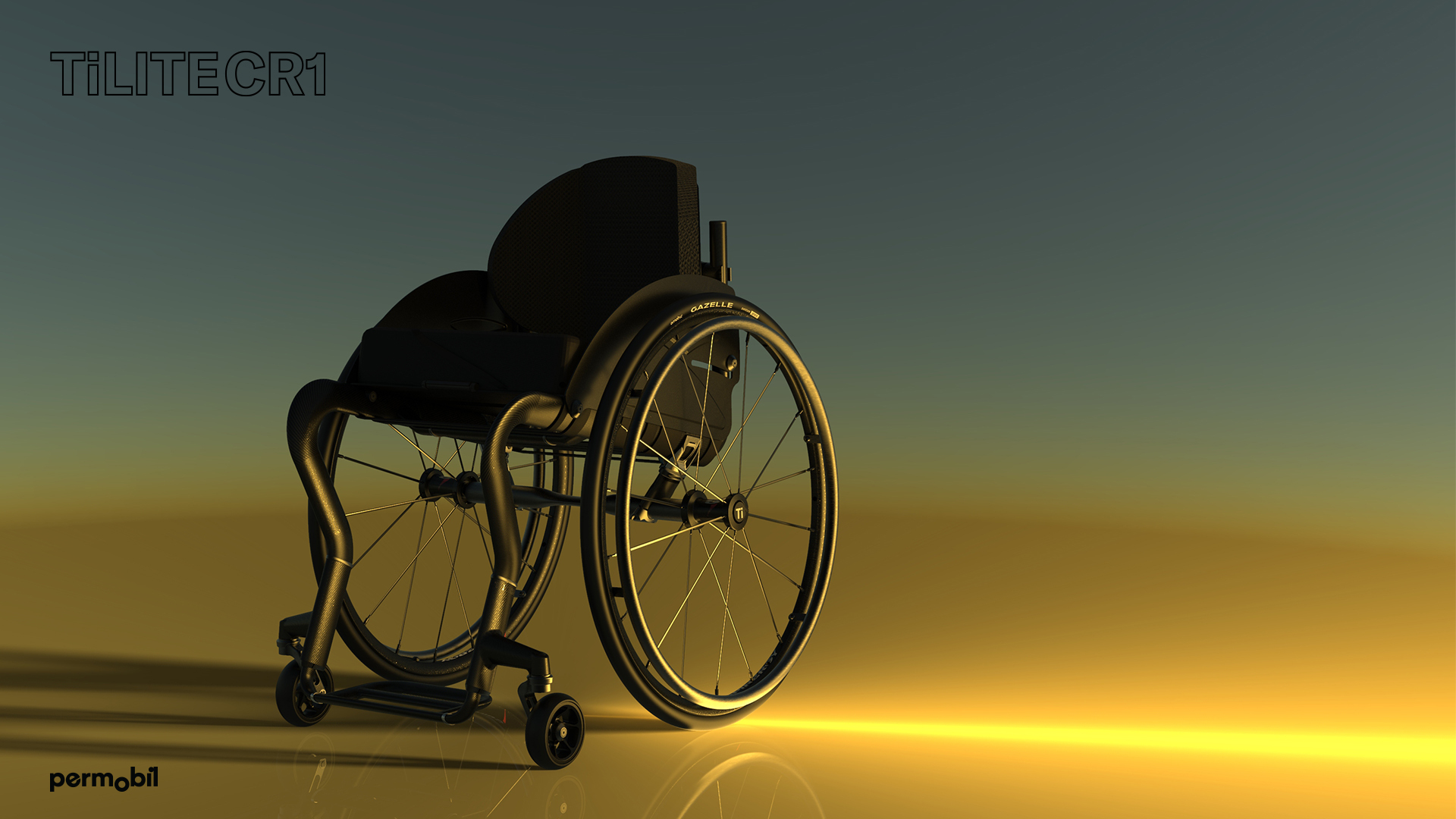

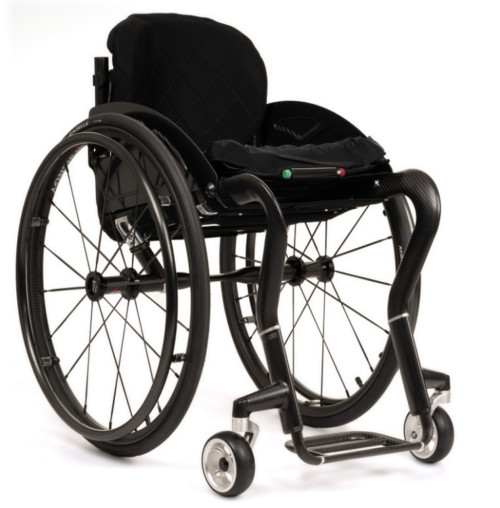

TiLite CR1

The TiLite CR1 is a high-performance carbon fiber wheelchair designed for strength, speed, and efficiency. Its aerodynamic tube profile and foam-filled core provide maximum durability while keeping it ultra-lightweight.

KEY FEATURES:
• Exceptionally lightweight frame
• ± 1” Center of Gravity fine tuning adjustment
• Integrated, fold-down backrest for easy transport

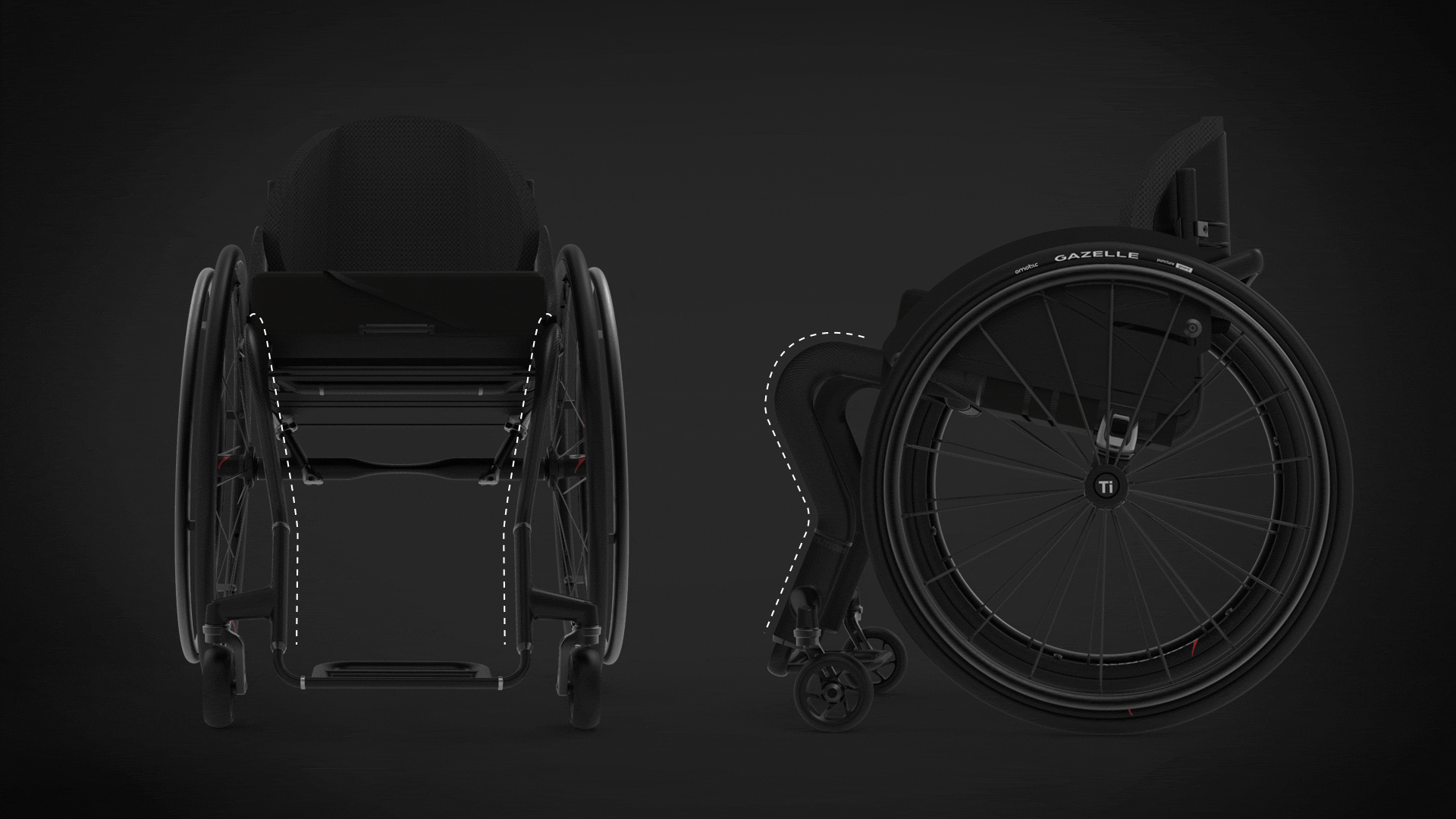

• Individually made, just for youDual-Angled Front End An additional bend in the frame's downtube allows users to get up to 2" closer to other surfaces for easier transfers and allows improved access in tight areas.
Carbon Fiber Frame With an aerodynamic tube profile and a foam-filled core, the CR1’s carbon fiber frame has been designed for uncompromising performance and strength.
Integrated Fold-Down Backrest Custom-profiled side guards that act as structural members to the frame hold the backrest in place and allow you to fold down your backrest for easy transport.
Brandon Lyons, Paralympic Cycling National Team athlete"Compared to previous carbon fiber chairs I’ve had, the CR1’s weight makes it much easier to transfer into my vehicle, making it easier on my shoulders. In addition, the light weight and high responsiveness of the chair makes it much more efficient to push."

Carefully Crafted for True Innovation
Every single detail of the TiLite CR1 has been carefully designed to bring true innovation to TiLite. From specially designed caster bearings for vertical load application and weight reduction to new carbon fiber caster wheels and titanium reinforcement trim rings, this chair revolutionizes the idea of a manual wheelchair from the ground up.

SPECIFICATIONS
Frame Width: 13" - 18" Frame Depth: 13" - 18" Frame Style: Rigid Frame Type: Mono Tube Frame Construction: Carbon Fiber Front Frame Angle: 85° Front Seat Height: 17.5" - 21" Camber: 0°, 2°, 4°, Weight Capacity: 231lbs Transport Weight: 9lbs COLORS

-
Size Chart / measuring guide
A-Seat DepthMeasure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.B-Back HeightMeasured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.c-Rear Seat to FloorMeasurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.D-Hanger AngleDetermines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicularE-Seat WidthDetermined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.F-Wheel CamberAngle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.G-Front Seat to FloorMeasure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.H-Footrest WidthMeasure from the inside of each leg rest tubing the distance or desired distance between leg rests.H-Footrest WidthMeasure from the inside of each leg rest tubing the distance or desired distance between leg rests.I-Center of GravityMeasure from the front of the seat back post to the center of the rear axle.J-Seat to Footrest LengthMeasure from the edge of the seat upholstery to the top rear of the footrest.K-Backrest AngleMeasure the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurement for every .5" of dump -
