Description

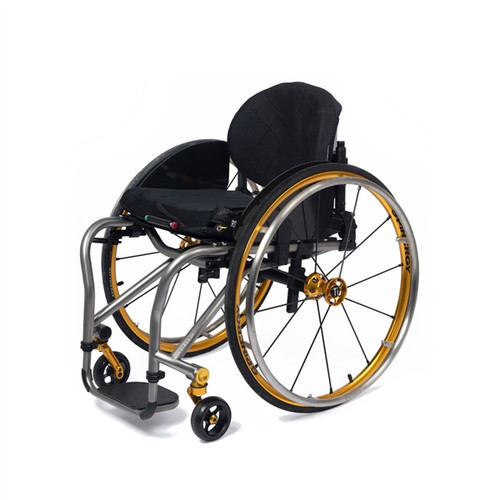

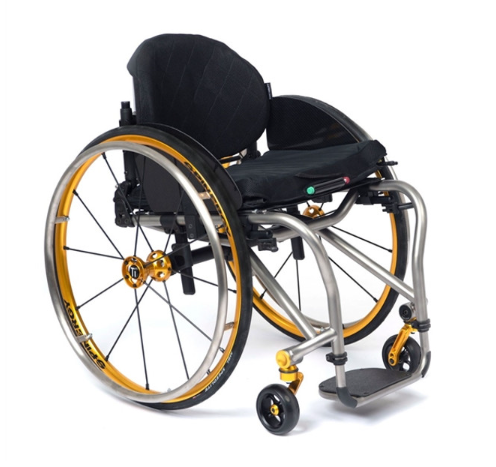

TiLite TRA
Lightweight, high-performance titanium wheelchairs, the TiLite TR and TiLite TRA are both dual-tube rigid titanium frames built for durability, style, and efficiency.

Title TRA A more adjustable option for those who want fine-tuned positioning
- Adjustable center of gravity, backrest, and seating angle for custom comfort
- Dual-tube geometry for better weight distribution and frame stiffness
- Adjustable caster fork angle for a smooth, controlled ride
- Built to your specifications, with optional ergo seating for extra support

What you get with the Tilite TRA wheelchair is an adjustable, sleek, high performance, custom wheelchair with a big wow factor built specifically for its owner. Similar to the the TR but more adjustable, the TRA is a favorite among rigid chair users. Strength, style, and the cutting edge manufacturing is why TiLite is the industry leader in customer titanium ultralight wheelchairs! Titanium absorbs vibration, won't break, and has the highest strength-to-weight ratio of any metal on Earth. That is why TiLite builds our highest performing wheelchairs from seamless, aerospace-grade titanium.
Powerful Features
Rigid
Rigid frame chairs are the lightest and highest performing chairs because they are constructed from the fewest possible components and have the fewest moving parts.
Ease of Transport & Energy Saving
The TRA and TR both feature a swept-in dual-tube frame with rigidity for optimal energy transfer to help take fewer strokes throughout the day.
Titanium
Titanium provides a smoother ride, won’t break, and has the highest strength-to-weight ratio of any natural metal on Earth. That is why TiLite builds our highest performing wheelchairs from seamless, aerospace.
Specifications Dimensions Frame Features: Titanium Dual-Tube Rigid, TiFit, Limited adjustability Center of Gravity: 5” Seat Width: 12" - 20" Folding seat back: Adj. height 9.5” – 22” Adj. angle 80° – 101° Seat Depth: 12" - 20" Ergonomic seat: 6”, 7”, 8” Chair Width: 23" Transit options: Q-Straint lock down approved Front seat width (seat taper): 0”, 1”, 2”, 3” Transport weight* 11.1 lb Front Seat Height 15"-21" Weight Limit: 265 lb Standard 300 lb Heavy duty Rear Seat Range: 13" - 21" Warranty : Five years on frame One year on TiLite components Front Frame Angle: 70°, 75°, 80°, 85°, 90° Camber: 0º, 2º, 4º, 6º, 8°, or 12º

-
Size Chart / measuring guide
A-Seat DepthMeasure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.B-Back HeightMeasured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.c-Rear Seat to FloorMeasurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.D-Hanger AngleDetermines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicularE-Seat WidthDetermined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.F-Wheel CamberAngle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.G-Front Seat to FloorMeasure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.H-Footrest WidthMeasure from the inside of each leg rest tubing the distance or desired distance between leg rests.H-Footrest WidthMeasure from the inside of each leg rest tubing the distance or desired distance between leg rests.I-Center of GravityMeasure from the front of the seat back post to the center of the rear axle.J-Seat to Footrest LengthMeasure from the edge of the seat upholstery to the top rear of the footrest.K-Backrest AngleMeasure the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurement for every .5" of dump -
