Build My Own
Quantum Rehab Stretto Edge 3.0 Starting at $5,499.00
Chair Options: Power Tilt, Power Recline, Power Seat Lift and Power Articulating Foot Platfrom

(No reviews yet) Write a Review

SKU: Stretto-BMO

Build My Own
Quantum Rehab Stretto Edge 3.0 Starting at $5,499.00
Chair Options: Power Tilt, Power Recline, Power Seat Lift and Power Articulating Foot Platfrom

(No reviews yet) Write a Review

SKU: Stretto-BMO

Description
The Edge 3 Stretto is the narrowest, most maneuverable power base in America! This narrow wheelchair base is perfect for navigating tight corners and small spaces. With an overall width of 20.75" with 12.5" drive wheels, the Stretto is the best narrow wheelchair for children, teenagers and small adults to use in the home.

In addition to its narrow width, the Edge 3 Stretto is equipped with independent SRS (Smooth Ride Suspension), which offers increased shock absorption due to the angle of the shocks. Enjoy maximum obstacle climbing and increased overall comfort. With so many great features and benefits, the Stretto is truly a milestone for pediatric power and the perfect child wheelchair choice!

Features
- 20.75" wide with 12.5" drive wheels
- Independent SRS (Smooth Ride Suspension)
- iLevel® option available with up to 12" of seat elevation at walking speed (up to 3.5 mph)
- Fender lights and USB charger included
- Toolless removal of rear shroud with battery access door
- Made in America of foreign and domestic parts
- Available with WC19 crash-test approved occupied transit kit option with TRU-Balance® 3 seating configurations
- Available with Accu-Trac Advanced Tracking Technology
- FUN FACT: Stretto is the Italian word for narrow
TRU-Balance® 3 Power Positioning Systems feature an innovative design that maximizes functional independence while providing an appealing look and feel. TRU-Balance 3 has the ability for quick and easy fine-tuning adjustments to ensure maximum comfort and positioning. Available configurations include power tilt, power recline, power articulating foot platform, and static seating.

Optional 12" iLevel® power adjustable seat height is available on the Stretto, Edge® 3, Q6 Edge® 2.0, Q6 Edge® Z, and Q6 Edge® 2.0 X, and 10" of safe seat elevation is offered on the 4Front® 2.

The Q-Logic 3 Advanced Drive Control System from Quantum Rehab® is like no other power wheelchair electronics system. Designed from clinician and consumer feedback, Q-Logic 3 is user-friendly and highly customizable. This adaptable, expandable control system can increase and maximize independence. Q-Logic 3 with Bluetooth® and the infrared (IR) environmental controls enhances your independence.

Edge 3 Stretto® SRS Suspension

There's Only One...SRS

SRS (Smooth Ride Suspension) is a superior power chair suspension developed after two years of research and consumer feedback.

On the Edge 3 Stretto®, independent SRS has an increased shock absorption due to shock angle. The suspension creates a 30 percent to 45 percent improvement in ride as found through vibration testing. The spring rates have been optimized for maximum obstacle climbing and overall comfort. The Edge 3 Stretto® is the first mid-wheel drive Quantum base engineered from the ground up with true independent suspension without using an articulating beam.

When you want a smooth, comfortable ride, unmatched performance and advanced stability, there’s only one choice: SRS.

Quantum Rehab® is dedicated to being the premier global innovator of consumer-inspired complex rehab mobility technologies that not only deliver medical comfort, but also the features needed toward overall well-being, serving the entirety of users activities of daily living. Quantum Rehab® was born out of the desire to delight customers with the most advanced, consumer-inspired complex rehab power wheelchairs and related technologies possible.

At Quantum, consumer needs and wishes are the driving force. We're dedicated to not just meeting medical and clinical needs, but also quality-of-life needs. From the most advanced power seating for pressure management to USB ports, Bluetooth and fender lights, no consumer need is overlooked.

Specs

Edge 3 Stretto® Specifications

Model	Q6 Edge 3 Stretto®
Drive Configuration	Mid-wheel drive
Drive Wheels	14" or 12.5" Pneumatic or flat free tires
Caster Wheels	Front: 5" flat free Rear: 6" flat free
Maximum Speed^4,13	Up to 6.25 mph Up to 3.5 mph with iLevel activated
Ground Clearance	2.9"
Turning Radius⁵	21"
Overall Length¹¹	32.5" without front riggings
Base Width	21.75" with 14" drive wheels 20.47" with 12.5" drive wheels
Seating Sizes	TRU-Balance® 3 Static Seat: W: 12-20" D: 12-20" Power Tilt: W: 12-20" D: 12-20" Tilt & iLevel: W: 12-20" D: 12-20" Flex Seating: W: 15-20" D: 15-20"
Seat-to-Floor Heights^16,17	TRU-Balance® 3 Static Seat⁸: 16-18" Power Tilt⁸: 17.5-19.5" Tilt & iLevel⁸: 17.5-19.5" Flex Seating⁸: 16.5-18.25"
Battery Size⁶	40 AH (2) or NF-22 (2)
Battery Weight¹⁴	40 AH: 31 lbs. each 55 AH: 40 lbs. each
Available Electronics¹²	120A Q-Logic 3 EX 120A Q-Logic 3e 75A Q-Logic NE 75A Q-Logic NE+
Battery Charger	8A off-board
Motor Packages	2-pole, Mid-Wheel® 6
Weight Capacity⁷	300 lbs.
Base Weight	126.4 lbs.
Medicare Code Coverage	Group 3: Standard (K0848) Single Power (K0856/K0867) Multiple Power (K0861)
Notes: ⁴ Speed varies with user weight, terrain type, battery charge, battery condition and tire pressure. ⁵ Without front riggings ⁶ Battery capacity may change when adding power positioning systems. ⁷ Weight capacity is dictated by the selection of seating. ⁸ All measurement +/- 1/8" with 18" x 18" seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8" with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for details. Limited measurements are in the lowest position; does not include elevating system unless specified. ¹¹ Without foot riggings ¹² All Quantum Rehab® units can be ordered with specialty controls ¹³ 6.25 mph speed available only with Q-Logic 3 ¹⁴ Battery weight may vary +/- 3 lbs. based on manufacturer. ¹⁶ Seat-to-floor heights are measured with the unit unloaded. Due to the 4Front’s suspension system, seat-to-floor heights are approximately 0.25” lower when the unit is loaded. ¹⁷ 16.5" seat-to-floor height is not available with power tilt or iLevel®. 19.5" seat-to-floor height is not available with static seat or power recline.

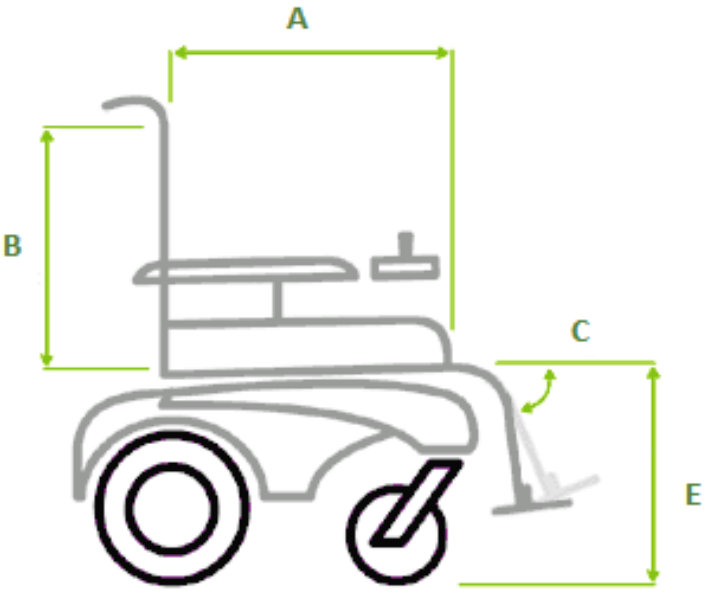

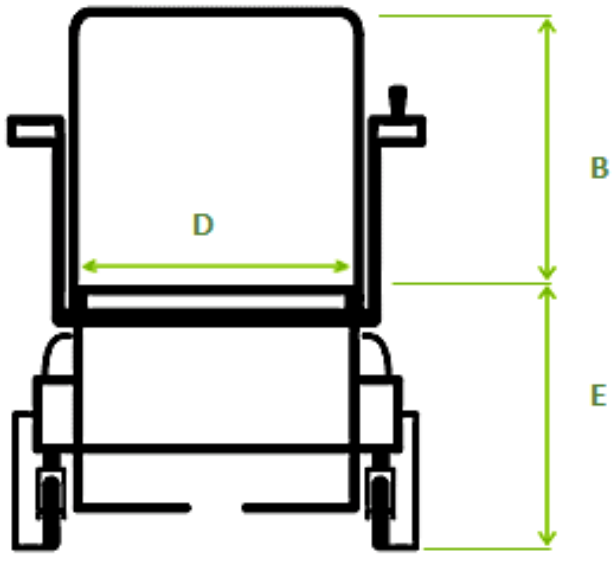

Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration.

C-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.

D-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

E-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never footpropelled by the user - so excluding the additional two-inch footrest height for propelling is very rare.
Videos
Videos Hide Videos Show Videos
Warranty Information
LIFETIME LIMITED WARRANTY
For the lifetime of your power chair from the date of purchase, Quantum will repair or replace at our
option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
Structural frame components, including:
- Main frame • Fixed-position seat post
TWO-YEAR LIMITED WARRANTY
For two (2) years from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
Electronic components, including:
- Charger assembly
- Controller
- Joystick
Main frame assemblies, including:
- Metal seat framing
Other components, including:
- Electrical harnesses
18-MONTH LIMITED WARRANTY
For eighteen (18) months from the date of purchase, Quantum will repair or replace at our option to the
original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Motor/gearbox assembly • Power seat actuator
ONE-YEAR LIMITED WARRANTY
For one (1) year from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Accessories
- Anti-tip forks
- Front riggings
- Caster forks
- Brakes (electronic function ONLY)
- Front rigging mounting brackets
- Caster beam
SIX-MONTH LIMITED WARRANTY
For six (6) months from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Bearings and bushings
BATTERIES
The batteries are covered by a twelve (12) month (1 year) warranty from the original manufacturer.
NOTE: Gradual deterioration in performance due to being left in a discharged state, left in cold conditions for long periods of time, or worn out through heavy use is not covered.
RECONDITIONED UNITS WARRANTY
All reconditioned units are covered by a six-month warranty from Quantum effective from the date of purchase.
WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
- ABS plastic shrouds
- Brake pads
- Motor brushes
- Tires and tubes
- Upholstery and seating
- Fuses/bulbs
- Circumstances beyond the control of Quantum
- Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Quantum
- Repairs and/or modifications made to any part without specific consent from Quantum
Exclusions also include components with damage caused by:
- Contamination
- Abuse, misuse, accident, or negligence
- Battery fluid spillage or leakage
- Commercial use or use other than normal
- Improper operation, maintenance, or storage
SERVICE CHECKS AND WARRANTY SERVICE
Warranty service must be performed by a Quantum Rehab Provider. Do not return faulty parts to Quantum without prior written authorization. All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the purchaser.
Failure to follow the instructions, warnings, and notes in the owner’s manual and those located on your Quantum product can result in personal injury or product damage and will void Quantum’s product warranty.
There is no other express warranty.
IMPLIED WARRANTIES
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of purchase and to the extent permitted by law. Any and all other implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded.
