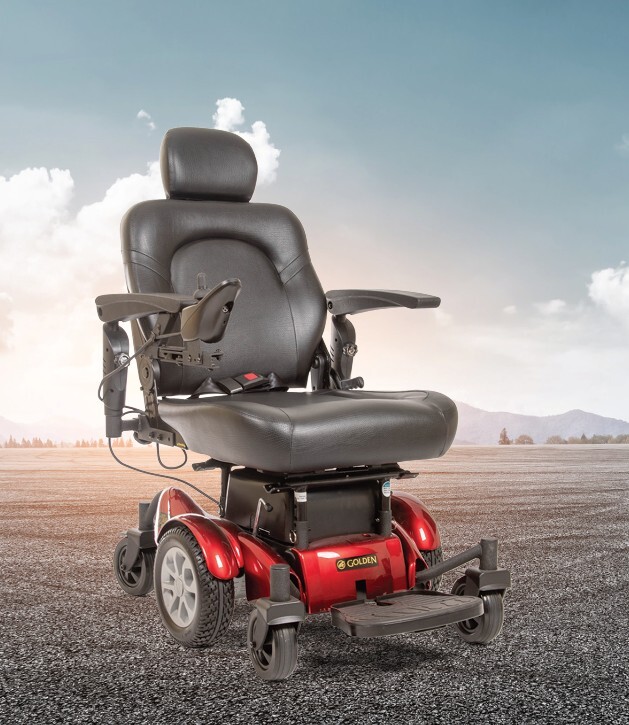

Golden Technologies Compass HD Power Wheelchair

Colors

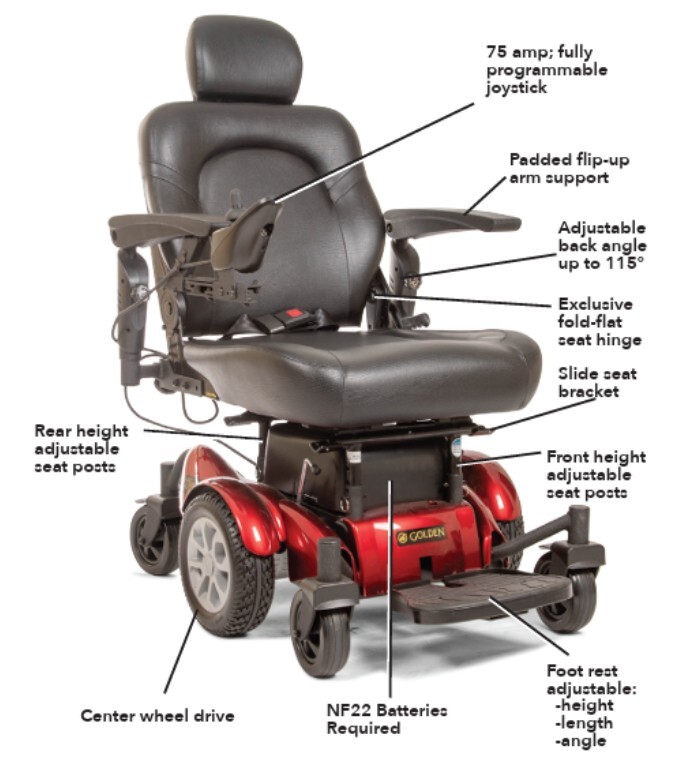

The heavy-duty version of the original Compass offers users a robust 450 lb. weight capacity with all of the same great features including the patented springless articulating chassis and true center-wheel drive design for unmatched maneuverability in tight spaces. The Compass HD comes in a variety of seat sizes up to 24” wide.

Available Accessories:

• Captain’s Seat
• Swing-away legrests
• Elevating legrests
• Stump support
• Footplate extender
• Cane/crutch holder kit
• Walker holder kit
• Oxygen tank holder kit
• Pack N Go

Specifications:

• Medicare Code - K0825
• User Weight Capacity - 450 lbs
• Drive Wheels - Center
• Maximum Speed - 4 mph
• Operating Range - 12 miles
• Ground Clearance - 3.5″
• Turning Radius - 20″
• Type Batteries - NF22
• Standard Colors - Red, Blue
• Freewheel Mode - Yes
• Electronic Speed Control - Yes
• Electro-Mechanical Brakes - Yes
• Charger - Off Board
• Controller - 75 Amp
• Length - 40″
• Width - 25″
• Height (ground to top of back of seat - 38.25” – 42.75”
• Height (ground to top of back of headrest) - 47″-53″
• Ground to Top of Seat - 21.25” – 24.25”
• Number Seat Height Positions - 5
• Size of Increments - 0.5″
• Weight of Unit (assembled) - 226 lbs
• Base Weight - 101 lbs
• Seat with Arms Weight - 51 lbs
• Batteries Weight - 37 lbs ea
• Tires (standard) - Flat Free / Non Marking Solid
• Center Tire - 10″
• Casters - 6″
• Standard Seat - Captain’s Seat
• Back Height (no headrest) - 19″
• Back Height with Headrest - 26.5″-30″
• Seat Width x Depth - 18″-24″x18″-20″
• Seat Color - Black Vinyl
• Optional Seat - Captain’s Chair
• Optional Seat 2 Back Height (no headrest) - 19″
• Optional Seat 2 Back Height (with headrest) - 26.5″-30″
• Optional Seat Width x Depth - 18″-24″x18″-20″
• Optional Seat Color - Black Vinyl
• Footrest Height Adjustable - Yes
• Footrest Angle Adjustable - Yes
• Warranty Frame - 5 Years
• Warranty Drive Train - 13 months
• Warranty Electronics - 13 months
• Warranty Batteries - 1 year
