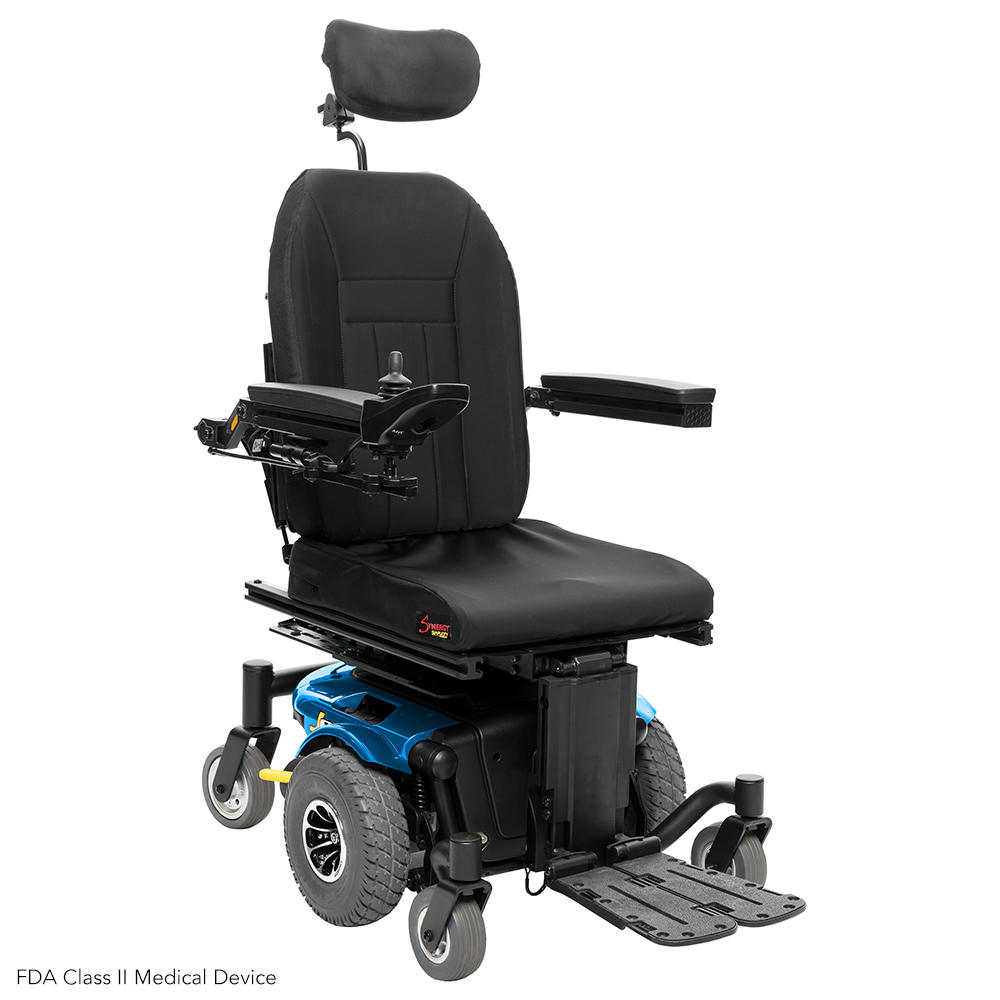

Quantum Rehab J6 Power Wheelchair
Chair Includes: Power Tilt or Power Seat Lift or No Power Option and Power Articulating Foot Platfrom or Flip-up Foot Platform

(No reviews yet) Write a Review

SKU: QrJ6

Quantum Rehab J6 Power Wheelchair
Chair Includes: Power Tilt or Power Seat Lift or No Power Option and Power Articulating Foot Platfrom or Flip-up Foot Platform

(No reviews yet) Write a Review

SKU: QrJ6

Chair includes J6 Power Base, U1 Interceptor Batteries, Flat Free Drive Tires and Casters, NE+ 6 Key Joystick Controller, Swing Away Joystick Bracket, Power Motors, Control Module, Electronic Harnesses, Tru Balance Power Tilt Seating System or Power Seat Lift or No Power Option , Seat Pan-Armrests Seating Assembly, Seat Belt, Power Seating Function Module, 10" Comfort Plus Headrest Pad with Mounting Bracket, Power Center Mount Articulating Foot Platform or Flip-up Foot Platform, Off Board Charging System

The Virtual ATP Consultation will show up in your shopping cart at no charge during checkout. Once the power wheelchair is purchased, you will receive an email link to schedule your FREE Virtual ATP Consultation before the chair is built and shipped to ensure compatibility, sizing and product knowledge. After the completion of the Virtual ATP Consultation, the product will go into production and soon be shipped!!

Description

The compact J6 Power Chair is the ultimate choice for clients who demand the superb stability of Mid-Wheel 6® Design and tight-quarter maneuverability. Highly adaptable, the J6 Power Wheelchair accepts a wide range of seating and electronics options while its powerful drivetrain delivers high-performance torque.

Features

Standard 5 mph motors offer advanced performance, precise control and repsonsiveness
ATX Suspension (Active-Trac® with extra stability) incorporates front OMNI-Casters and semi-independent rear caster beam for enhanced performance over more varied terrain
Bold aesthetics
Mid-wheel Drive
14" Flat Free Drive Wheels
6" Solid Front Casters and 6" Solid Rear Casters
2.9" Ground Clearance
21" Turning Radius
Up to 5 mph
24.5" Base Width
Weight Limit: Standard- 300 lbs.

Colors

J6 Compatible Seating

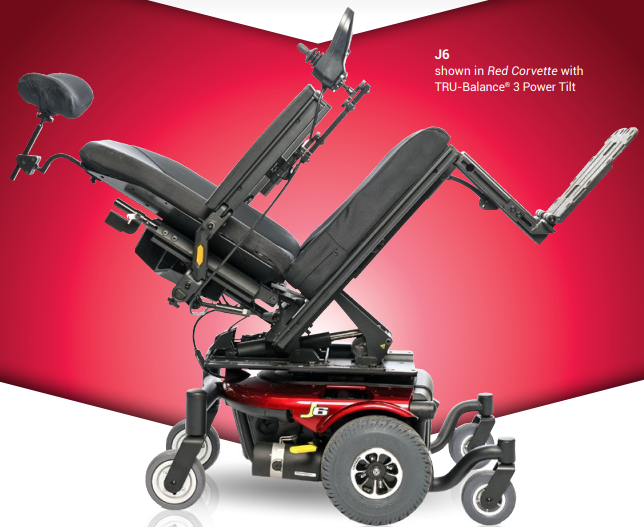

TRU-Balance® 3 Power Positioning Systems

TRU-Balance® 3 Power Positioning Systems feature an innovative design that maximizes functional independence while providing an appealing look and feel. TRU-Balance 3 has the ability for quick and easy fine-tuning adjustments to ensure maximum comfort and positioning.

Synergy Seating

The Synergy Seating System offers a clean, streamlined appearance and unparalleled ease of adjustment.

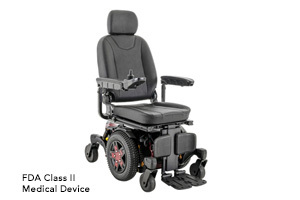

Captain Seating is a standard option on Quantum Rehab® power chairs and features a black vinyl height-adjustable seat back, with options including a solid seat pan, a removable standard seat cushion, limited recline, and depth adjustability.

Electronics

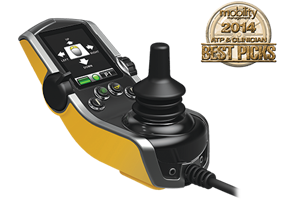

The Q-Logic 2 Drive Control System by Quantum Rehab® features programming and customization options for a smooth ride. The Q-Logic Series creates an adaptable, expandable control system that serves even the most complex needs while delivering a host of exclusive features.

The NE+ is a non-expandable rehab electronic controller that offers 2-actuator control for TRU-Balance® Power Positioning Systems and a standard 1/8" auxiliary port for adaptive switches.

The NE is a non-expandable rehab electronic controller that delivers simplicity without limiting features, and is for use with power chairs without power seating options.

Specifications

Model	J6
Drive Configuration	Mid-wheel Drive
Drive Wheels	10" Solid Optional: 10" Pneumatic
Caster Wheels	Front: 5" Solid Rear: 6" Solid
Anti-Tip Wheels	N/A
Maximum Speed⁴	Up to 4 mph
Ground Clearance	2.5" (frame)
Turning Radius⁵	22"
Overall Length¹¹	34.74" without foot riggings
Base Width	23.19"
Seating Sizes	TRU-Balance® 3 Synergy®: W: 10-20" D: 10-20" Static: W: 10-20" D: 10-20" Power Tilt: W: 14-20" D: 14-20" Lift & Tilt: N/A
Seat-to-Floor Heights¹⁶	TRU-Balance® 3 Synergy®: 15.75-17.5"⁸ Static: 16.75"⁸ Power Tilt⁸: 16.75" Lift & Tilt⁸: N/A
Battery Size⁶	U-1
Battery Weight¹⁴	23.4 lbs.
Available Electronics¹²	70A Q-Logic 2 70A Q-Logic NE 70A Q-Logic NE+
Battery Charger	5A Off-board
Motor Packages	2-Pole 4 mph
Weight Capacity⁷	300 lbs.⁹
Base Weight	100.2 lbs.
Medicare Code Coverage	Group 2: Standard (K0822/K0823) Single Power (K0835)
Notes: ¹ Standard ² Optional ³ Requires HD Suspension ⁴ Speed varies with user weight, terrain type, battery charge, battery condition and tire pressure. ⁵ Without front riggings ⁶ Battery capacity may change when adding power positioning systems. ⁷ Weight capacity is dictated by the selection of seating. ⁸ All measurements +/- 1/8" with 18" x 18" seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8" with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for details. Limited measurements are in the lowest position; does not include elevating system unless specified. ⁹ 250 lbs. weight capacity with TRU-Balance® Systems ¹⁰ Maximum dimensions of the Manual Recline vary by power base and seating system. Call for details. ¹¹ Without foot riggings ¹² All Quantum Rehab® units can be ordered with specialty controls ¹³ Required with high-speed motors ¹⁴ Battery weight may vary +/- 3 lbs. based on manufacturer. ¹⁵ Weight capacity is reduced to 400 lbs. with the 10" Lift. ¹⁶ Seat-to-floor heights are measured with the unit unloaded.

Quantum Rehab

Quantum Rehab® is dedicated to being the premier global innovator of consumer-inspired complex rehab mobility technologies that not only deliver medical comfort, but also the features needed toward overall well-being, serving the entirety of users activities of daily living.

Specs

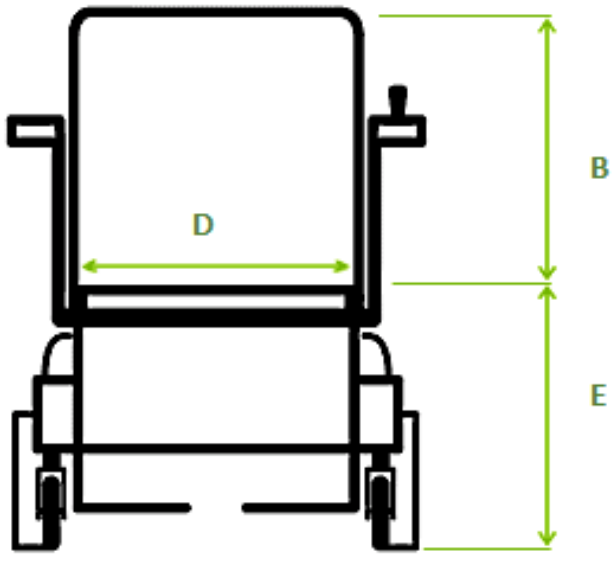

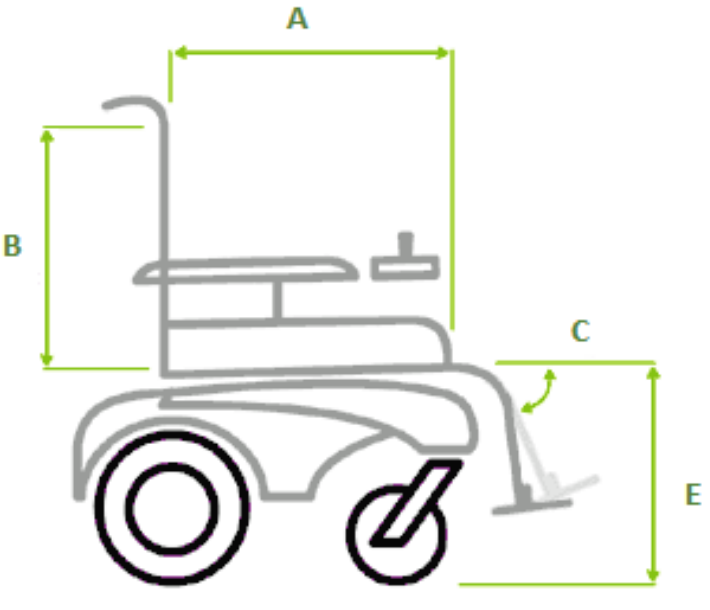

Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration.

C-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.

D-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

E-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never footpropelled by the user - so excluding the additional two-inch footrest height for propelling is very rare.
Warranty Information
LIFETIME LIMITED WARRANTY
For the lifetime of your power chair from the date of purchase, Quantum will repair or replace at our
option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
Structural frame components, including:
- Main frame • Fixed-position seat post
TWO-YEAR LIMITED WARRANTY
For two (2) years from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
Electronic components, including:
- Charger assembly
- Controller
- Joystick
Main frame assemblies, including:
- Metal seat framing
Other components, including:
- Electrical harnesses
18-MONTH LIMITED WARRANTY
For eighteen (18) months from the date of purchase, Quantum will repair or replace at our option to the
original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Motor/gearbox assembly • Power seat actuator
ONE-YEAR LIMITED WARRANTY
For one (1) year from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Accessories
- Anti-tip forks
- Front riggings
- Caster forks
- Brakes (electronic function ONLY)
- Front rigging mounting brackets
- Caster beam
SIX-MONTH LIMITED WARRANTY
For six (6) months from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Bearings and bushings
BATTERIES
The batteries are covered by a twelve (12) month (1 year) warranty from the original manufacturer.
NOTE: Gradual deterioration in performance due to being left in a discharged state, left in cold conditions for long periods of time, or worn out through heavy use is not covered.
RECONDITIONED UNITS WARRANTY
All reconditioned units are covered by a six-month warranty from Quantum effective from the date of purchase.
WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
- ABS plastic shrouds
- Brake pads
- Motor brushes
- Tires and tubes
- Upholstery and seating
- Fuses/bulbs
- Circumstances beyond the control of Quantum
- Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Quantum
- Repairs and/or modifications made to any part without specific consent from Quantum
Exclusions also include components with damage caused by:
- Contamination
- Abuse, misuse, accident, or negligence
- Battery fluid spillage or leakage
- Commercial use or use other than normal
- Improper operation, maintenance, or storage
SERVICE CHECKS AND WARRANTY SERVICE
Warranty service must be performed by a Quantum Rehab Provider. Do not return faulty parts to Quantum without prior written authorization. All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the purchaser.
Failure to follow the instructions, warnings, and notes in the owner’s manual and those located on your Quantum product can result in personal injury or product damage and will void Quantum’s product warranty.
There is no other express warranty.
IMPLIED WARRANTIES
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of purchase and to the extent permitted by law. Any and all other implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded.
