Description

Find Your Limit... And Push Beyond.

The redefined style and superior design of Rogue² is the perfect balance of performance, functionality and self-expression. Developed to fit any lifestyle, every element of the chair has been enhanced to provide you with an optimal experience, wherever you go.

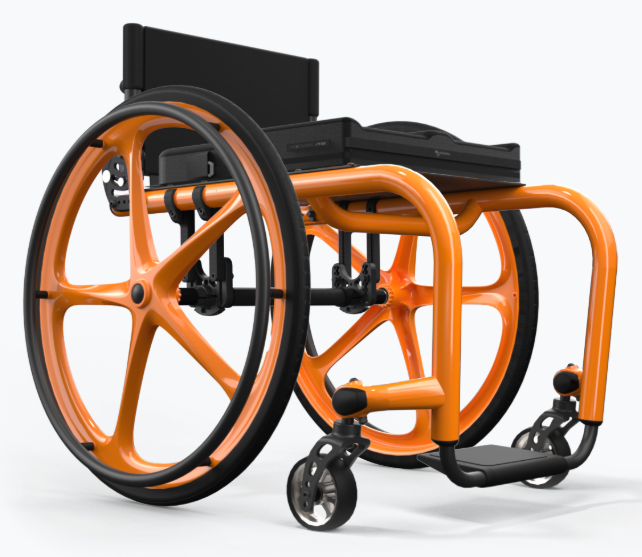

Elevate Your Ride Say goodbye to the ordinary and embrace the extraordinary as you explore limitless color combinations to create a wheelchair that truly reflects your style and personality. Whether you’re drawn to bold, vibrant hues or prefer sleek, subtle tones, the Color Visualizer brings your vision to life in real time.

FEATURES

Relax Positions Go from your selected back angle to a +4° or +9° relax position providing just enough recline to adjust clothing or simply relax.

Back Angle Adjustment Adjusting the backrest has never been easier. Using one tool and no disassembly, change the backrest angle with the rider in the chair. Simply insert your allen key and rotate.

Wing Design The wings are designed to get you as close as possible to where you’re going and what you need. Available with an Optimized position to minimize the chairs footprint or an Expanded position that maximizes stability. The intuitive Caster Angle Adjustment System makes it easy to get perfect alignment at any seat angle, while the corrosion resistant components protect your chair from the elements.

Lightest-in-class New design, effortless adjustments, enhanced strength and the durability expected from the most seasoned riders - with NO change to weight.

Smooth Transitions Limit damage to clothes and vehicles. Our camber tube clamp design provides a smooth transition across your body while loading your chair into a vehicle.

User Activated Anti-Tips Ergonomic rubberized grip makes putting the anti-tip(s) into any of the three achievable positions effortless. While seated, flip the anti-tip(s) up or into the in-use position. To minimize chair size for transfers simply move the anti-tip into the "stow" position. Available in pairs or singles with a left or right mount option.

Dimple Track Ki’s patented dimple track provides exceptional guidance and grab. Only Ki Rigid Wheelchairs ensure you stay square when you set your center of gravity position.

V-Front Frame Taper Customize the front end to be just right for the Rider with a 3.5° or 7° angle from seat to footrest. Also available with 1” and 2” Y-Frame Taper options.

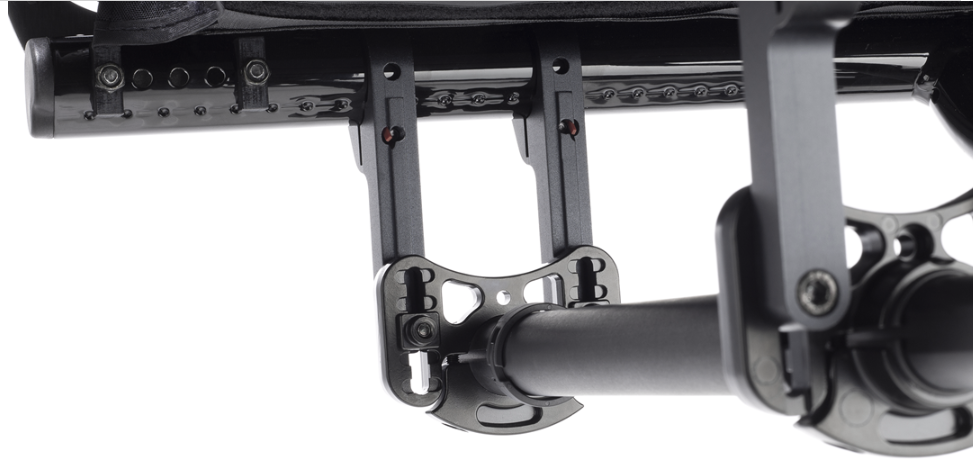

Easy to optimize The indexed rear seat height adjustment is quick, easy and requires no disassembly. Loosen the fasteners on each side and select the position you want. The indexed positions will give you accurate alignment every time.

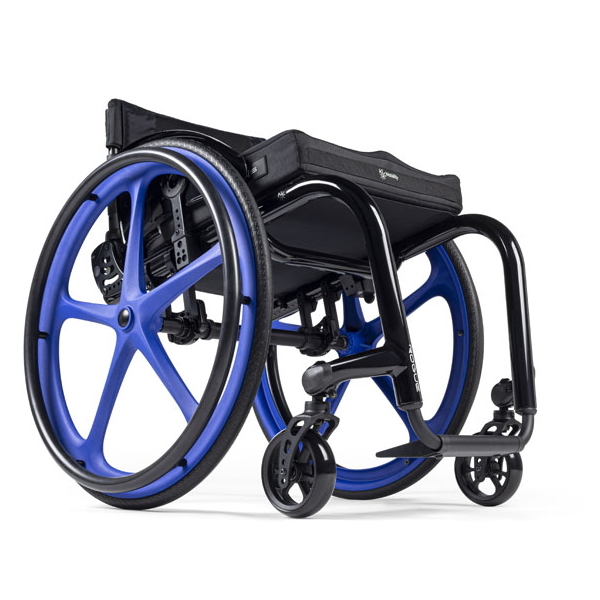

Mag The standard mag is lighter, more rigid and looks great in any of our 21 color options. Maxx Mag is exclusively available on Ki products and is available in 20”, 22” and 24”.

SPECIFICATIONS
Dimensions
Transport Weight	10.6 lbs
Seat Width	12" - 20"
Seat Depth	14" - 20"
Front Seat Height:	13.5" - 20.5"
Rear Seat Height:	13.5" - 20"
Tubing Size:	1 3/8"
Camber:	0°, 2°, 4°, 6°, 8°
Weight Capacity:	275 LBS
Transit Approved:	YES

COLORS

Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.

c-
Rear Seat to Floor

Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.

D-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular

E-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

F-
Wheel Camber

Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.

G-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

I-
Center of Gravity

Measure from the front of the seat back post to the center of the rear axle.

J-
Seat to Footrest Length

Measure from the edge of the seat upholstery to the top rear of the footrest.

K-
Backrest Angle

Measure the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurement for every .5" of dump
