Merits Health Gemini

(No reviews yet) Write a Review

SKU: Merits-Gemini-P301

Merits Health Gemini

(No reviews yet) Write a Review

SKU: Merits-Gemini-P301

Description

Merits Health P301 Gemini Heavy Duty Power Wheelchair

The Gemini heavy duty powerchair by Merits Health seamlessly combines comfort with functionality. With highly adjustable features, a unique suspension system, and excellent maneuverability, this chair is ready to perform while keeping you comfortable. The Gemini is designed to be highly adaptable, so whether you’re using it at home or roaming about town, this chair is up to the challenge. The Gemini navigates obstacles with ease. It has a tight, 21 inch turning radius that’s perfect for getting around small spaces so it’s ideal for indoor use. If you’re tackling more rugged terrain, you can rest easy; the Gemini has an impressive 4 inch ground clearance, a ten degree incline rating, large 14 inch foam-filled drive tires, and a suspension system to get you through any situation.

The Gemini navigates obstacles with ease. It has a tight, 21 inch turning radius that’s perfect for getting around small spaces so it’s ideal for indoor use.

Adjustable 22" wide captain seat with reclining back
Power Seat Elevation Option, 7.5" of seat elevation
Unique suspension system and high-density foam seat provide a smooth and comfortable ride.
The sophisticated controller coupled with 14" aluminum cast drive wheels offer excellent maneuverability.
Aluminum footplate with flip-up height and angle adjustability provides various comfort positions.
Weight capacity: 450lbs
Unique suspension system and high-density foam seat provide a smooth and comfortable ride
The sophisticated controller coupled with 14" aluminum cast drive wheels offer excellent maneuverability
Comfortable 22" (20" with seat elevator) wide captain seat has swivel and folding capabilities with adjustable head and backrest
Aluminum footplate with flip-up height and angle adjustability provides various comfort positions
Programmable controller with a wide range of selections to suit the needs and demands of different users

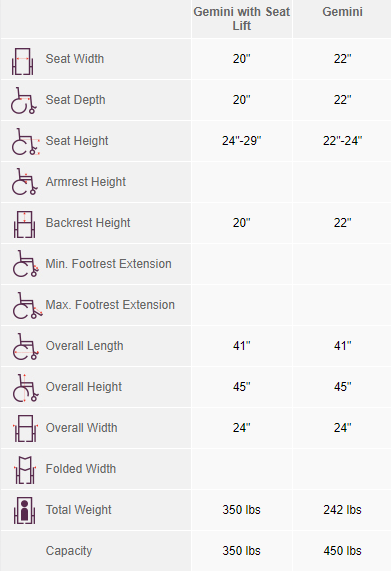

Merits Health Gemini specs

TECHNICAL SPECS

Max Speed	5mph
Range	up to 20 miles
Turning Radius	21"
Ground Clearance	4"
Motor	DC 24V, 240W
Controller	Dynamic Shark 60A/PG VR2 60A
Battery	12V/22NF(50AH) x 2pcs
Charger	5A off-board
Gradient	10°
Casters	9" foam filled tires
Drive Wheels	14" foam filled tires
Brakes	intelligent, regenerative, electromagnetic

Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration.

C-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.

D-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

E-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never footpropelled by the user - so excluding the additional two-inch footrest height for propelling is very rare.
Videos
Videos Hide Videos Show Videos
- 【Merits】P301 Heavy Duty RWD Powerbase Wheelchair

  Merits P301 GEMINI Heavy Duty RWD Powerbase Wheelchair merges ...
Warranty Information
FIVE-YEAR LIMITED WARRANTY Merits Health Products, Inc. warrants the main frame against defects in material and workmanship for the lifetime expectancy of this power chair (5 years). For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty. Warranty exclusions: Tires, plastic or rubber parts, upholstery/arm-pads, painted surfaces, seating, bearings. Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty. Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us. WARRANTY EXCLUSIONS This warranty does not extend to those items which may require replacement due to normal wear and tear. Full product warranty is extended to the original purchaser for new consumer purchases only. This warranty is not extended to third-party payers or renters for whom a separate rental agreement exists. Please contact your authorized Merits Provider for further information on rental product warranty. • ABS Plastic Shrouds • Motor Brushes • Upholstery and Seating • Brake Pads (wear items) • Tires and Tubes • Fuses/Bulbs • Circumstances beyond the control of Merits • Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Merits Mobility Products • Repairs and/or modifications made to any part without specific consent from Merits Exclusions also include components with damage or failure caused by: • Contamination • Abuse, misuse, accident, or negligence • Battery fluid spillage or leakage • Items not mentioned as covered specifically will not be covered • Use other than normal design specifications • Improper operation, maintenance, or storage NOTE: If there is an increase in the operational noise level in the trans-axle, the warranty does not apply. An increase in operational noise level usually occurs due to abusive and excessive strain on the scooter. NOTE: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period of time, or worn out through heavy use is not covered.
