Description

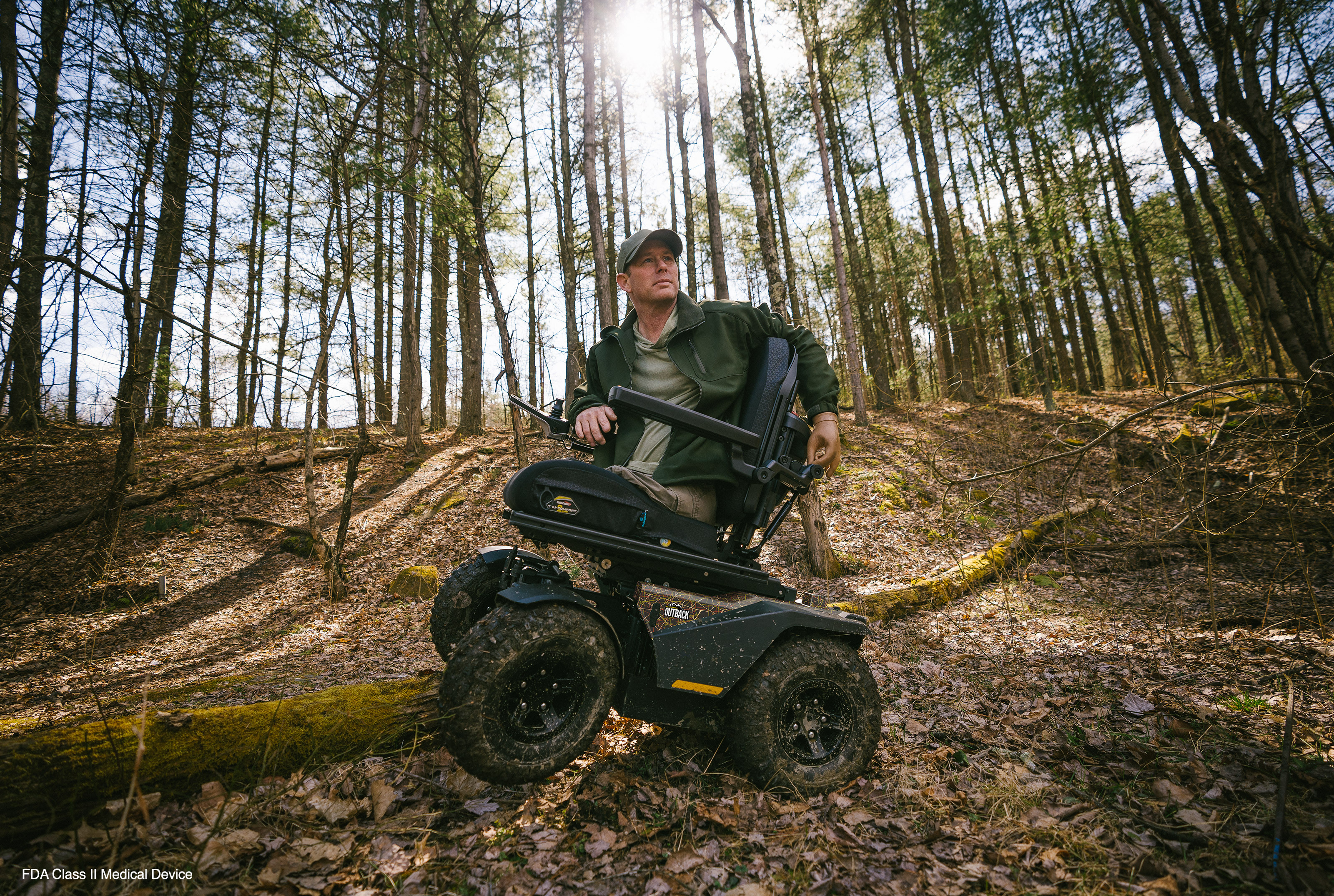

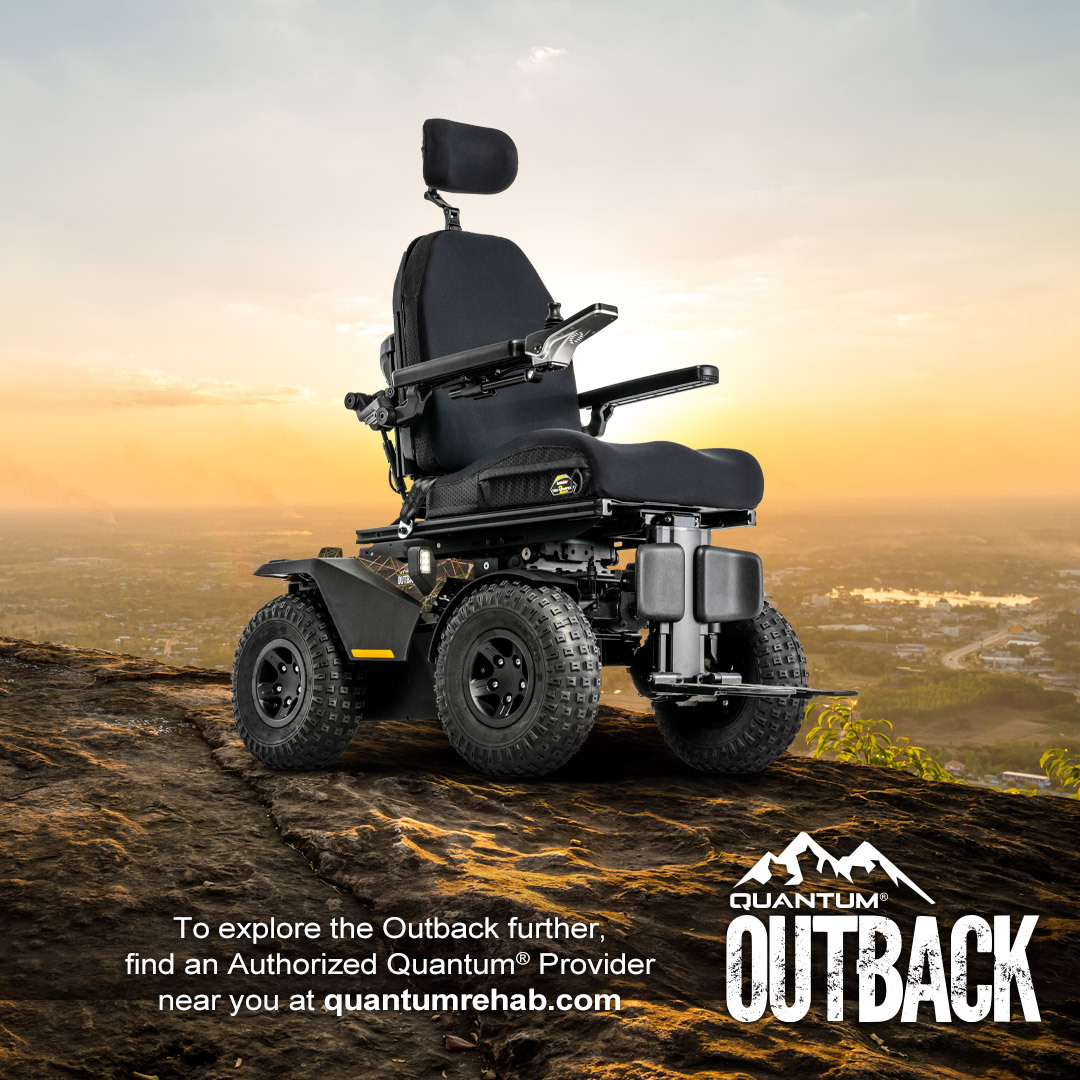

Quantum Rehab® welcomes adventurers and nature enthusiasts to unleash their wild side with the release of our cutting-edge 4x4 all-terrain power chair, the Quantum® Outback! Inspired by a joint development effort with our Australian subsidiary, the Quantum Outback was designed and built with the outdoors in mind. Crafted for those who dare to defy conventional limits, this rugged 4-wheel independent motor mobility solution promises to expand your outdoor driving experience whether you're navigating wooded trails or exploring uncharted terrain.
- 4-pole motors
- New camo color choices
- Full LED lighting package
- SRS (Smooth Ride Suspension)
- Unmatched driving performance and ride quality
- Advanced stability for smooth obstacle transitions

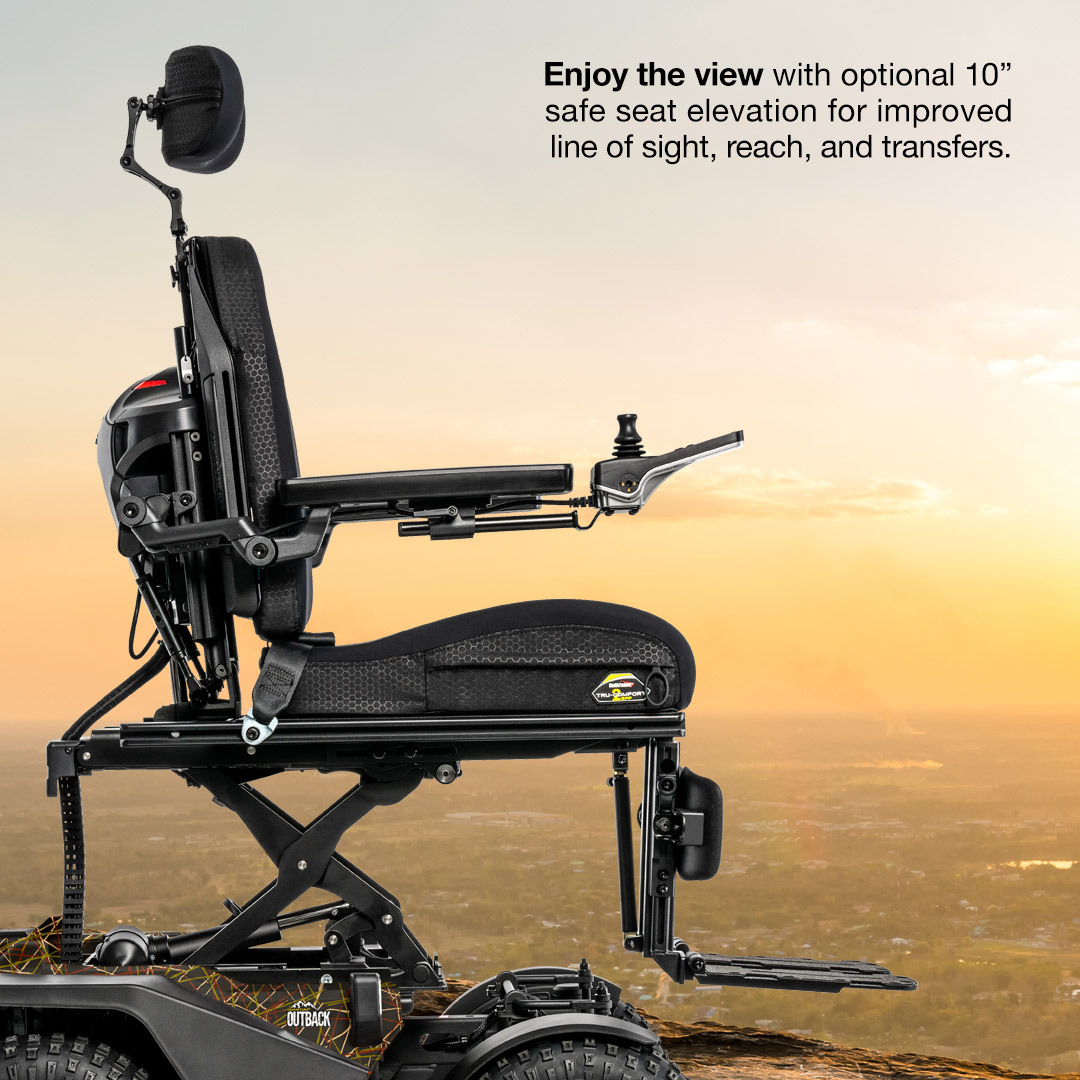

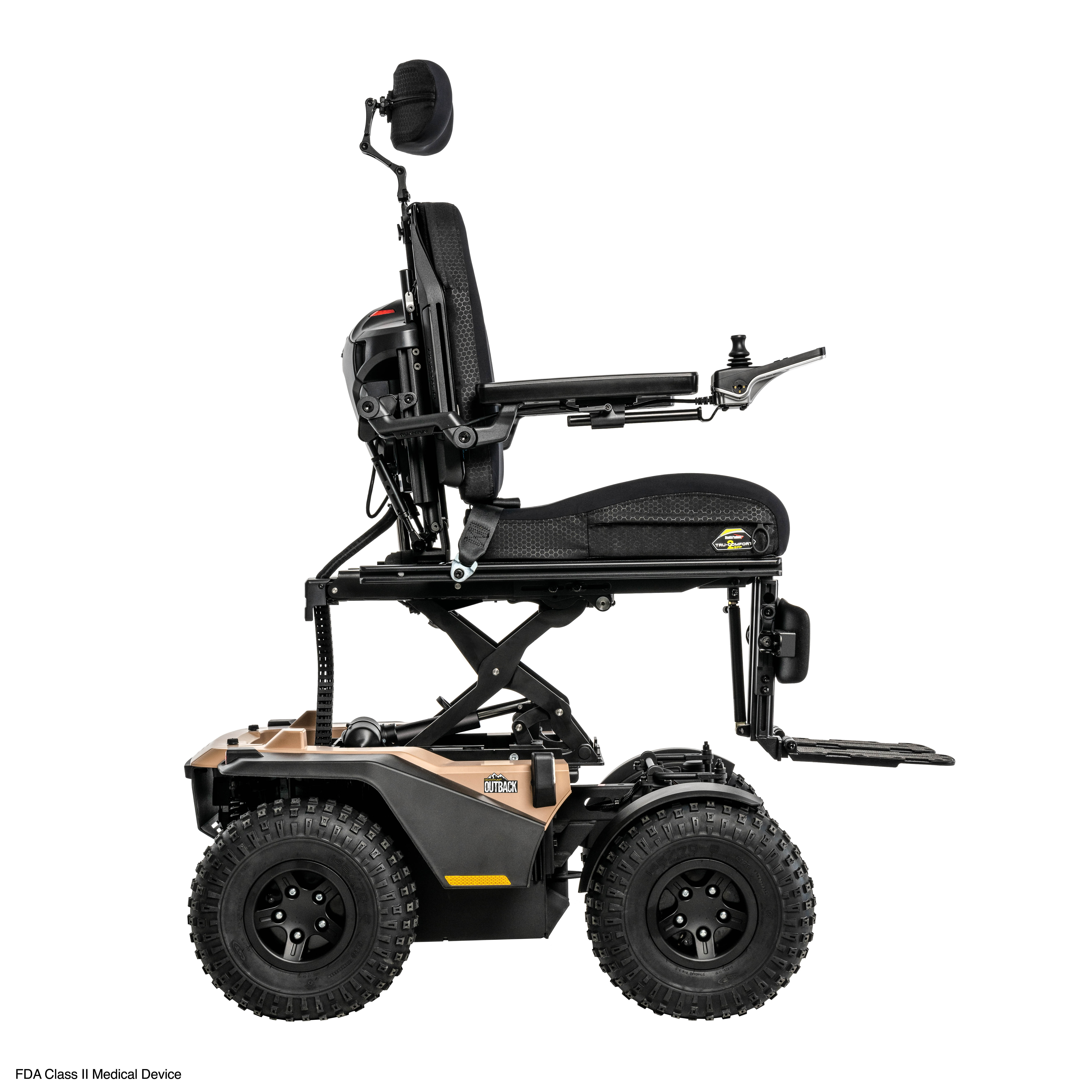

- Optional: 10” of power adjustable safe seat elevation at speeds of up to 3.2 mph
- Quantum® backup camera

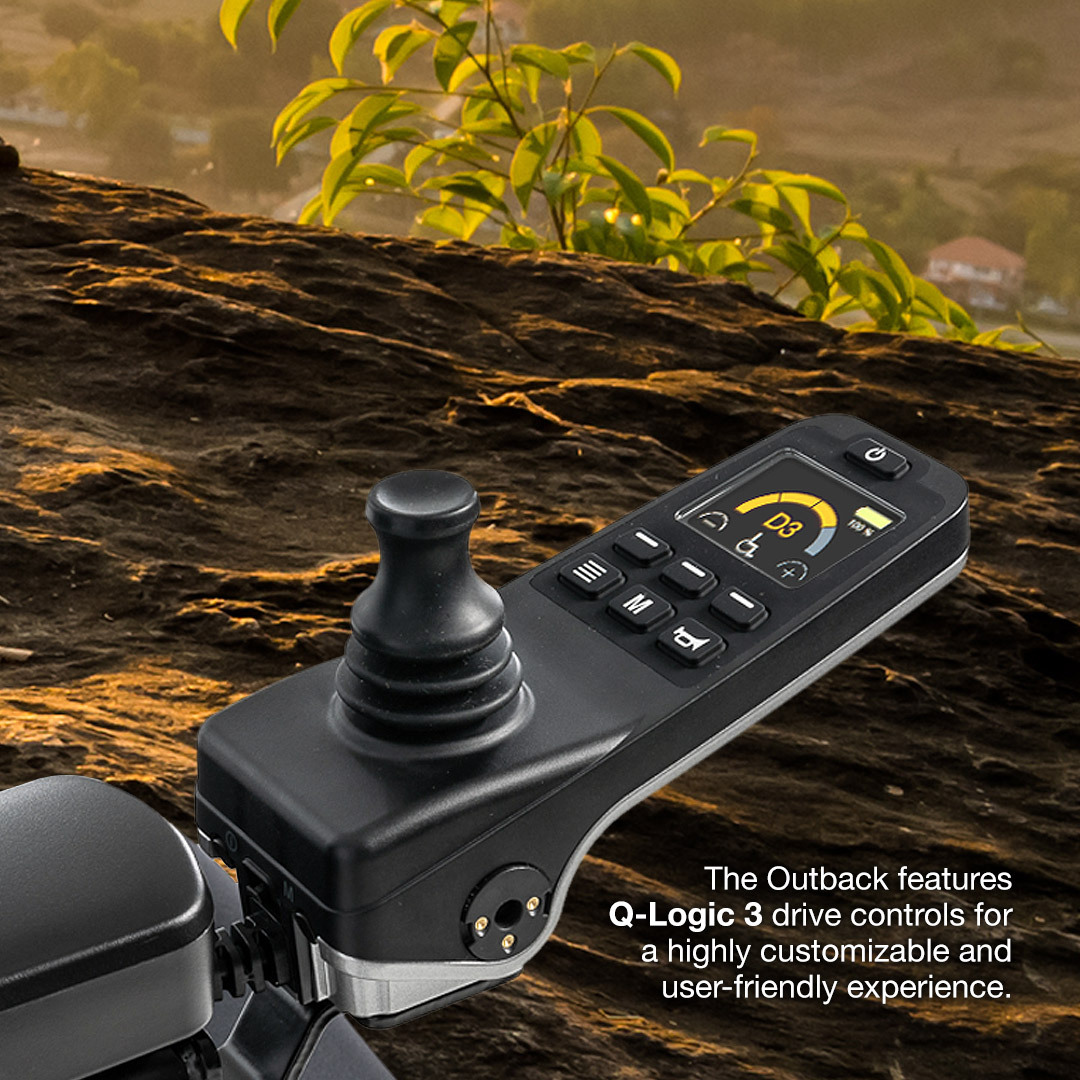

The Q-Logic 3 Advanced Drive Control System from Quantum Rehab® is like no other power wheelchair electronics system. Designed from clinician and consumer feedback, Q-Logic 3 is user-friendly and highly customizable. This adaptable, expandable control system can increase and maximize independence.
There's Only One...SRS

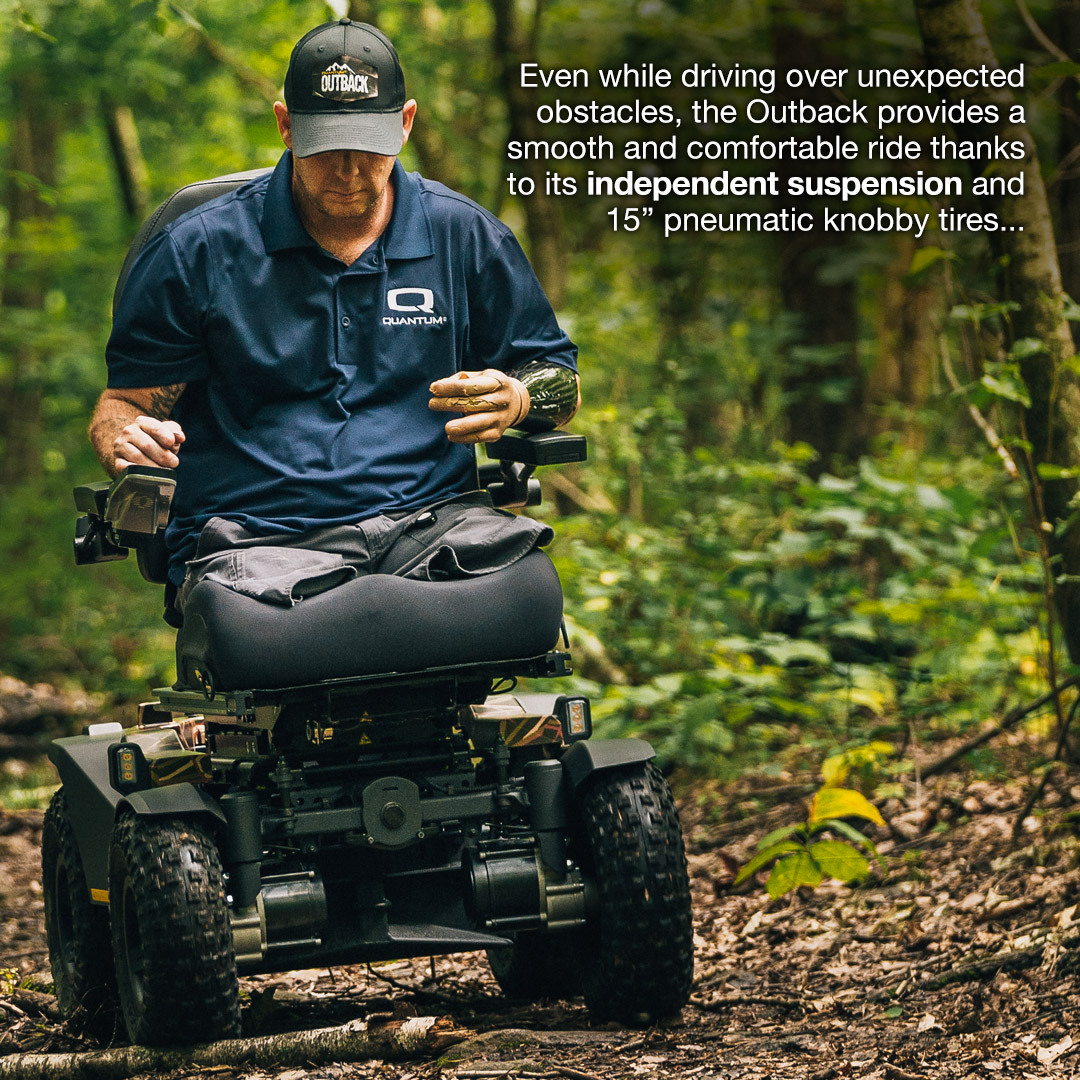

SRS (Smooth Ride Suspension) is a superior automotive-grade power chair suspension developed after two years of research and consumer feedback.
SRS provides an ultra-smooth and quiet ride. The geometry in which the springs are built into the base of the power chair allows for independent caster and wheel travel.
With unprecedented comfort and ride quality, SRS delivers exceptional driving performance over multiple terrains. Additionally, SRS adds stability to optional safe seat elevation.
When you want a smooth, comfortable ride, unmatched performance and advanced stability, there’s only one choice: SRS.
TRU-Balance® 3 Power Positioning Systems
TRU-Balance® 3 Power Positioning Systems feature an innovative design that maximizes functional independence while providing an appealing look and feel. TRU-Balance 3 has the ability for quick and easy fine-tuning adjustments to ensure maximum comfort and positioning. Optional 10" power adjustable seat height is available.
Captain Seating is a standard option on Quantum Rehab® power chairs and features a black vinyl height-adjustable seat back, with options including a solid seat pan, a removable standard seat cushion, limited recline, and depth adjustability.
Tropic Lightning (Camo)
Coming Soon
Desert (Camo)
Jungle (Camo)
Coming Soon
White (Camo)
Black (Camo)
Tan (Matte)
Cadet (Matte)
LED Lighting Package
A full switch-operated LED lighting package comes standard on the Quantum® Outback. With lighting mounted to the front shroud and the rear of the fender, above the drive tire on each side, the LED lights help ensure that you can see and be seen.
- Slim-line fender integration for ultimate compactness and durability
- Ultra-bright, long-life LEDs allow optimal user visibility at night
- White front lighting and red rear tail lighting
- Positioning of lights increases pedestrian visibility from a wide range of angles
Quantum® Backup Camera
The Quantum® backup camera is one camera with many uses and promotes safety with a rear viewing angle of 170 degrees.
Features include:
- Multiple mounting options available for the camera
- 3.5-inch display with protective case to prevent damage
- Choose between two modes: camera on at all times or camera turns on with a reverse command
- The display can be mounted off the armrest or side rails
- Infrared capabilities allow for use at night
- Available exclusively on Q-Logic 3
Model OUTBACK Weight Capacity 300 lbs. TRU Balance® 3 Power Positioning
350 lbs. Q-Captain SeatingMaximum Speed1 Up to 5 mph
Up to 6 mph optionalGround Clearance2 4.92 in. at motors Turning Radius2 49.2 in. Overall Size2,6 Length: 42 in. without foot riggings
Width: 28.82 in.Drive Wheels 15 in. pneumatic Suspension Independent Smooth Ride Suspension Model 4Front® 2 Range1,4 Up to 16 miles at 300 lbs.
Up to 17 miles at 220 lbs.Component Weights5 Base: 168.6 lbs.
Batteries: 58.6 lbs. eachDrivetrain 4 motor, independent drive Brakes Regenerative and electromechanical2 Batteries3 Group 27 Battery Charger 8-amp, off-board HCPCS Code7 K0899 Power Mobility Device not coded by DME PDAC. The Quantum® Outback is an FDA Class II Medical Device designed to aid individuals with mobility impairments
Notes:
1 Varies with base model, user weight, terrain type, battery amp hour rating (Ah), battery charge, battery condition, motors, controller type, tire type, and tire condition. This specification is subject to a variance of +10%, -5%.
2 Due to manufacturing tolerances and continued product improvement, this specification can be subject to a variance of (+ or -) 3%.
3 AGM, Gel-Cell, Lithium-ion or Hybrid Gel (Hybrid Gel is defined as Nano Silica Gel Electrolyte with High Quality Glass Mat Separators) type required. See “Batteries and Charging.”
4 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
5 Battery weight may vary based on manufacturer.
6 Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
7 DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and do not guarantee reimbursement. Payer coding, coverage and bundling guidelines may apply.
This product conforms to all applicable ANSI/RESNA, ISO 7176 Series, AS 3695.2, and EN12184 standards.
All specifications subject to change without notice. -
