Description
The design of the Edge® 3 is for the most advanced power chair experience ever! Upgraded SRS (Smooth Ride Suspension) provides a smooth, comfortable ride and advanced stability. Optional iLevel® is available at 4.5 mph with up to 12" of power adjustable seat height. Standard features include front and rear LED fender lights, a USB charger, and drive wheel color accents. The Edge® 3 is available in a total of 20 color options, including seven brand-new, bold colors.
Features
- Upgraded SRS (Smooth Ride Suspension)
- Optional iLevel's patented Extra Stability Technology® enhances safety while performing transfers, reach, and numerous other activities of daily living
- Fender lights, USB charger, and drive wheel color accents included
- Available with Accu-Trac Advanced Tracking Technology
- Optional 4.5 mph iLevel®
- Power Recline
- 85° - 175° of recline
- 300 lbs. weight capacity
- Seat-to-floor height as low as 17.5" on the Edge 3
- Standard shear reduction and cantilever armrests
- Power Tilt
- 50° of tilt
- Seat-to-floor height as low as 17.5" on the Edge 3
- Unmatched adjustment and durability
- 12” Power Adjustable Seat Lift with iLevel®
- iLevel® technology provides extra stability to ensure maximum safety for transfers, reach, and numerous other activities of daily living
- iLevel® technology enables the unit to drive up to 4.5 mph while elevated at 12" of lift
- 300 lbs. weight capacity
- Seat-to-floor height as low as 17.5” on the Edge 3
- LED fender lights standard with iLevel
- Available on the Edge 3 Stretto™, Edge® 3, Q6 Edge® 2.0, Q6 Edge® Z, and Q6 Edge® 2.0 X
The Q-Logic 3 Advanced Drive Control System from Quantum Rehab® is like no other power wheelchair electronics system. Designed from clinician and consumer feedback, Q-Logic 3 is user-friendly and highly customizable. This adaptable, expandable control system can increase and maximize independence. Q-Logic 3 with Bluetooth® and the infrared (IR) environmental controls enhances your independence.
TRU-Balance® 3
Power Positioning SystemsTRU-Balance® 3 Power Positioning Systems feature an innovative design that maximizes functional independence while providing an appealing look and feel. TRU-Balance 3 has the ability for quick and easy fine-tuning adjustments to ensure maximum comfort and positioning. Available configurations include power tilt, power recline, power articulating foot platform, and static seating.
Optional 12" iLevel® power adjustable seat height is available on the Stretto, Edge® 3, Q6 Edge® 2.0, Q6 Edge® Z, and Q6 Edge® 2.0 X, and 10" of safe seat elevation is offered on the 4Front® 2.
TRU-Balance® 3 Redesigned Back
A newly redesigned back is now standard on TRU-Balance® 3 Seating Systems.
- New sleek back design
- Toolless access to electronics
- New headrest
- Updated cushions
- Height-adjustable back pans
- Weighs 40 lbs.
- New rear reflectors
- New side lateral covers
- 4.38” of shear reduction
- 300-lb. weight capacity
TRU-Balance® 3 Power Articulating Foot Platform
- Broad articulation range for enhanced adjustment
- 450 lbs. weight capacity
- Unmatched adjustment, durability and strength
- Multiple calf pads, calf panel and footplate options
About iLevel® Power Chairs
iLevel® Power Chairs feature a revolutionary new power chair design for a better experience.
iLevel improves daily functionality and quality of life by allowing operation of the power chair with the seat fully elevated while at walking speed (at 4.5 mph).
iLevel's patented Extra Stability Technology® enhances safety for transfers, reach, and numerous other activities of daily living.

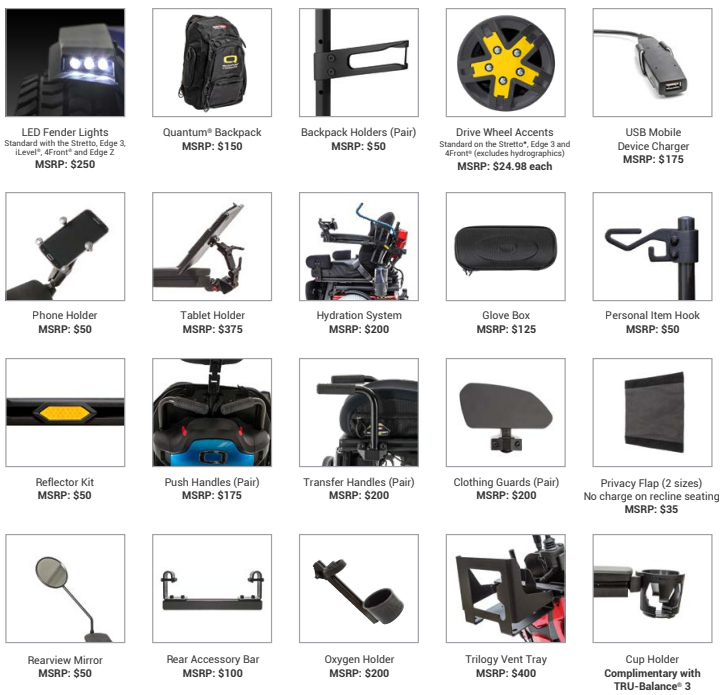

TRU-Balance® 3 Accessories (Can be added after purchase)
Quantum Rehab
Quantum Rehab® is dedicated to being the premier global innovator of consumer-inspired complex rehab mobility technologies that not only deliver medical comfort, but also the features needed toward overall well-being, serving the entirety of users' activities of daily living.
-
Specs
Edge® 3 Specifications
Model Q6 Edge® 3 Drive Configuration Mid-wheel drive Drive Wheels 14" solid
Optional: 14" pneumatic
Optional: 14" knobbyCaster Wheels Front: 6" solid
Rear: 6" solidMaximum Speed4 Up to 7 mph17
Up to 4.5 mph with iLevel activatedGround Clearance 2.7" (battery tray) Turning Radius5 20.5" Overall Length11 32.23" without front riggings Base Width 24.4" Seating Sizes Synergy®/Static: W: 10-22"; D: 10-22"
TRU-Balance® 3 Power Tilt: W: 12-22"; D: 12-22"
TRU-Balance® 3 Tilt and iLevel®: W: 12-22"; D: 12-22"
TRU-Balance® Flex Seating: W: 15-22” D: 15-20”Seat-to-Floor Heights16,17 Synergy®: 15.875-20.875”; Static: 16.5-18.5”
TRU-Balance® 3 Power Tilt8: 17.5-19.5"
TRU-Balance® 3 Tilt and iLevel®8: 17.5-19.5"
TRU-Balance® Flex Seating8: 16.5-18.25"Battery Size6 NF-22 (2) Battery Weight14 38 lbs. each Available Electronics12 120A Q-Logic 3 EX
120A Q-Logic 3e
75A Q-Logic NE
75A Q-Logic NE+Battery Charger 8A off-board Motor Packages Standard: 2-Pole, Mid-Wheel® 6
Optional: 4-pole, Mid-Wheel® 6Weight Capacity7 300 lbs. Base Weight 138.6 lbs. -

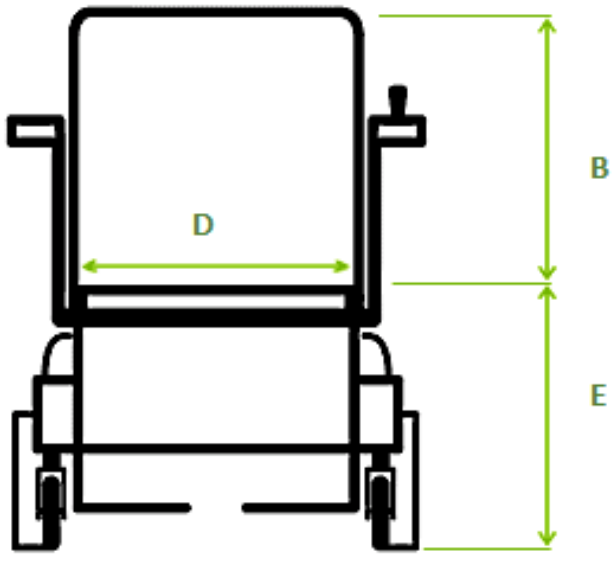

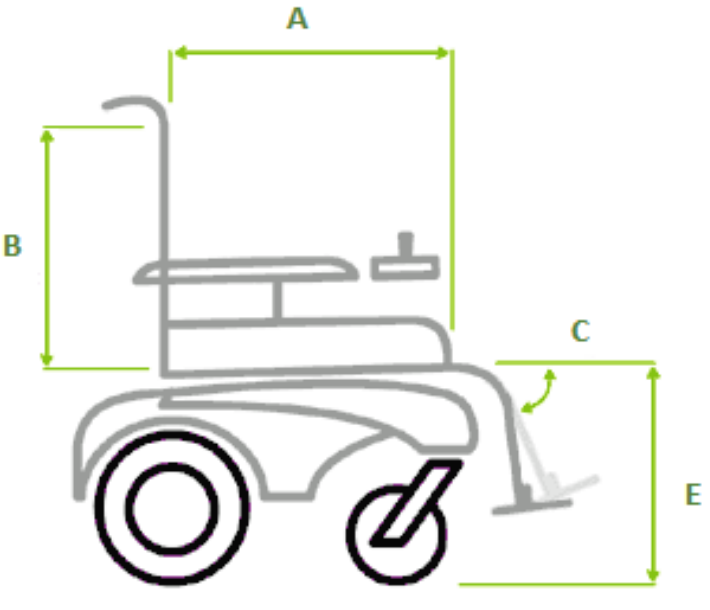

Size Chart / measuring guide
A-Seat DepthMeasure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.B-Back HeightMeasured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration.C-Hanger AngleDetermines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.D-Seat WidthDetermined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.E-Front Seat to FloorMeasure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never footpropelled by the user - so excluding the additional two-inch footrest height for propelling is very rare.
-
Videos
Videos Hide Videos Show Videos
-
iLevel: I Want Candy!
Sound on and sing along! Izzie Bullock scopes out the candy ai...
-
Scoping Out the Sub Shop at iLevel®
Feeling famished? Quantum brand ambassador Tim Shin scopes out...
-
The Need for Speed!
Brand ambassador Josh McDermott in his Edge® 3 Power Chair rac...
-

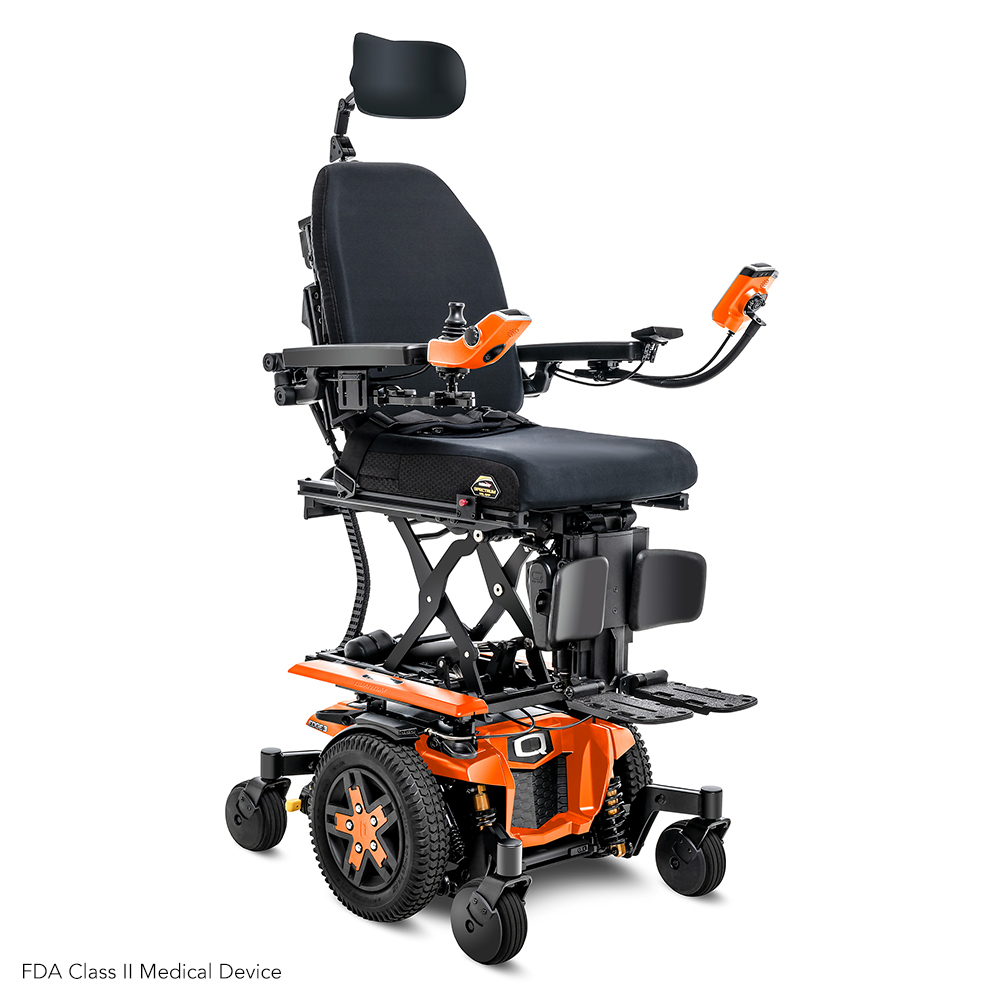

The Edge 3: For the Most Advanced Power Chair Experience Ever
Made in America from foreign and domestic parts, the Edge 3 is...
-
-
Warranty Information
LIFETIME LIMITED WARRANTY
For the lifetime of your power chair from the date of purchase, Quantum will repair or replace at our
option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
Structural frame components, including:
- Main frame • Fixed-position seat post
TWO-YEAR LIMITED WARRANTY
For two (2) years from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
Electronic components, including:
- Charger assembly
- Controller
- Joystick
Main frame assemblies, including:
- Metal seat framing
Other components, including:
- Electrical harnesses
18-MONTH LIMITED WARRANTY
For eighteen (18) months from the date of purchase, Quantum will repair or replace at our option to the
original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Motor/gearbox assembly • Power seat actuator
ONE-YEAR LIMITED WARRANTY
For one (1) year from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Accessories
- Anti-tip forks
- Front riggings
- Caster forks
- Brakes (electronic function ONLY)
- Front rigging mounting brackets
- Caster beam
SIX-MONTH LIMITED WARRANTY
For six (6) months from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Bearings and bushings
BATTERIES
The batteries are covered by a twelve (12) month (1 year) warranty from the original manufacturer.
NOTE: Gradual deterioration in performance due to being left in a discharged state, left in cold conditions for long periods of time, or worn out through heavy use is not covered.
RECONDITIONED UNITS WARRANTY
All reconditioned units are covered by a six-month warranty from Quantum effective from the date of purchase.
WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
- ABS plastic shrouds
- Brake pads
- Motor brushes
- Tires and tubes
- Upholstery and seating
- Fuses/bulbs
- Circumstances beyond the control of Quantum
- Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Quantum
- Repairs and/or modifications made to any part without specific consent from Quantum
Exclusions also include components with damage caused by:
- Contamination
- Abuse, misuse, accident, or negligence
- Battery fluid spillage or leakage
- Commercial use or use other than normal
- Improper operation, maintenance, or storage
SERVICE CHECKS AND WARRANTY SERVICE
Warranty service must be performed by a Quantum Rehab Provider. Do not return faulty parts to Quantum without prior written authorization. All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the purchaser.
Failure to follow the instructions, warnings, and notes in the owner’s manual and those located on your Quantum product can result in personal injury or product damage and will void Quantum’s product warranty.
There is no other express warranty.
IMPLIED WARRANTIES
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of purchase and to the extent permitted by law. Any and all other implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded.
