Build My Own

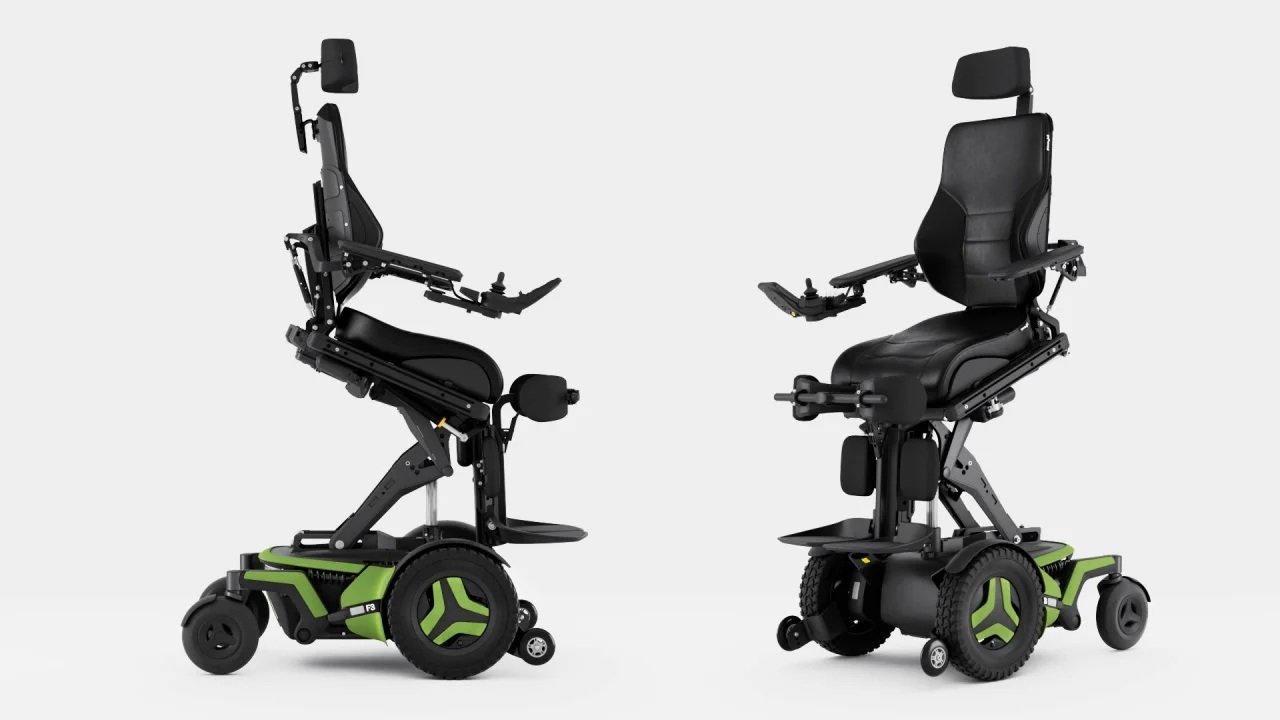

Permobil F3 Corpus Power Wheelchair
Chair Options: Power Tilt, Power Recline, Power Articulating Foot Platfrom and Active Height Power Adjustable Seat Height





Specifications

Maximum user weight	300 lbs.
Maximum speed options	6 mph
Driving range (1)	13 miles
Base width	24"
Base length	36" (40" w/ anti-tippers)
Minimum turning radius	26.5"
Ground clearance	3"
Optional seat elevator	12"
Battery type	Group 24 gel, Group 34 gel
Drive electronics	R-net 120A
Seat to floor height	17.5", 18.5", 19.5"
Power tilt options	0° - 50° posterior
Recline options	85° - 120° (manual), 85° - 150° (power)
Legrest elevation	85° - 170°
Armrest pad lengths	10", 13", 16" & 18"
Seat widths	17" - 23" (by 2" increments)
Seat depths	14" - 22" (by 1" increments)
Backrest height	20", 23" - 28" (by 1" increments)
(1) This represents the theoretical driving range when testing the wheelchair according to RESNA WC-2, Section 4. This test is performed under ideal conditions and actual range will vary depending on battery and driving condition
