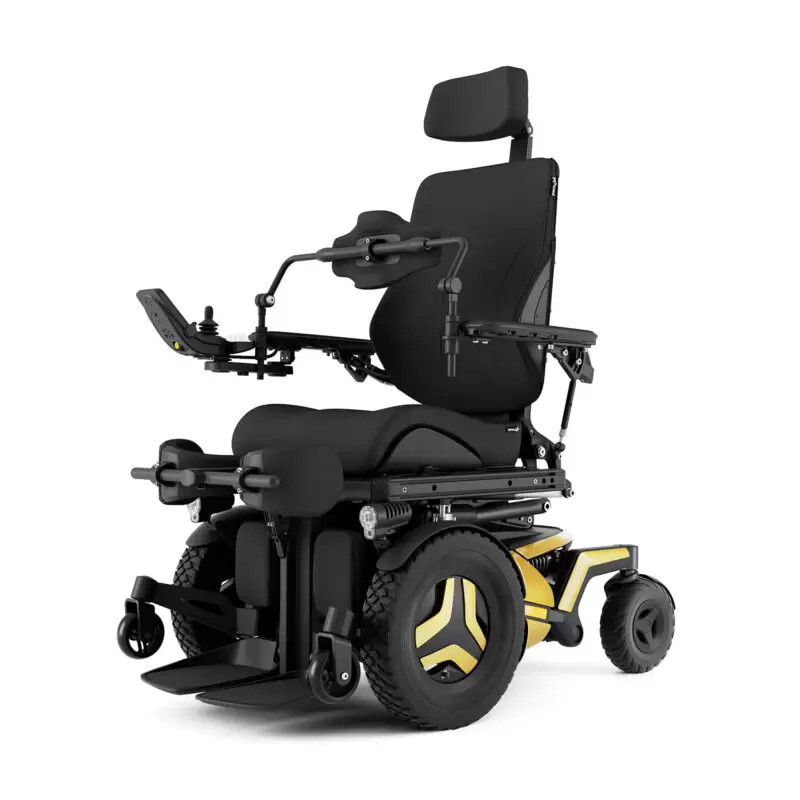

F5 Corpus VS
Stand Without Compromise
We combined all of the performance features of the F5 Corpus with superior power standing wheelchair functionality. Fully programmable standing sequences allow user position to be optimised using supine, semi-reclined or sit to stand techniques. Further customise standing positions with adjustable anterior chest pad, moldable knee supports and power articulating footplates. From face-to-face interactions to improved health outcomes, the F5VS empowers you to explore the vast array of standing wheelchair benefits.
Comfort is King
Corpus®, the world’s leading ergonomic seating system, just got better. Biomechanically optimized power positioning has been enhanced with Corpus Ergo Seat cushion with redesigned pelvic well and new Corpus Ergo backrest cushions with dual density foam. New Stretch-Air cover option is a breathable, machine washable fabric with a low moisture vapor transfer.
Make a Statement
New high power LED head lights are twice as bright, making it easier to see and be seen. With a sleek new design, expanded color/hydrographic options and powerful new LED lighting you should be prepared to turn a few heads in your new F-Series.
The chest bar and knee blocks on the F5 Corpus VS have been completely redesigned for comfort and accessibility. With features like simplified adjustment points and quick release mechanisms, utilizing a standing wheelchair has never been easier.
The F5 Corpus VS’ powered anti-tippers are attached directly to the chassis and automatically deploy during the stand sequence, providing the most stable standing platform available, no matter the angle.
The Corpus® Seating System
Our new dual density backrest foam promotes greater surface area contact while the redesigned Ergo seat pelvic well insert can help pressure redistribution and reduce peak pressures. Stretch-Air covers offer a breathable, moisture resistant fabric material to enhance comfort and help protect underlying foam. With features like programmable power footplates and standing backrest angle adjustments all while retaining 50º of tilt, the F5 Corpus VS stands without compromise.
ActiveReach™ and ActiveHeight™
Reach for More
ActiveReach and ActiveHeight combine seamlessly to put your world within reach. With up to 45° of ActiveReach forward tilt capability and up to 14” of ActiveHeight seat elevation, Permobil’s Corpus power positioning empowers you to reach for more and go further faster with elevated drive speeds of up to 3.2mph
Knowledge is Power
The MyPermobil app empowers you to do more and go further by sending real-time power wheelchair insights directly to your smartphone. Stay informed and feel confident as you get the most out of your Permobil power wheelchair.
MyPermobil requires additional hardware on your power wheelchair. New Permobil models that feature this hardware standard include M & F Series Corpus and Corpus VS models.
Reducing Contractures and Spasticity :- Extension of the upper body and alignment of the hip assists in delaying skeletal deformities, provides knee range of motion and reduces spasticity, which can contribute to safer transfers and improved positioning in the wheelchair. Enhancing Blood Flow :- Standing upright, changing position in chair, removes constrictions to circulation created when sitting, also helps in reducing edema. Breathing Easier :- When standing, the chest cavity is expanded, making diaphragmatic movements and breathing easier. In turn, improved breathing often helps a person’s ability to communicate by making speaking easier. Stronger and Straighter Bones :- Weight bearing from standing has shown to be effective in improving bone mineral density. Improving Bladder/Bowel Function :- Risk of bladder infection is decreased as it makes it easier to empty the bladder completely. Enabling Participation :-
Seat elevating helps the user make eye contact while the anterior tilt function helps the user reach further forward for objects. Small improvements like these make participating easier, improving self-confidence and further increasing the desire to take part in daily life as much as possible.
Reducing Risk of Pressure Ulcers :-
Offers regular pressure relief and improves sitting tolerance for those areas active when sitting or lying down. Safer Transfer :- Enables safe transfers – and functional access forward – with the help of seat elevating and anterior tilt. Functional Benefits :-
Maintains flexibility and allows for functional benefits in activities of daily living, such as better functional reach, seeing over obstacles, getting dressed and catheterization.
Permobil F5 VS corpus specifications Length 45.07" Width 25.78" - 31.10" Height 43.11" - 46.06" Minimum transport length 38.58" Minimum transport height 32.48" Seat height 17.71" Seat height with electric seat lift 17.71" - 31.49" Weight including batteries 432.1 lbs. Maximum user weight “Sit-to-stand” (max 80˚) 299.8 lbs. Maximum user weight ”Lay-to-”Stand” (max 80˚) 242.5 lbs. Seat width 16.53" - 22.44" (by 2") Seat depth 14.56" - 22.44" (by 1") Backrest width 14.17" / 16.14" / 18.11" / 20.07" Backrest height 23.4" / 24.4" / 25.3" / 26.37" Distance between armrests 14.96" - 18.89" / 18.89" - 22.83" Backrest angle - adjustable 180˚ Armrest height 8.46" - 13" Ground clearance 3" Legrest angle - adjustable 90˚ - 180˚ Battery capacity 2 x 73 A Range 25 - 35km* Maximum speed 12 km/h Turning diameter (ISO 7176-5) 60" Reversing width 44.88" Obstacle capability 2.7" - 3.93" Suspension: Yes Electronics R-net 120A Electric seat elevator Yes Electric tilt adjustment 50˚ Electric legrest adjustment Yes Electric backrest adjustment Yes Electric stand-up function Yes ISO 7176-19/ISO 10542-3 Yes - crash tested EN12182/EN12184 CE Yes
Permobil F5 VS corpus specifications
Size Chart / measuring guide
A-Seat DepthMeasure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.B-Back HeightMeasured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration.C-Hanger AngleDetermines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.D-Seat WidthDetermined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.E-Front Seat to FloorMeasure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never footpropelled by the user - so excluding the additional two-inch footrest height for propelling is very rare.
Videos Hide Videos Show Videos
Permobil F5 Corpus VS
You might want to hold a speech. Or hold a loved one. Standing...
2019 Permobil F5 VS - Lifestyle feat. Tyler
The F-Series builds on over 50 years of experience to create o...
Expand Your Mobility - 2019 Permobil F-Series
"Experience as much life as you possibly can" Power meets per...
Landon's Journey to Standing | Permobil F-Series
Permobil F-Series Power Wheelchair. Your world within reach. ...
TWO YEAR LIMITED PRODUCT WARRANTY The two year warranty package applies to the following Permobil wheelchairs: C400 Corpus 3G C400 Corpus II C400 Corpus Jr C400 Lowrider C400 VS Jr C500 Corpus 3G C500 Corpus II C500 Lowrider C500 RS C500 VS Chairman HD3 Corpus Street F5 Corpus F5 Corpus VS K450 MX Koala Miniflex M400 Corpus 3G X850 Corpus II NOTE: Corpus® Seating System carries a warranty of two years for the seating system only. Permobil Inc. (“Permobil”) warrants this Permobil wheelchair to be free from defects in material and workmanship for a period of two years under proper use, care and service. Permobil warrants the frame of each chassis for the lifetime of the customer. All warranties will cover parts only and do not extend beyond the initial purchaser from an authorized Permobil Dealer. COMMENCEMENT OF WARRANTY PERIOD Each warranty shall begin on the date the product (powered wheelchair base and/or seating system) is first delivered to the customer, or forty (40) days from the date the product is shipped to the Dealer by Permobil, whichever comes first. REPAIR OR REPLACEMENT For warranty service, customers should contact the Dealer from whom the product was purchased. In the event of a defect in material or workmanship, the Dealer must obtain a return authorization (RA) number from Permobil and the product must be shipped to a service center designated by Permobil. Permobil will repair or, at Permobil’s option, replace any product covered by the warranty. This warranty does not include any labor or shipping charges incurred in replacement for installation or repair and any such product. DISCLAIMER & LIMITATIONS OF REMEDIES The express warranties set forth in this agreement are in lieu of all other warranties of merchantability or fitness of purpose. In no event shall Permobil be liable for any direct, indirect, incidental or consequential damages resulting from any defect in this product.Warranty of parts subject to “normal wear and tear” (e.g. cushions, pads, upholstery, tires, bulbs, grips) are not covered in this warranty except as it applies todefects in material or construction. After the initial two-year period, or if the product is sold or ownership is otherwise transferred, replacement parts are subject to a 90 day warranty period and only in the event that the part is replaced according to requirements set forth in this agreement (see “Voiding of Warranties”). AMENDMENTS No person is authorized to alter, extend or waive the warranties of Permobil. An original document, countersigned by the party or parties concerned must be received by Permobil Inc. before any such amendment will be in effect. This warranty shall be extended as necessary to comply with state laws and requirements. Voiding of Warranties: The foregoing warranties are contingent upon the proper use, maintenance and care of the product.The warranty will be void if the product has been used improperly or if it has been repaired or any part replaced by persons other than Permobil or an authorized Dealer. The addition of equipment or features that are not manufactured or recommended by Permobil could affect the intended function of the Permobil product. The use or installation of non-Permobil issued equipment may invalidate the warranty
