Package includes Permobil F5 Corpus Power Base, Group 24 Gel Batteries, 14” Flat Free Drive Tires and Casters, Comfort Ride Pro Fully Independent Adjustable Suspension, ESP (Enhanced Steering Performance), Tie-Down Hardware for Strap Systems, R-Net Color Joystick Controller, Swing Away Joystick Bracket, Power Motors, Permobil Control Module, Electronic Harnesses, Corpus Power Tilt and Recline Seating System, Seat Pan-Armrests Seating Assembly, Seat Belt, Power Seating Function Module, 10” Plush Headrest Pad with Mounting Bracket, Power Center Mount Articulating Foot Platform, Off Board Charging System
The Virtual ATP Consultation will show up in your shopping cart at no charge during checkout. Once the power wheelchair is purchased, you will receive an email link to schedule your FREEVirtual ATP Consultation before the chair is built and shipped to ensure compatibility, sizing and product knowledge. After the completion of the Virtual ATP Consultation, the product will go into production and soon be shipped!!

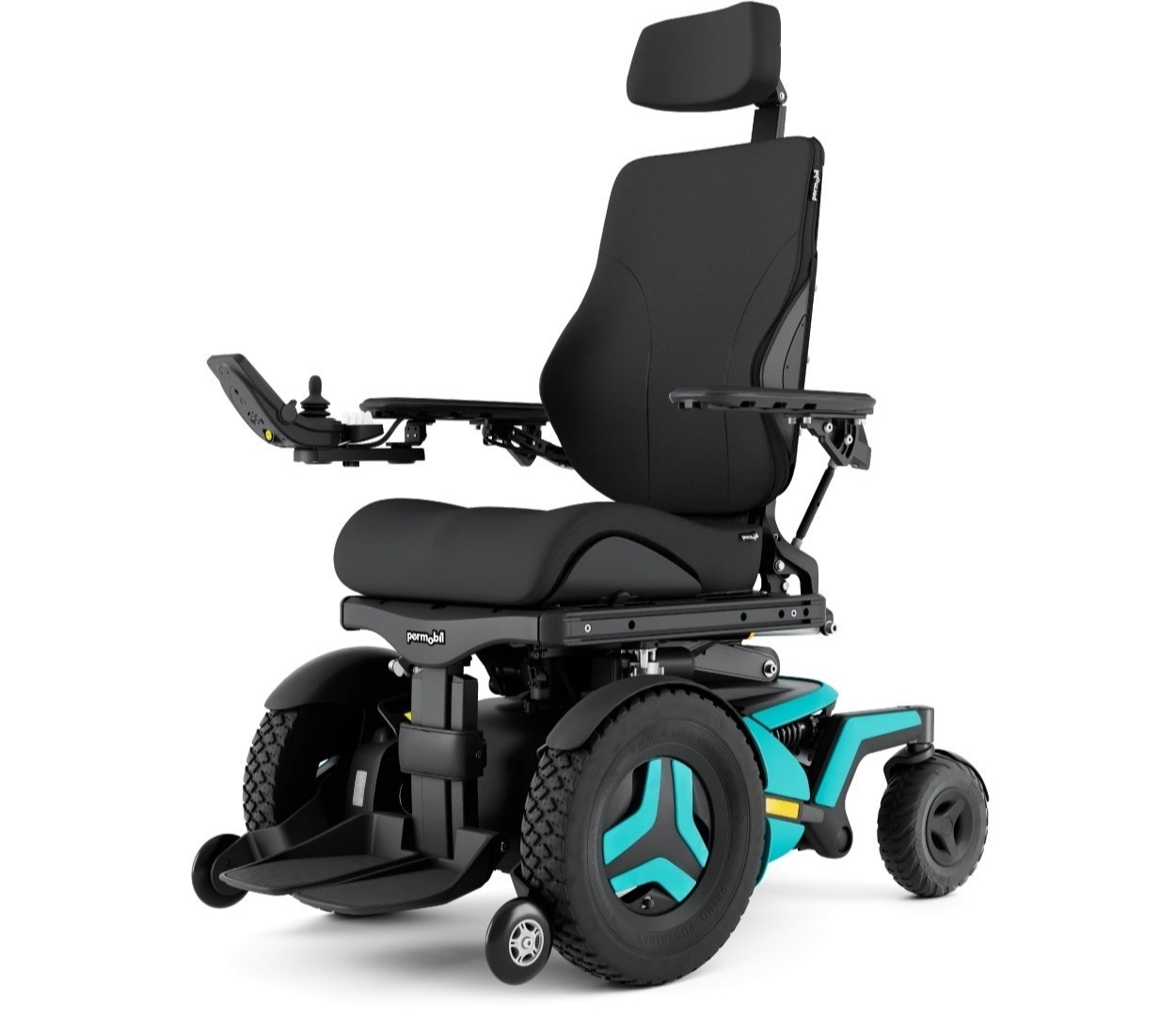

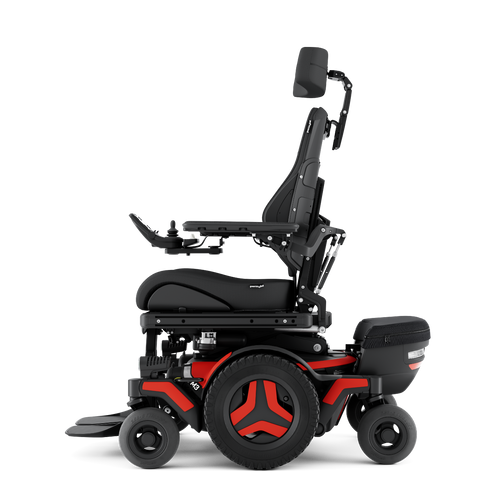

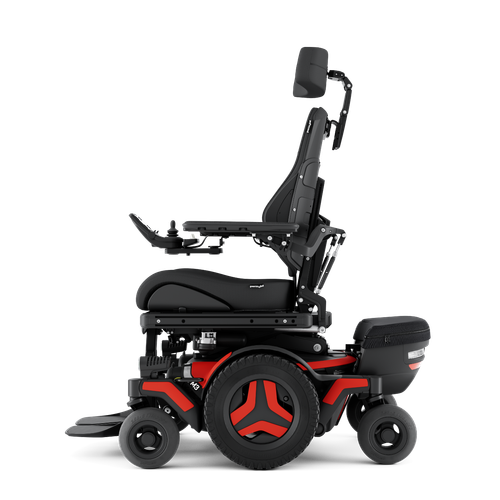

Power meets performance on the new F5 Corpus power wheelchair with a blazing 7.5mph top end speed and upgraded ComfortRide Pro suspension. All-wheel independent, fully adjustable, oil dampened shocks provide the ultimate in ride comfort while helping to reduce vibrations that can transfer from terrain up to user. Experience enhanced vibration reduction driving in all seat positions including an unprecedented 14” ActiveHeight seat elevation. Climb and reach higher with increased obstacle negotiation, exceptional motor torque and enhanced stability allowing up to 45° of ActiveReach forward tilt functionality. Standard performance options include aggressive tread tires, caster mud guard protection and 3 premium metallic colors.

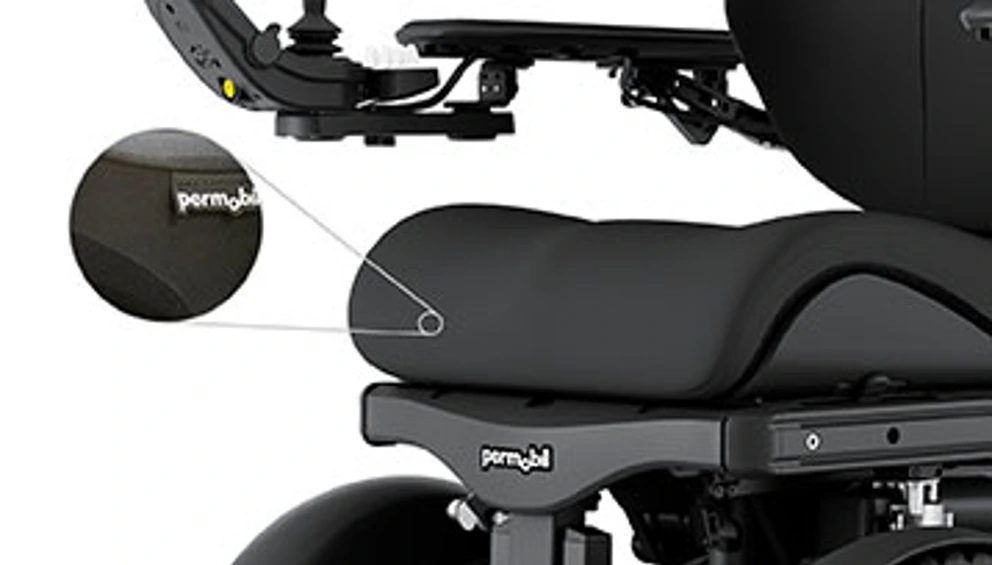

Corpus® Seating System:
Corpus Seating System comes with a new dual density backrest foam that promotes greater surface area contact while the newly designed Ergo seat pelvic well insert wich can help pressure redistribution and reduce peak pressures. Corpus is a biomechanically optimized power positioning that has been enhanced with Ergo seat and backrest cushions. Stretch-Air covers offer a breathable, moisture resistant fabric material to enhance comfort and help protect underlying foam.
Enhanced tilt functionality:With optional 10º, 20º, and 45º anterior tilt, while maintaining 50º posterior tilt.

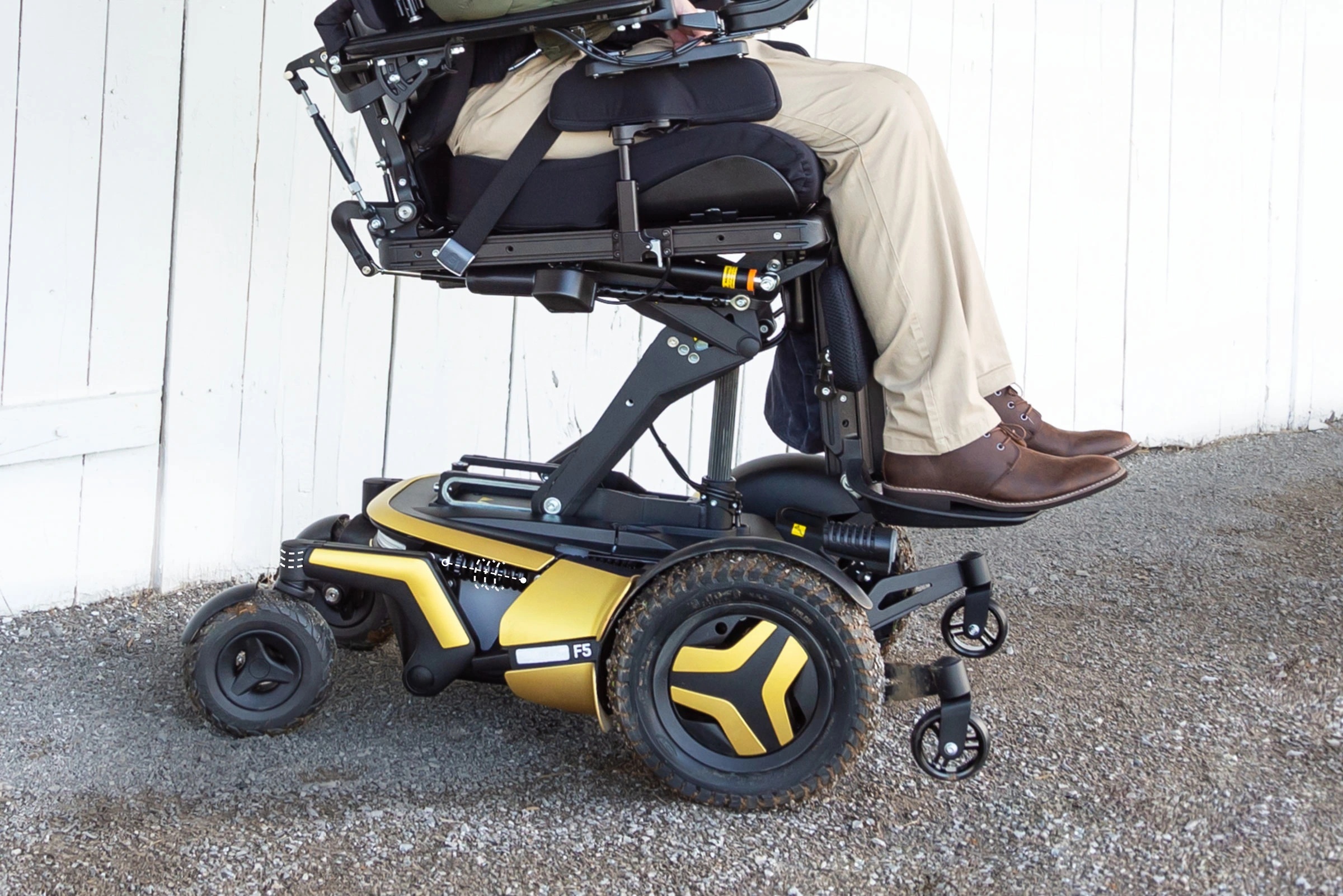

ComfortRide and ComfortRide Pro Suspension
Superior Suspension:Fully independent, adjustable ComfortRide and ComfortRide Pro suspension. Widest variety of driving experiences like superior vibration reduction, ride comfort and better drive performance. Front wheel driving experience which is further increased by patented ESP (Enhanced Steering Performance) gyroscope tracking technology, which provides exceptional tracking at high speeds, on side slopes or with alternative drive systems.

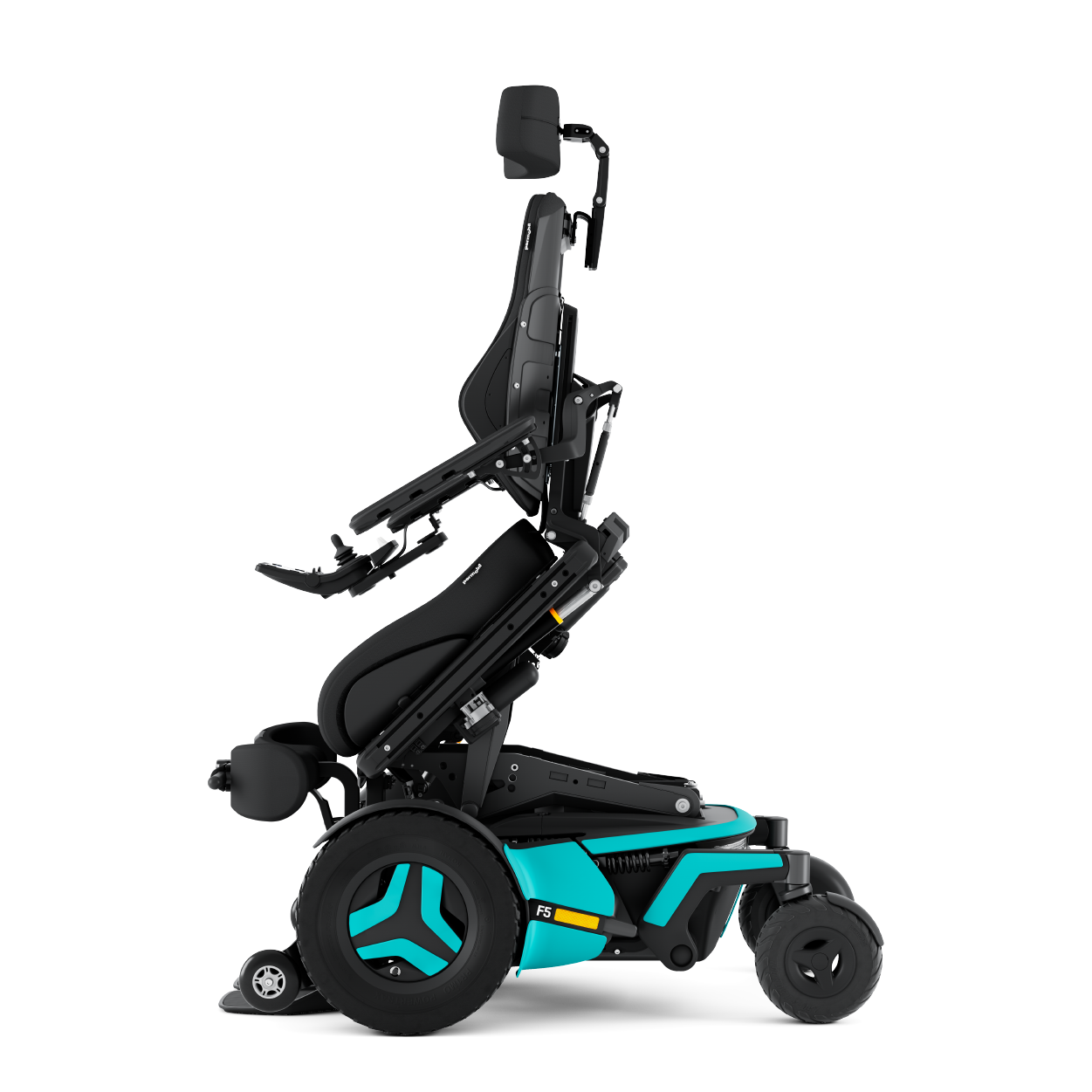

ActiveHeight™ and ActiveReach™
ActiveHeight™ elevation and ActiveReach™ forward tilt perform to create a seating system like no other seating system. With up to 14" of vertical seat adjustment and 45° of ActiveReach forward tilt capability, the F-Series empowers to reach for more further and go faster with new elevated drive speeds of up to 3.2mph.

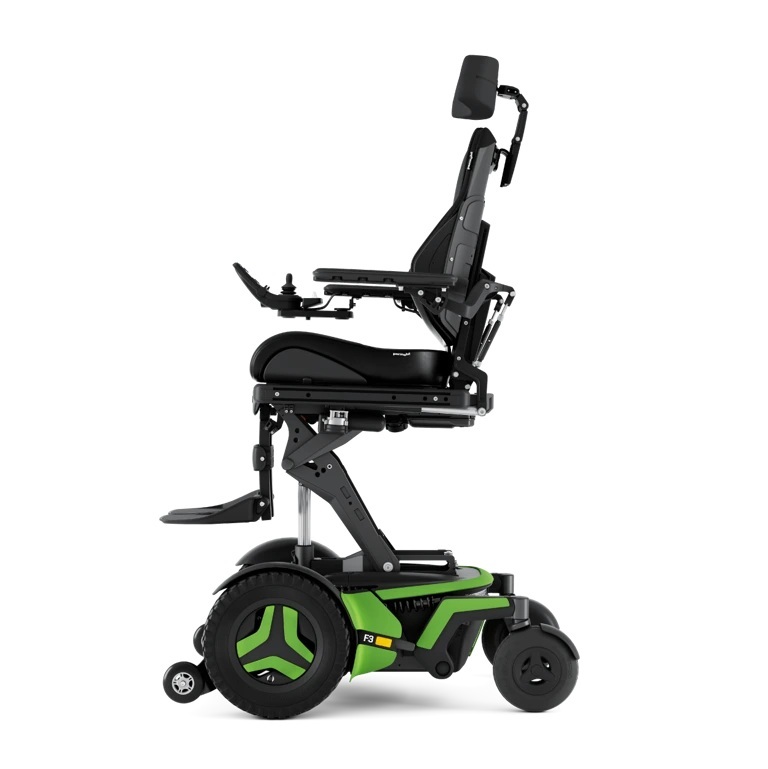

ActiveHeight™
With 12" and 14" seat elevator options which help in reaching new heights. While elevating, the seating system repositions 3.5" to maintain optimal forward stability. At full elevation, keep pace with a top speed of 3.2mph.
ActiveReach™
ActiveReach™ technology allows to reach for more by creating 4.5" of additional reach. ActiveReach can be used for moving to high cabinets, or even assist in transfers. Functional reach and transfers are improved using a seat elevator, many tasks are still limited as the chair is positioned sideways to the task at hand or knees are unable to remain under tabletops. ActiveReach™ pairs 12" and 14" of seat elevation with functional reach packages so that face objectives as well as a variety of possible transfer positions.
10º | Assists with stand pivot and lateral slide board transfers. Overcome fixed hip angles and maintain a functional line of sight.
20º – 45º | Programmable backrest and legrest angles ensure stability and function while moving into a fully tilted position. Removable knee block maintains positioning throughout.
30º – 45º | Position footplates to the ground negating the need to flip up footplates for safe transfers.

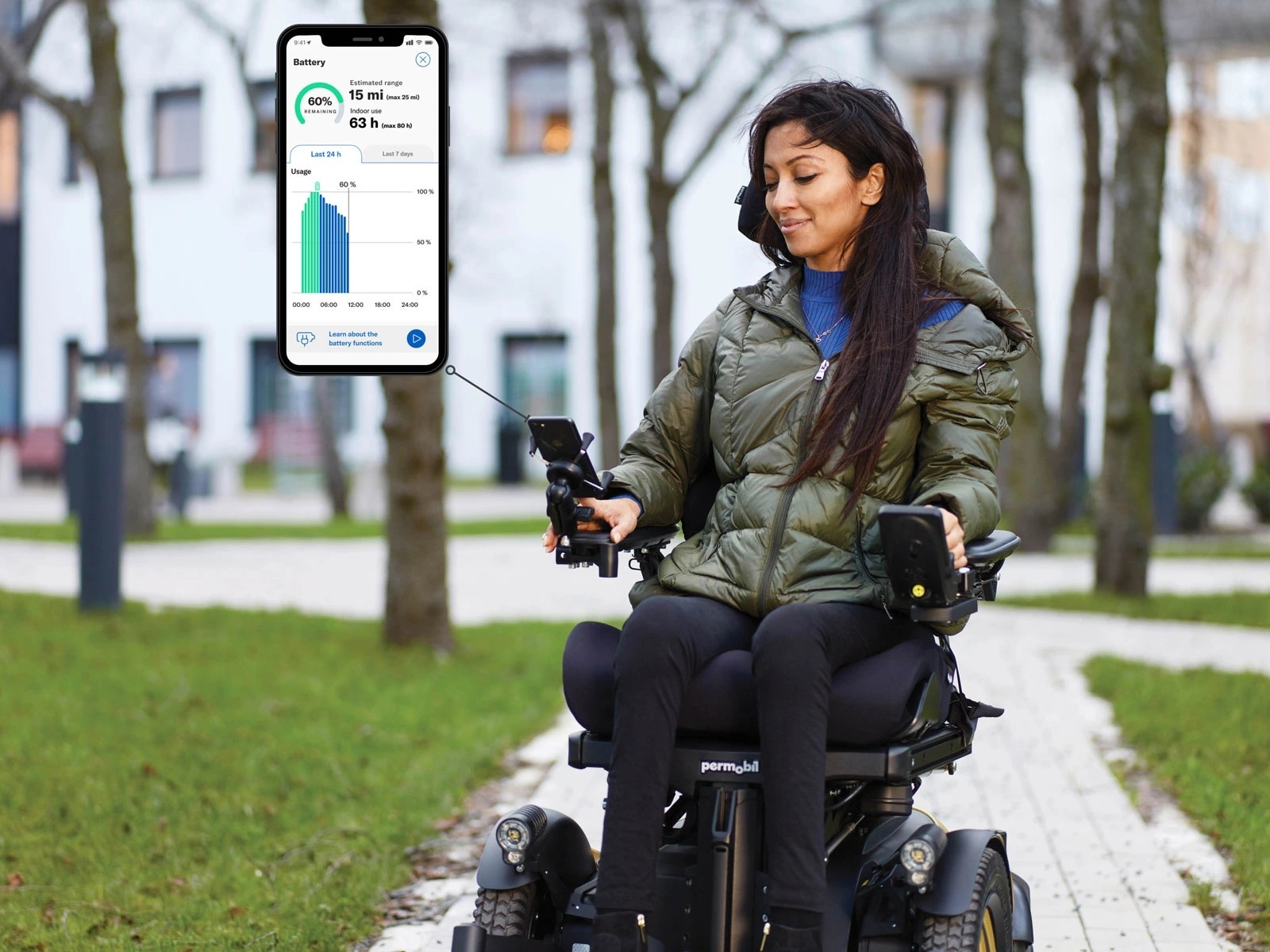

Permobil Connect
Now Permobil F5 offers superior level of technology that come to expect in daily routine life. Connecting users and service technicians through a single intuitive platform improves communication and helps user to be better prepared for the unexpected.
Additional Features

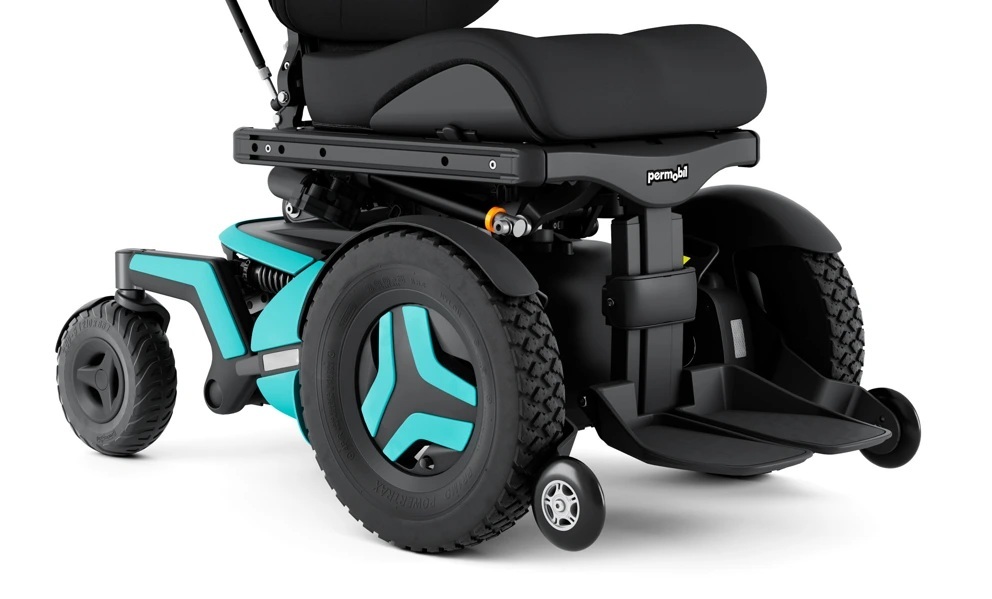

Low seat-to-floor height:As low as 17.5" with all power seat function means an improved accessibility.

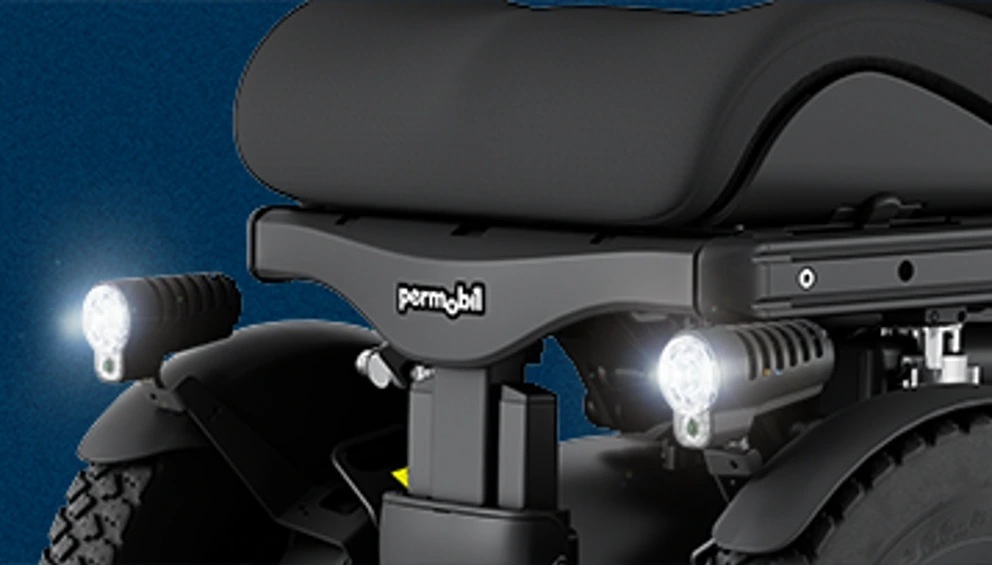

High power LED head lights:New LED headlights are twice as bright which makes it easier to see and be seen. With a sleek new design, expanded color/hydrographic options and powerful new LED lighting should be prepared to turn a few heads in new F-Series.

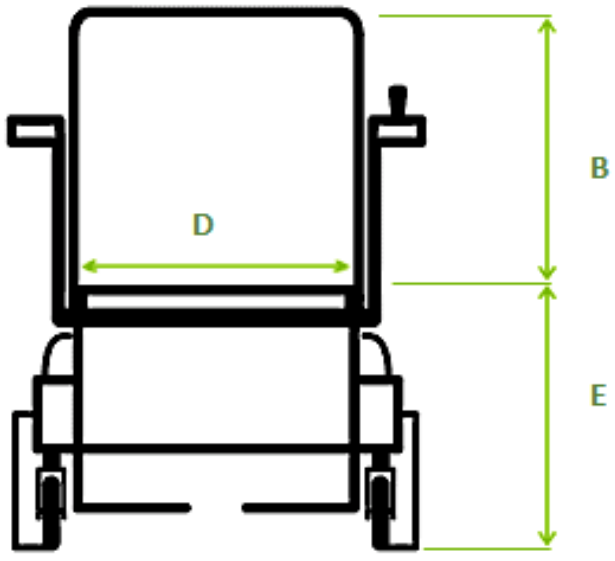

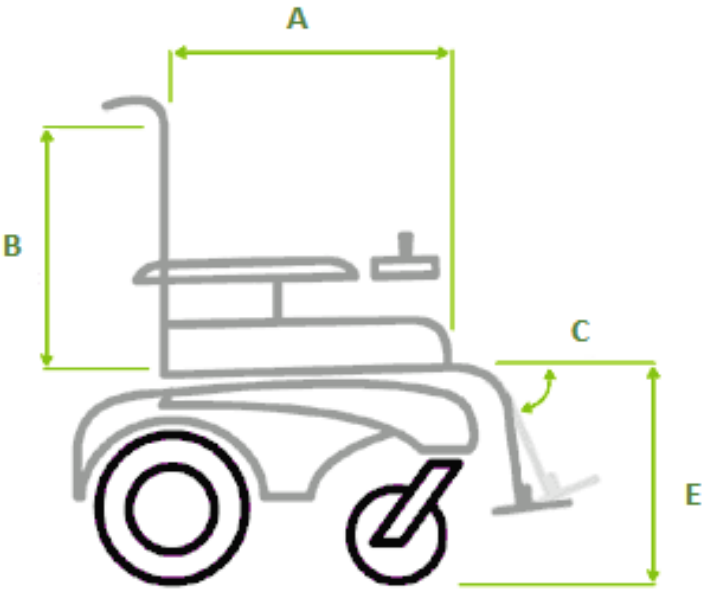

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
B-
Back Height
Measured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration.
C-
Hanger Angle
Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
D-
Seat Width
Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
E-
Front Seat to Floor
Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never footpropelled by the user - so excluding the additional two-inch footrest height for propelling is very rare.
ONE YEAR LIMITED PRODUCT WARRANTY
The one year warranty applies to the following Permobil wheelchairs:
C300 Corpus 3G
C300 Corpus II
C300 Corpus Jr
C300 Corpus PS
C300 Corpus Tilt
C350 Corpus 3G
C350 Corpus II
C350 Corpus PS
F3 Corpus
K300 PS Jr
M300 Corpus 3G
M300 Corpus HD
M300 PS Jr
M3 Corpus
M1
Permobil Inc. (“Permobil”) warrants the above-listed Permobil wheelchairs to be free from defects in material and workmanship for a period of one
year under proper use, maintenance and care according to the owner’s manual, warnings and instructions accompanying the product, with the following
specific exceptions: 1) Batteries are covered by a separate warranty provided by the battery manufacturer; 2) Any ROHO cushion included with the product is covered by a separate warranty provided by ROHO.
The express warranty set forth herein (“the Warranty”) is subject to all terms set forth herein below.
COMMENCEMENT OF WARRANTY PERIOD
The Warranty shall begin on the date the product is first delivered to the
customer, or forty (40) days from the date the product is shipped to the
dealer by Permobil, whichever comes first.
REPAIR OR REPLACEMENT
For warranty service, customers must contact the dealer from whom the
product was purchased. In the event of a defect in material or workmanship, the
dealer must obtain a return authorization (RA) number from Permobil and the
product must be shipped to a service center designated by Permobil. Permobil
will repair or, at Permobil’s option, replace any product covered by the Warranty,
subject to the terms set forth herein. See the below warranty covering spare or
replacement parts used in any of the above-listed Permobil wheelchairs.
If you do not receive satisfactory warranty service or you cannot locate
the dealer from whom the product was purchased, please call Permobil’s
Technical Service Supervisor at (800) 736-0925. Do not return products to
Permobil without Permobil’s prior written consent. Returns must be shipped
with freight pre-paid. Permobil recommends that you insure the product for
its full replacement cost when shipping.
SPARE AND REPLACEMENT PARTS WARRANTY
Permobil warrants any spare parts sold by Permobil for use in any of abovelisted Permobil wheelchairs, and any replacement parts used in a repair
performed by an authorized Permobil dealer, to be free from defects for
a period of 90-days under proper use, maintenance and care according to
the owner’s manual, warnings and instructions accompanying the product.
The warranty covering spare or replacement parts shall begin on the date
the spare or replacement part is first shipped to the customer, or the date
the part is incorporated into the product by an authorized Permobil dealer,
whichever comes first.
DISCLAIMER & LIMITATIONS OF REMEDIES
The Warranty is made in lieu of and supersedes all other warranties or
conditions, whether express, implied, collateral, statutory, common law, the
Uniform Commercial Code or otherwise, of merchantability or fitness for a
particular purpose or general use.
The Warranty covers parts only. Labor, service calls, shipping costs and other
charges incurred for the repair of the product are not included in the Warranty,
unless specifically authorized by Permobil.
The Warranty is effective only if the product is purchased from an authorized
Permobil dealer. The Warranty is available only to the initial purchaser of the
product from an authorized Permobil dealer.
Parts subject to “normal wear and tear,” including but not limited to cushions,
pads, upholstery, tires and tubes, brake pads, fuses, bulbs, and grips, are
not covered in the Warranty except as it applies to defects in material or
construction of those parts.
The Warranty will be void if the original Permobil serial number tag on the
product has been removed, altered or defaced.
The following is not intended to limit the application of any relevant consumer
protection laws. In no event shall Permobil be liable for any direct, indirect,
incidental, consequential, remote, punitive, exemplary or specific damages
resulting from any defect in this product. These include but are not limited to
any damages in the form of lost profits, loss of use, legal fees, economic loss,
personal injuries, or any other damages caused by circumstances beyond the
control of Permobil. In no event shall damages for breach of any warranty exceed
the original cost of the product.
The use or installation of non-Permobil issued equipment or parts, or the
repair or replacement of parts by anyone other than an authorized Permobil
dealer, may void the Warranty.
The Warranty is contingent upon the proper use, maintenance and care of the
product. The Warranty may be void if the product has been used in a manner
contradictory or in violation of the terms of the owner’s manual, warnings or
instructions accompanying the product, including but not limited to exceeding
the maximum weight limit of the product, or using the product with tie downs
or locking, clamping, or other restraint systems. The Warranty may also be
void if the product has been repaired or any part replaced by persons other
than Permobil or an authorized Permobil dealer.
The addition of equipment or features to the product that are not manufactured
or recommended by Permobil could affect the intended function of the
Permobil product, and therefore may void the Warranty.
Permobil cannot guarantee the continued performance or safety of the product
if it is subject to acts of God or Nature, including but not limited to water,
floods, wind, tornado, earthquake or fire, or involved in automobile accidents or
extraordinary impact events, such as dropping or crushing. Such extraordinary
events to products covered by this Warranty may create considerable damage
that may be imperceptible to an inspection. Any damages caused by these types
of events are not covered by the Warranty.
The exclusion and limitations to the Warranty apply to the maximum extent
permitted by law and unless restricted or prohibited by law. The laws of your
jurisdiction may restrict or prohibit some of the restrictions in the Warranty,
in which case such restrictions do not apply to you. Where any term of this
Warranty is prohibited by applicable law, it shall be null and void, but the
remainder of this Warranty shall remain in effect.
AMENDMENTS
No person is authorized to alter, extend or waive the Warranty of Permobil.
