Onyx Mount - durable, compact option with basic adjustability and pediatric and adult sizes at an outstanding value

ONYX is a compact mounting solution that features a black chrome finish combined with a small profile 7/8" steel rod. It was designed for rigorous applications, ease of adjustment, and simple modifications.
SPECIAL CONSIDERATIONS:
• Rotate horizontal rod 180° for increased pad
angle adjustment.
• Rearward off-set vertical rod available for users
with thinner backs.
• Square vertical rod interface available.Material: Steel
Finish: Black chrome platedProfile/Size: 7/16" Rod

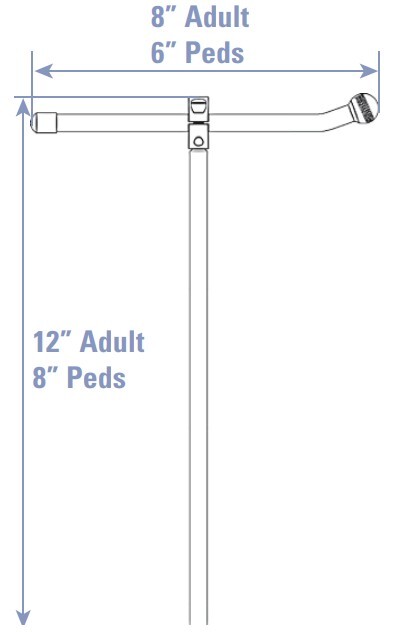

Adult: 8" horizontal rod & 12" vertical rod
Pediatric: 6" horizontal rod & 8" vertical rodAdjustment Point: Fixed collar clamp at
vertical/horizontal rod interface.
Measurement changes when applying base plates:
add 1 3/4” for S.O.F.T. base plate
add 1 1/4” for SSOMounting Brackets:
Detachable: M2100
Swingaway: M5100
Material: Aluminum extrusion
Finish: Black anodized


-

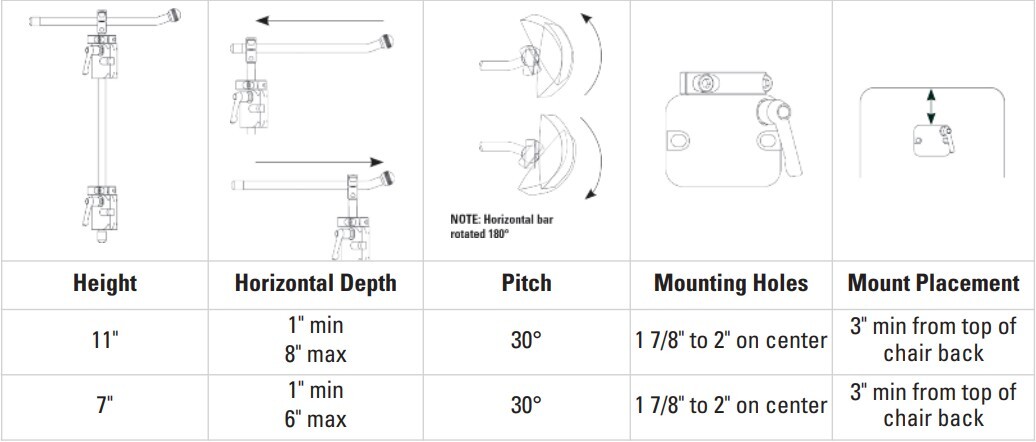

Size Chart / measuring guide
