Description

Cobra Mount - sleek, curved, and modular design with superior positioning capabilities, sizes ranging from early intervention to adult, and flip back function

The COBRA Mounting System incorporates a sleek and unobtrusive design that eliminates protrusion toward the rear of the chair. With a superior strength and positioning range, the COBRA is available in three sizes. The components are modular and easily changed in the field to enable exact positioning of the support pad, even if the user’s head position changes over time.
SPECIAL CONSIDERATIONS:
• All COBRA Mounting Systems are shipped
with a detachable mounting bracket.
• The top of the COBRA vertical rod has an
adjustable, locking rotator assembly to allow
rotational adjustment as well as front-to-rear
adjustment of the shepherd’s crook-shaped forward adjustment rod (neck).
• Low profile design does not impede access
from behindMaterial: Aluminum
Finish: Black AnodizedProfile Size: 1/2" X 7/8" bar and 1/2" rod
Early Intervention: 2 3/4" neck, 6 1/2" vertical rod
Pediatric: 4 1/2" neck, 9 1/4" vertical rod
Adult: 5 1/2" neck, 9 1/4" vertical rodAdjustment Point: Two point adjustable, locking rotator assembly at intersection of vertical rod and neck plus one point adjustment at pad interface bracket
Mounting Brackets:
Detachable mounting bracket included with all COBRA Mounting Systems
Material: Aluminum extrusion
Finish: Black anodized


-

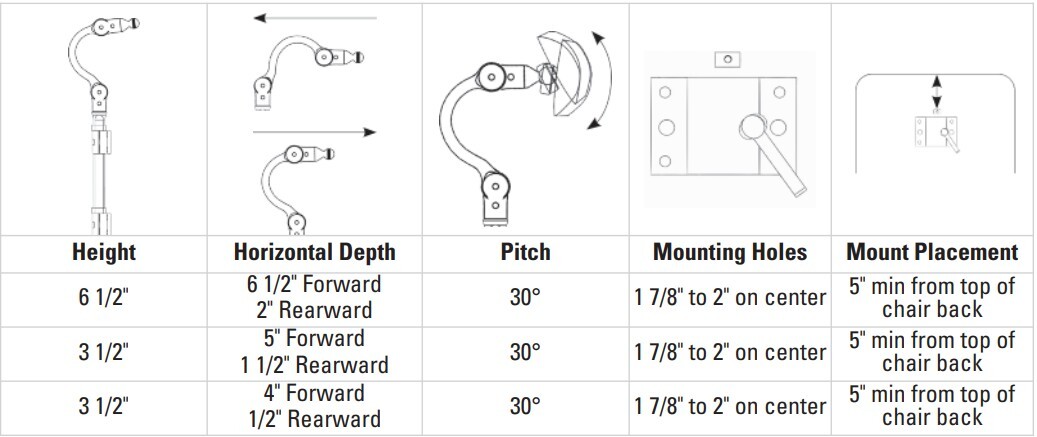

Size Chart / measuring guide
