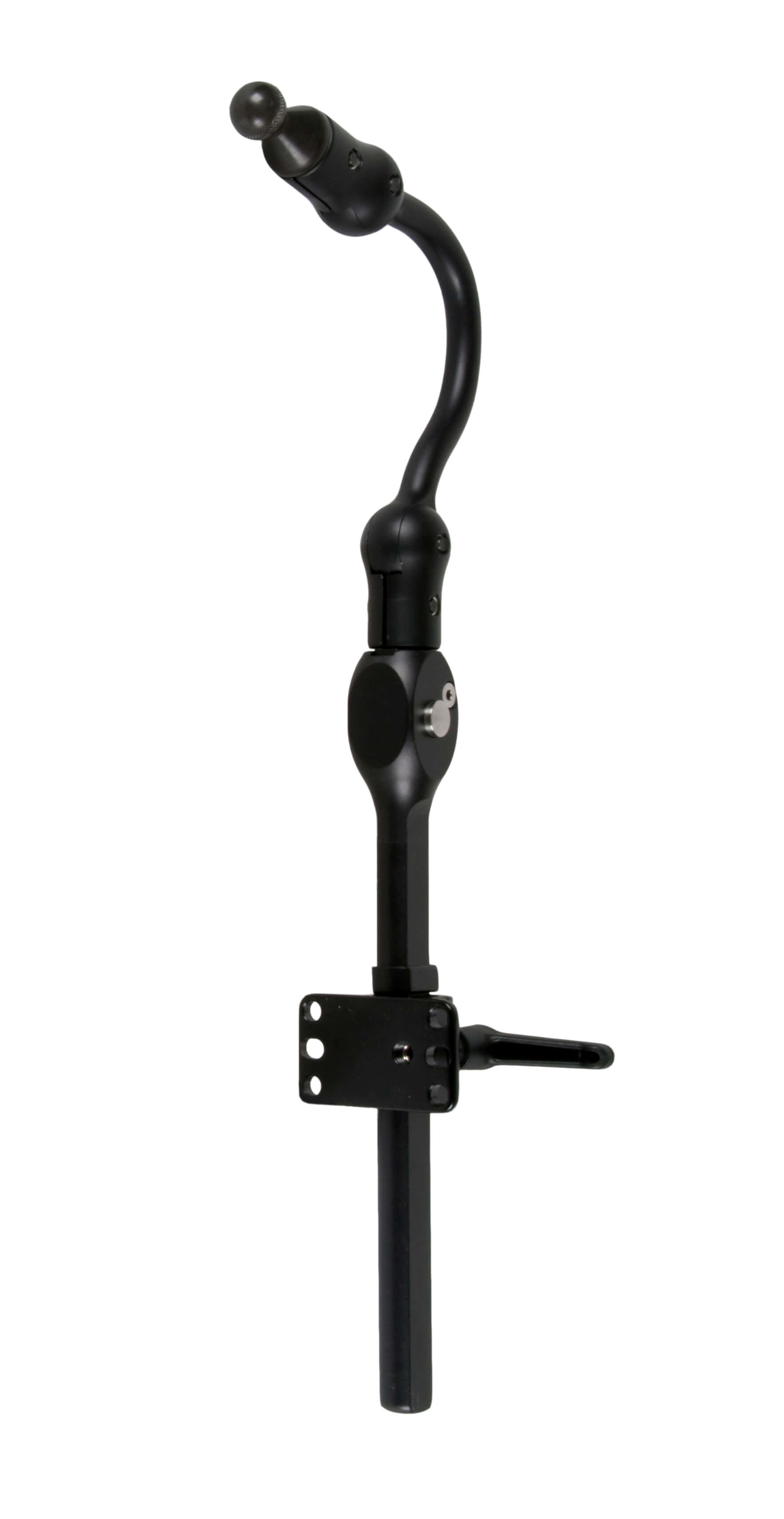

Whitmyer Cobra Flip Back Headrest Mounting Hardware

Cobra Xtra Flip Back Mount - sleek, curved, and modular design with superior positioning capabilities, sizes ranging from early intervention to adult, and flip back function

The COBRA Flip-Back is operated by a single push-button on the side of the bracket and neatly flips the assembly back behind the wheelchair back. With superior strength and positioning range, the COBRA Flip-Back is available in three sizes. The components are modular and easily changed in the field to enable exact positioning of the support pad, even if the user’s head position changes over time

SPECIAL CONSIDERATIONS:
• All COBRA Flip-Back Mounting Systems are
shipped with a detachable mounting bracket.
• The top of the COBRA vertical rod has an
adjustable, locking rotator assembly to allow
rotational adjustment as well as front-to-rear
adjustment of the shepherd’s crook-shaped
forward adjustment rod (neck).
• Low profile design does not impede access from
behind.

Material: Aluminum
Finish: Black Anodized

Profile Size: 1/2" X 7/8" bar and 1/2" rod
Early Intervention: 2 3/4" neck, 11" vertical rod
Pediatric: 4 1/2" neck, 11" vertical rod
Adult: 5 1/2" neck, 11" vertical Rod

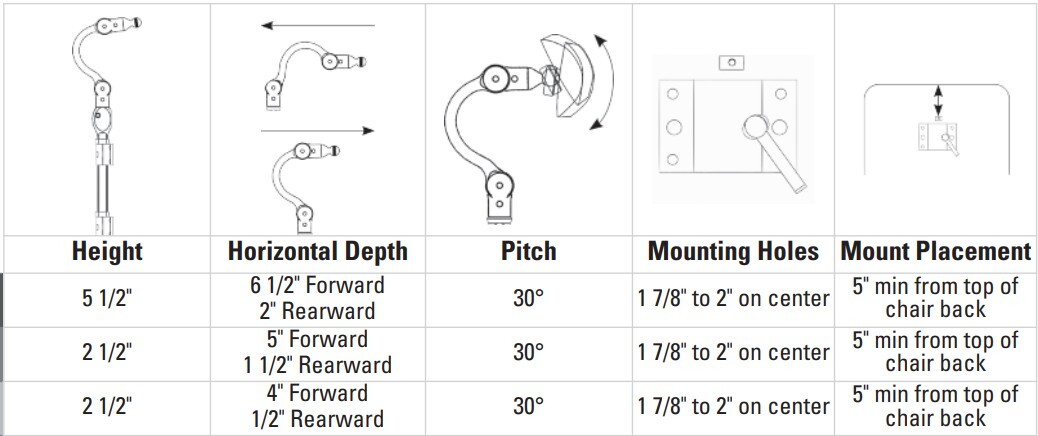

Adjustment Point:
Two point adjustable, locking rotator assembly at intersection of vertical rod and neck plus one point adjustment at pad interface bracket

Mounting Brackets:
Detachable mounting bracket included with all COBRA Flip-Back Mounting Systems
Material: Aluminum extrusion
Finish: Black anodized
